Heater Inlet Hose Replacement
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

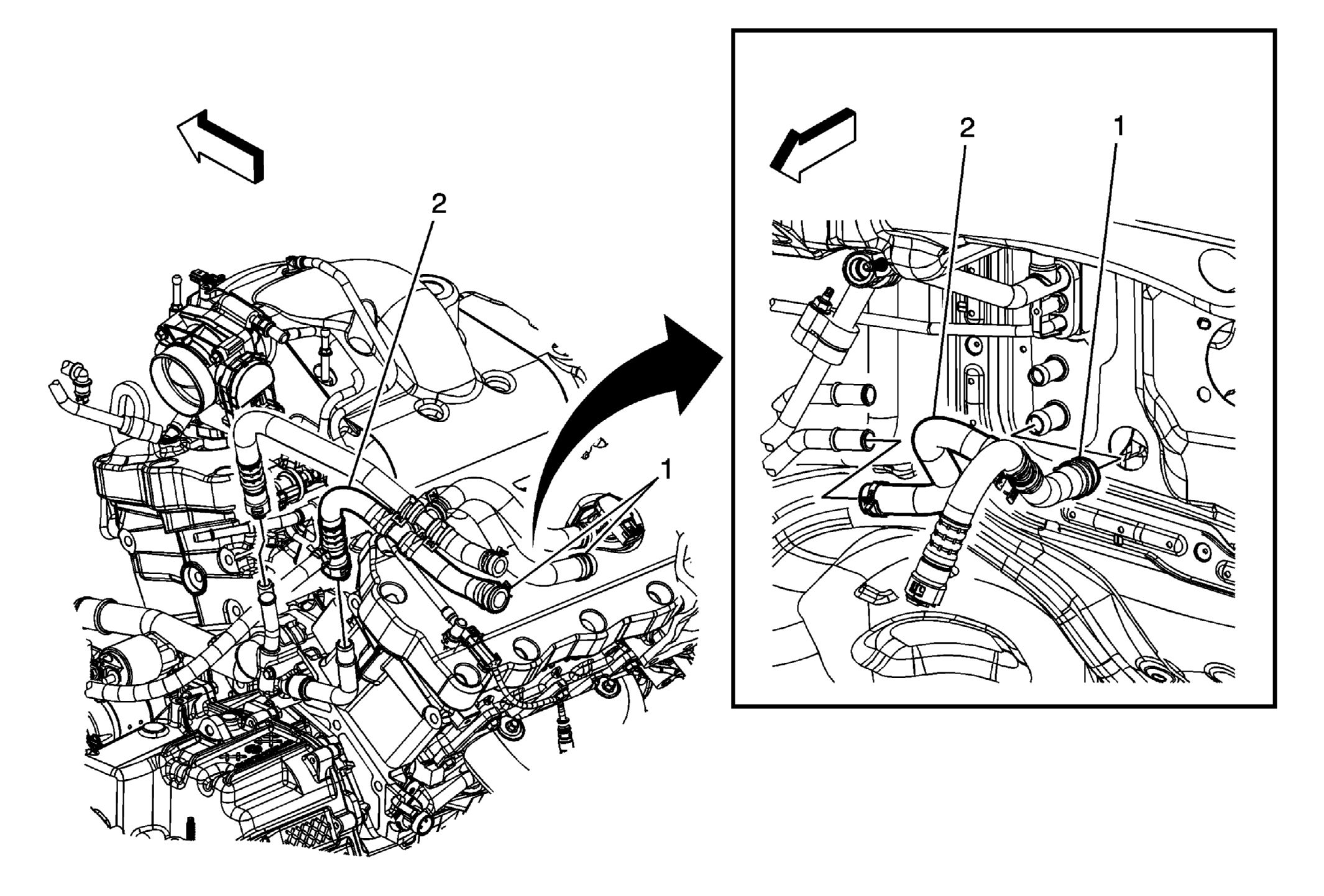

| Callout | Component Name |
|---|---|
| Preliminary Procedure Drain the coolant. Refer to Cooling System Draining and Filling (Static Fill)Cooling System Draining and Filling (Vac N Fill) |
|
| 1 | Heater Inlet Hose Clamp (Qty: 3) |
| 2 | Heater Inlet Hose Procedure Disconnect the heater inlet hose from the auxiliary heater pipe, if equipped. |
