Auxiliary Heater Core Tube Replacement
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

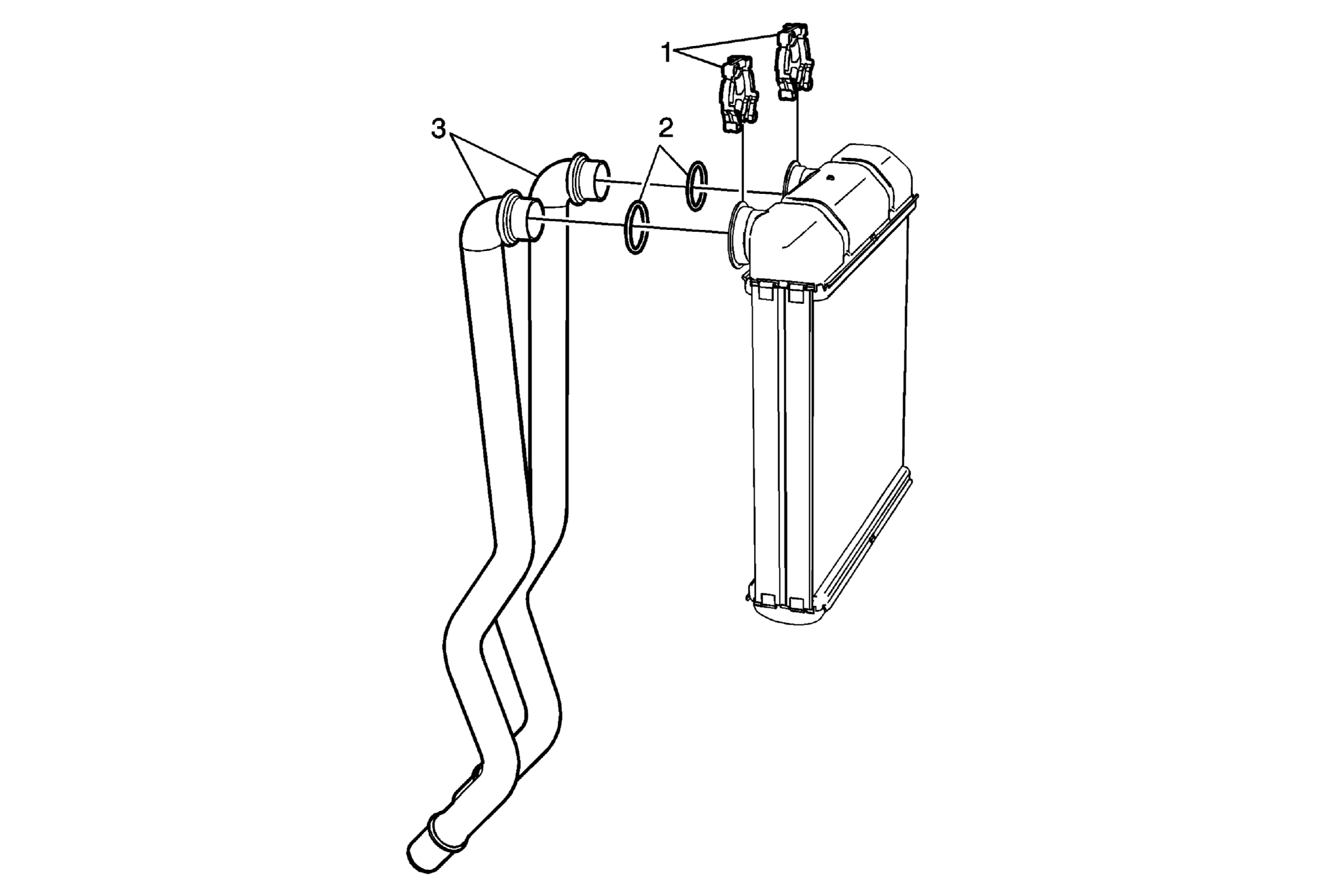

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the auxiliary heater core. Refer to Auxiliary Heater Core Replacement . |
|
| 1 | Heater Core Tube Clip (Qty: 2) Procedure Expand the retaining clips outward to aid in removal. |
| 2 | Heater Core Tube O-rings (Qty: 2) TIP: Do not reuse O-rings |
| 3 | Heater Core Tube |
