Air Inlet Screen Cleaning

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

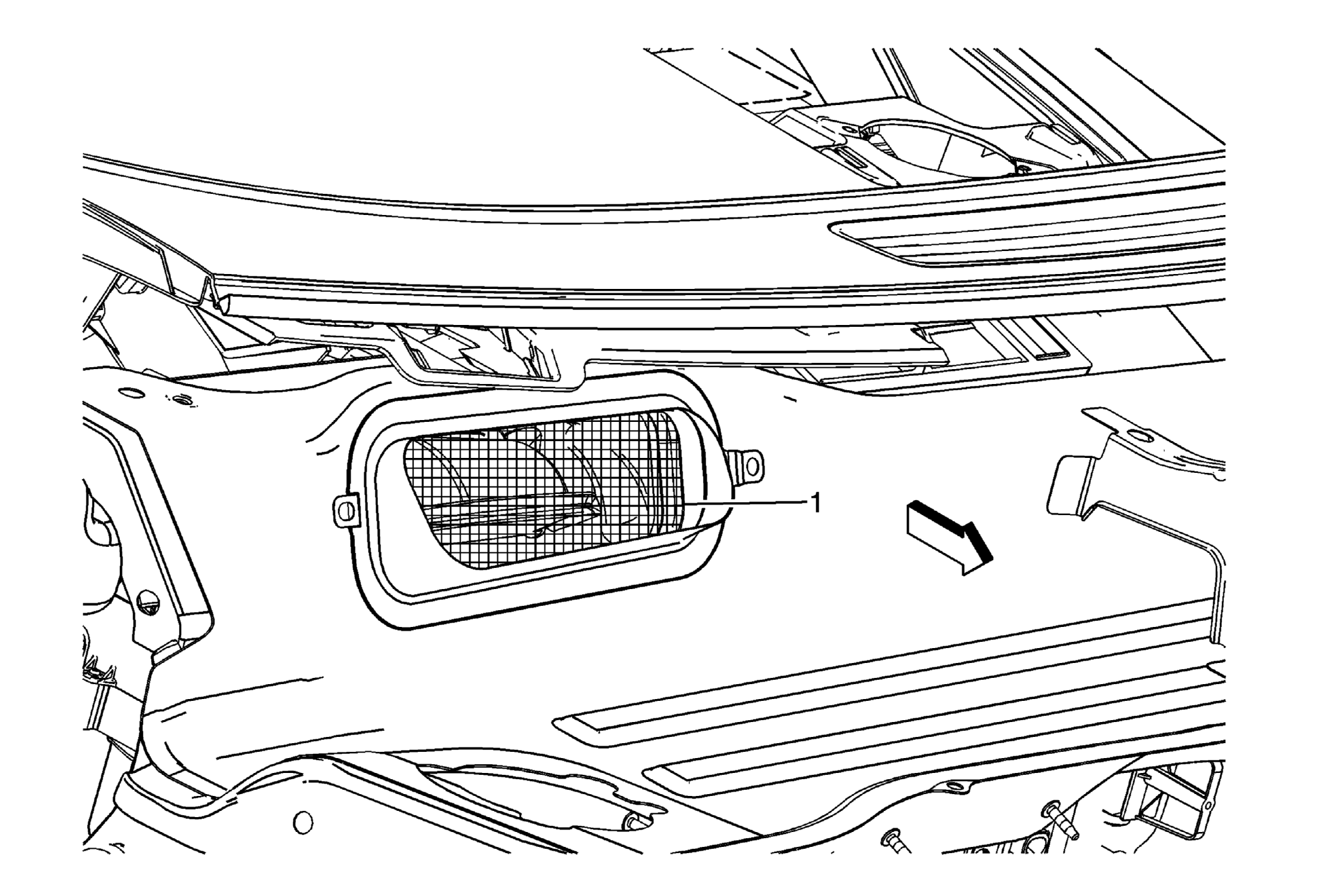

Fig 1: Identifying Air Inlet Screen

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement . Remove the remote battery ground stud. Remove the underhood electrical center cover. Reposition any wiring or hoses to gain access to air inlet screen.
1	Air Inlet Screen Procedure Lift the air inlet grille panel enough to access the air inlet screen. Use shop vacuum to remove any debris from the air inlet screen.

Callout

Component Name

Preliminary Procedures

Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
Remove the remote battery ground stud.
Remove the underhood electrical center cover.
Reposition any wiring or hoses to gain access to air inlet screen.

Air Inlet Screen

Procedure

Lift the air inlet grille panel enough to access the air inlet screen.
Use shop vacuum to remove any debris from the air inlet screen.
