Air Conditioning Evaporator and Blower Module Drain Hose Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

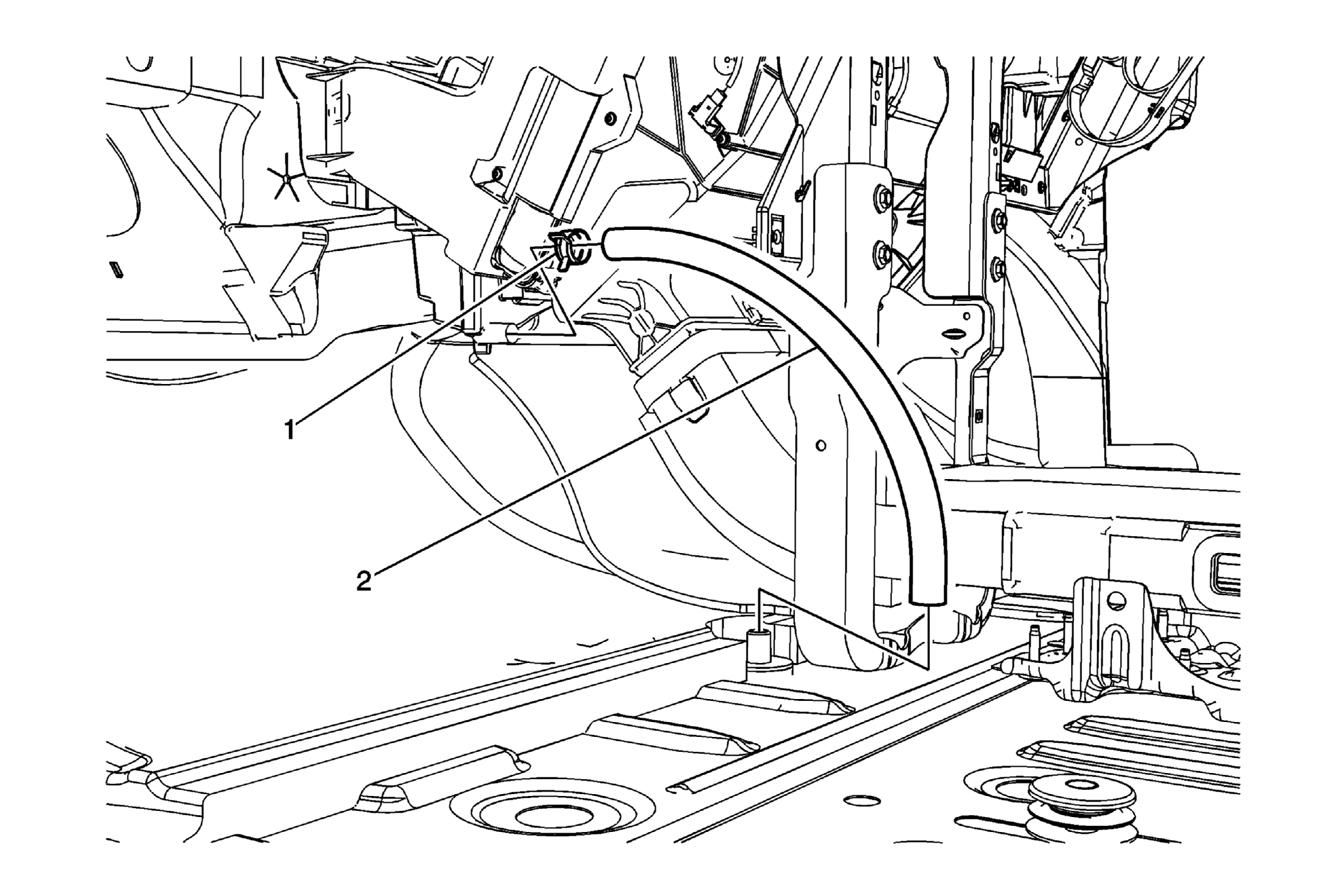

Fig 1: View Of Air Conditioning Evaporator & Blower Module Drain Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
CAUTION: Refer to HVAC Module Drain Tube Caution . Preliminary Procedure Remove the left front floor console extension panel. Reposition carpet and pad from evaporator drain hose area.
1	Evaporator Drain Hose Clamp
2	Evaporator Drain Hose

Callout

Component Name

CAUTION:

Refer to HVAC Module Drain Tube Caution .

Preliminary Procedure

Remove the left front floor console extension panel.
Reposition carpet and pad from evaporator drain hose area.

Evaporator Drain Hose Clamp

Evaporator Drain Hose
