Air Conditioning Evaporator Thermal Expansion Valve Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

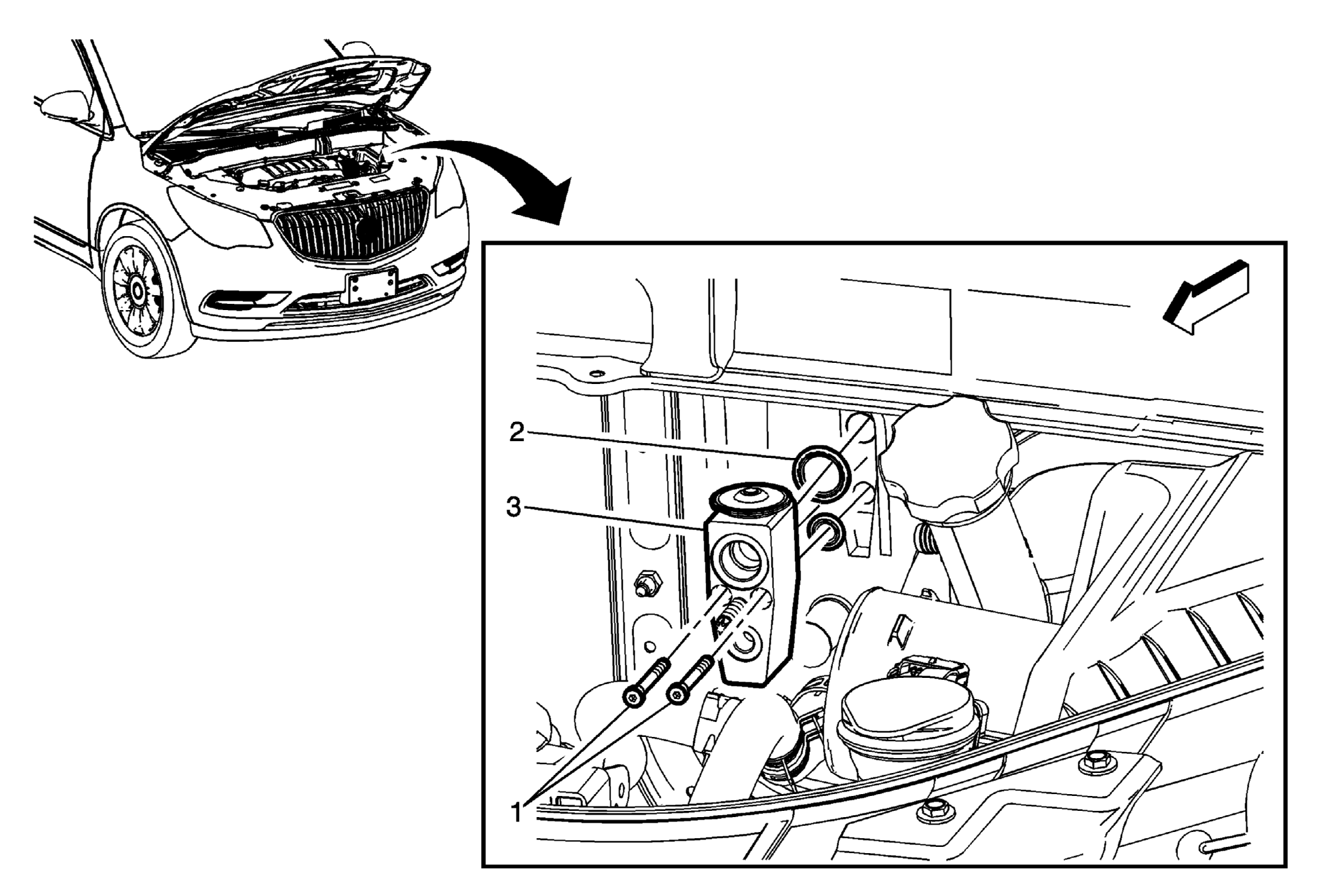

Fig 1: Air Conditioning Evaporator Thermal Expansion Valve
GM2889452Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Recover the refrigerant from the air conditioning system. Refer to Refrigerant Recovery and Recharging .
  2. Remove the air conditioning refrigerant heat exchanger from the air conditioning evaporator thermal expansion valve. Refer to Air Conditioning Refrigerant Heat Exchanger Replacement .
  3. Reposition the power brake booster vacuum and position hose out of the way. Refer to Power Brake Booster Vacuum Check Valve and Hose Replacement .
1 Thermal Expansion Valve Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Sealing Washer (Qty: 2)
NOTE:

Remove and discard the sealing washers and replace with NEW sealing washers. Refer to Air Conditioning System Seal Replacement .
3 Air Conditioning Evaporator Thermal Expansion Valve
