Air Conditioning Condenser Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

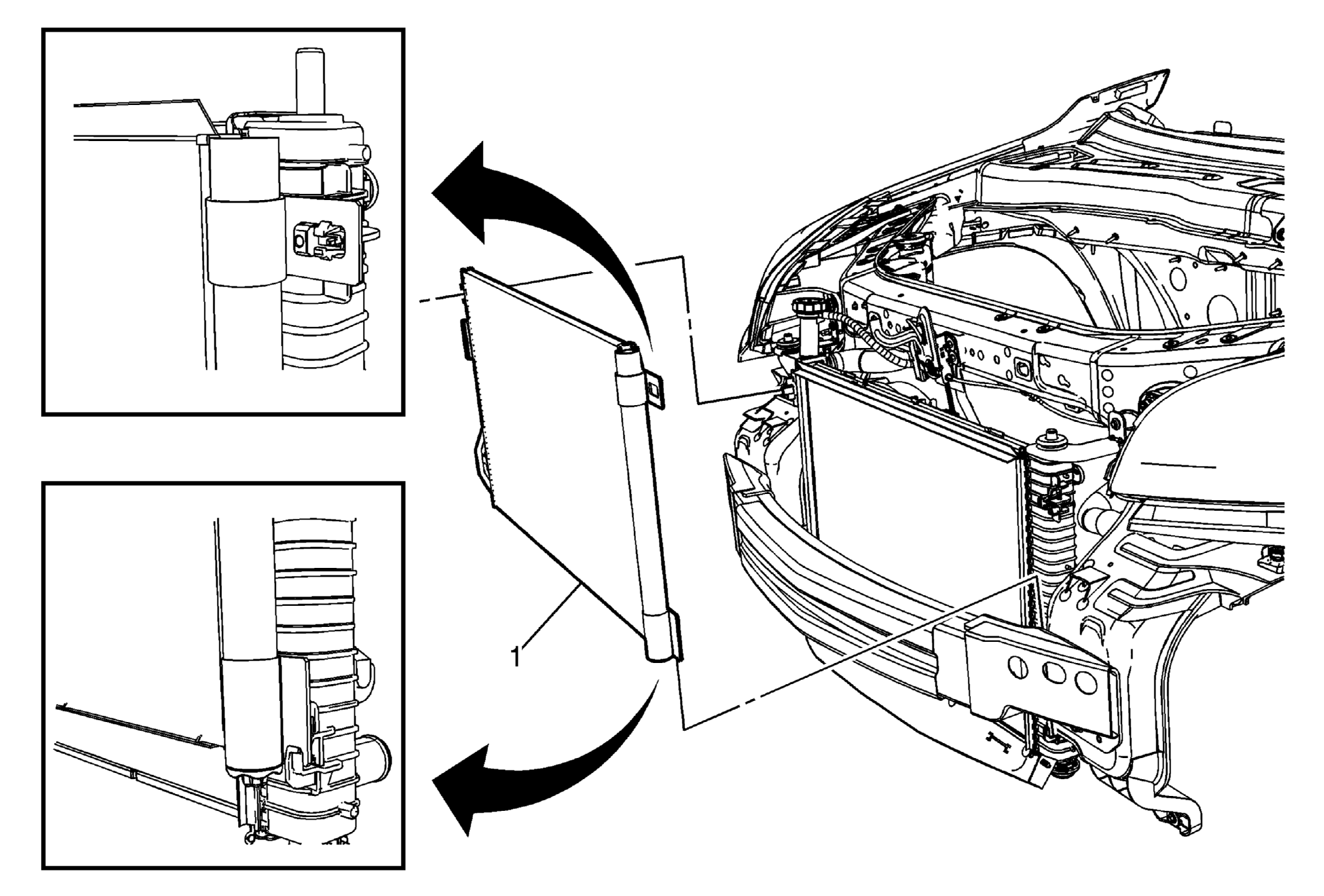

Fig 1: View Of Condenser

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Recover the refrigerant from the air conditioning system. Refer to Refrigerant Recovery and Recharging . Remove the air conditioning refrigerant heat exchanger from the condenser. Refer to Air Conditioning Refrigerant Heat Exchanger Replacement . Pinch fastening tabs together at top of condenser and slide upward to remove.
1	Condenser Assembly NOTE: Bottom of condenser mounts into holding fixtures at bottom of radiator.

Callout

Component Name

Preliminary Procedure

Recover the refrigerant from the air conditioning system. Refer to Refrigerant Recovery and Recharging .
Remove the air conditioning refrigerant heat exchanger from the condenser. Refer to Air Conditioning Refrigerant Heat Exchanger Replacement .
Pinch fastening tabs together at top of condenser and slide upward to remove.

Condenser Assembly

NOTE:

Bottom of condenser mounts into holding fixtures at bottom of radiator.
