Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

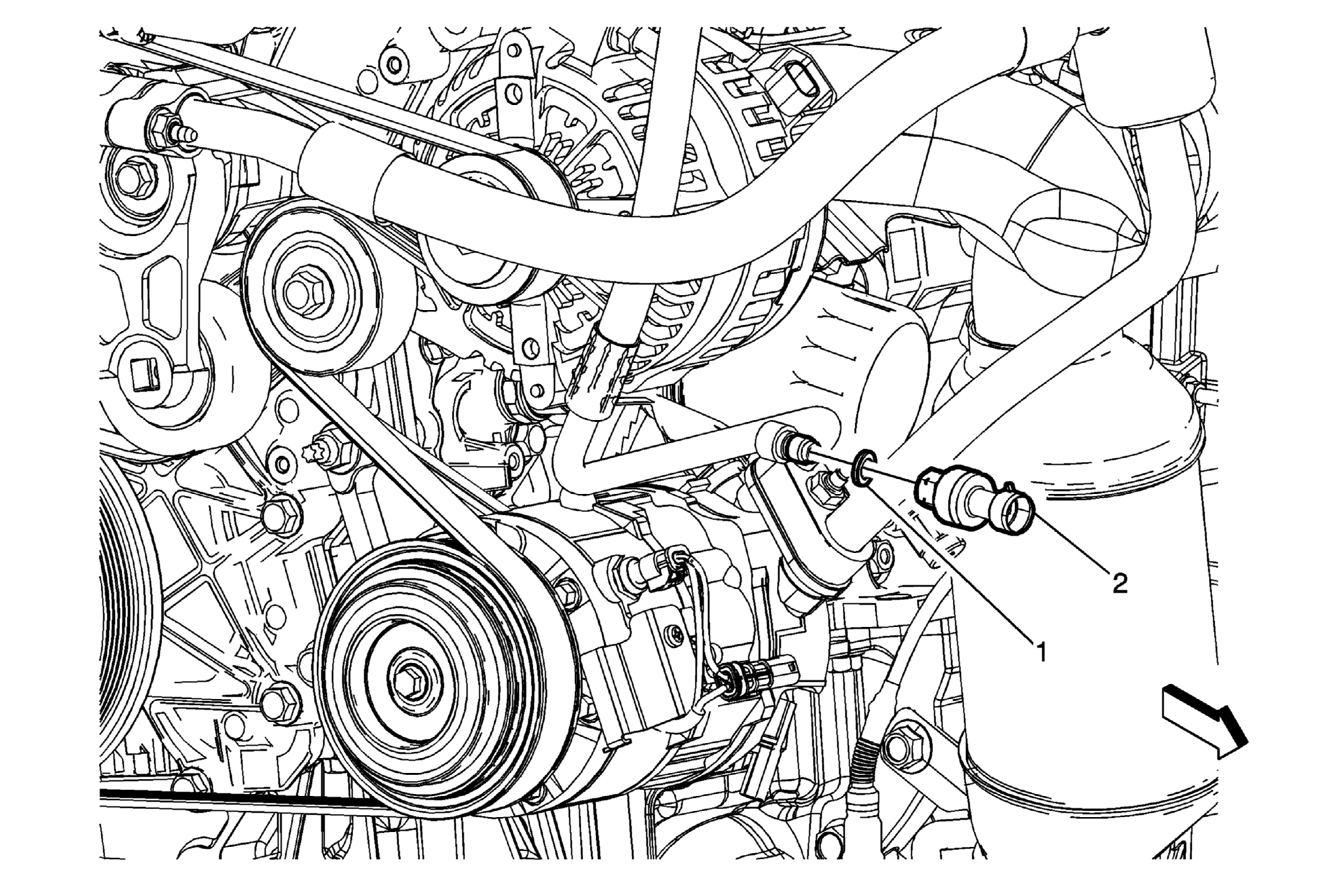

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the electrical connector from the air conditioning refrigerant pressure sensor. |
|
| 1 | Air Conditioning Refrigerant Pressure Sensor O-ring Procedure Remove and discard the old O-ring and replace with a NEW O-ring. Refer to Air Conditioning O-Ring Seal Replacement . |
| 2 | Air Conditioning Refrigerant Pressure Sensor
CAUTION:
Refer to Fastener Caution . |
