Duct Air Temperature Sensor Replacement - Upper Right Side

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

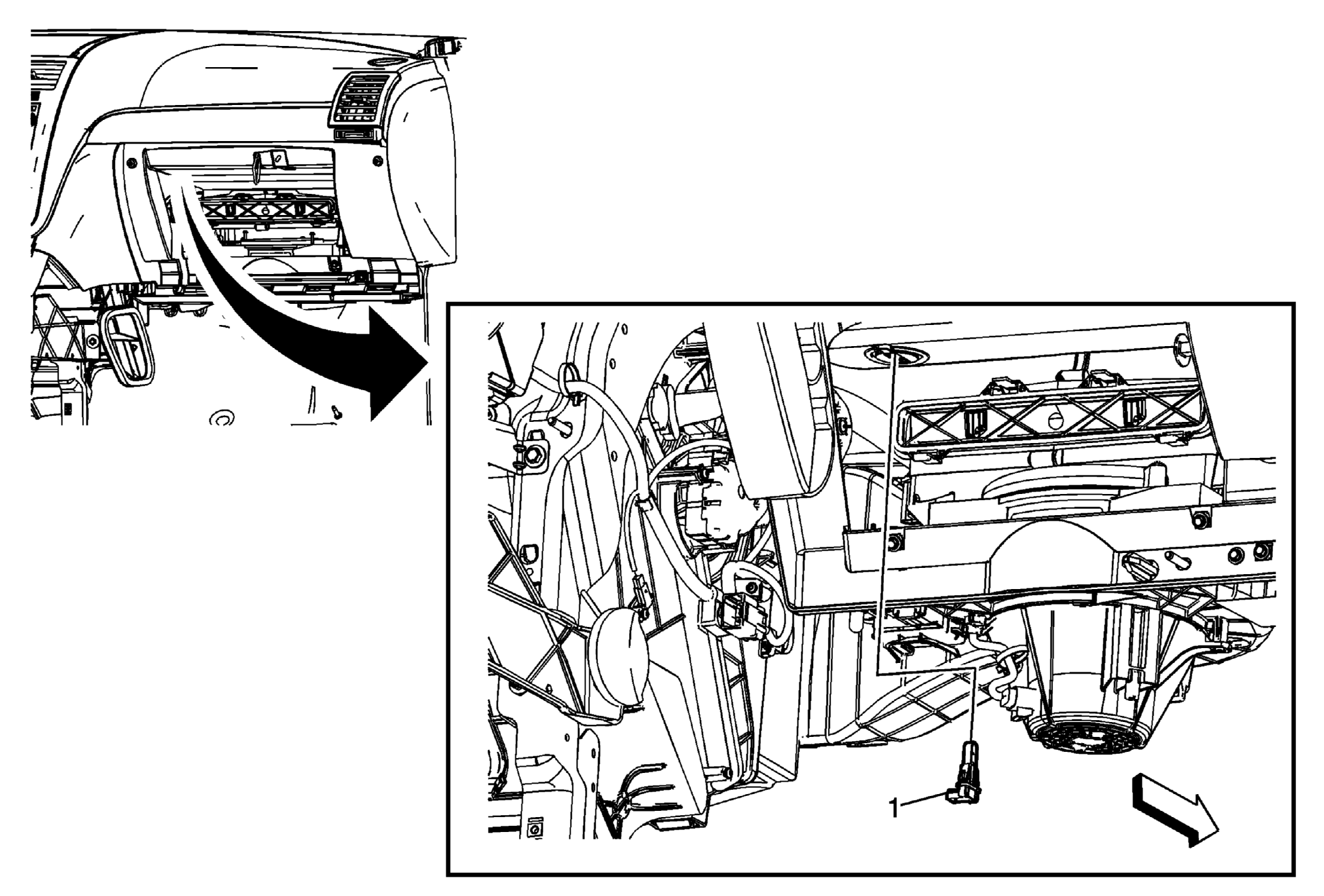

Fig 1: Duct Air Temperature Sensor - Upper Right Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the I/P compartment. Refer to Instrument Panel Compartment Replacement (Acadia)Instrument Panel Compartment Replacement (Enclave)Instrument Panel Compartment Replacement (Traverse) .
1	Air Temperature Sensor- Upper Right Procedure Disconnect the electrical connector. Grasp and pull sensor straight downward from air duct.

Callout

Component Name

Preliminary Procedure
Remove the I/P compartment. Refer to Instrument Panel Compartment Replacement (Acadia)Instrument Panel Compartment Replacement (Enclave)Instrument Panel Compartment Replacement (Traverse) .

Air Temperature Sensor- Upper Right

Procedure

Disconnect the electrical connector.
Grasp and pull sensor straight downward from air duct.
