Duct Air Temperature Sensor Replacement - Lower Left Side

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

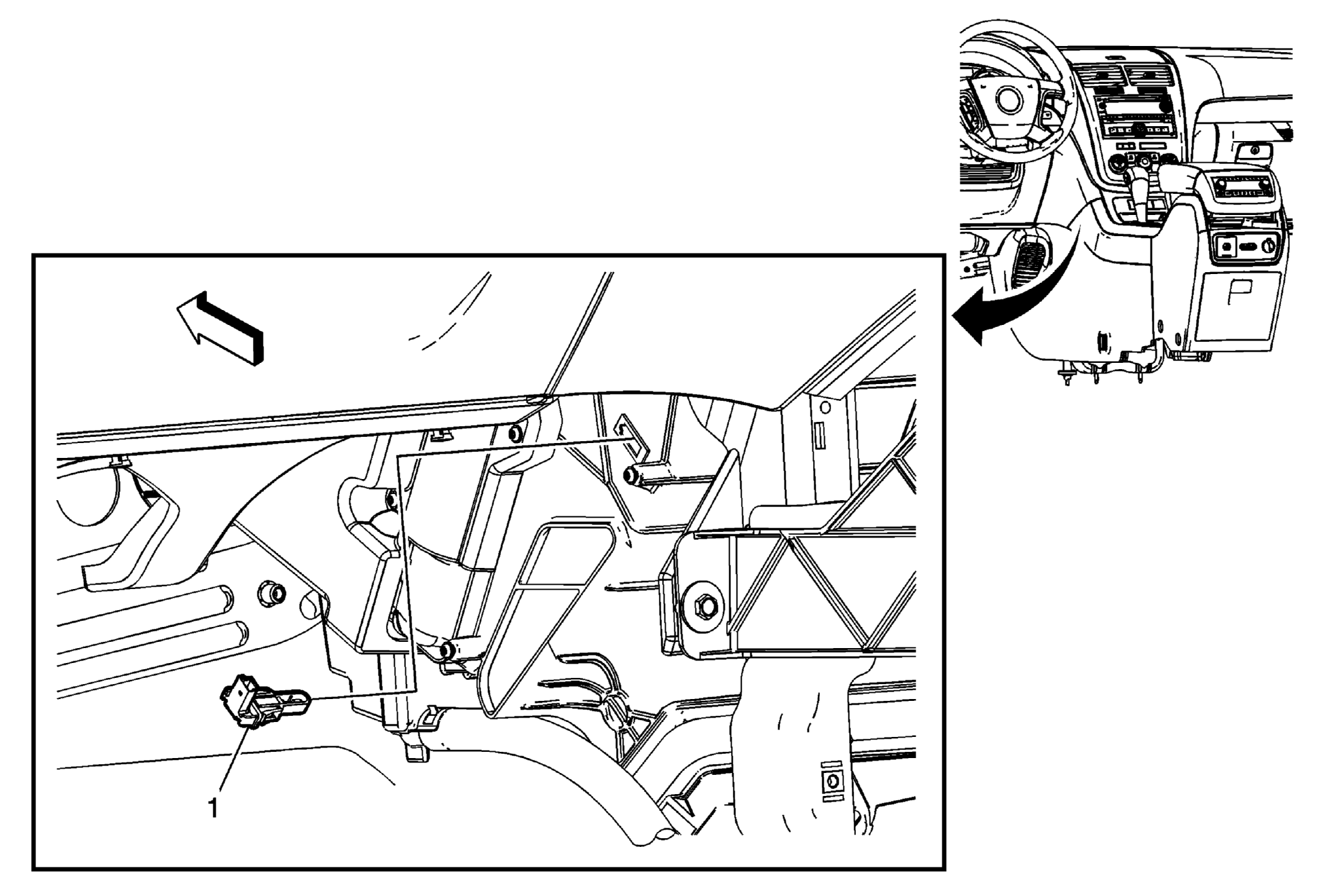

Fig 1: Duct Air Temperature Sensor - Lower Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console extension panel- left side. Refer to Front Floor Console Extension Panel Replacement - Left Side (Acadia)Front Floor Console Extension Panel Replacement - Left Side (Enclave)Front Floor Console Extension Panel Replacement - Left Side (Traverse) .
1	Air Temperature Sensor- Lower Left Procedure Disconnect the electrical connector. Grasp and pull sensor straight outward from HVAC case.

Callout

Component Name

Preliminary Procedure
Remove the front floor console extension panel- left side. Refer to Front Floor Console Extension Panel Replacement - Left Side (Acadia)Front Floor Console Extension Panel Replacement - Left Side (Enclave)Front Floor Console Extension Panel Replacement - Left Side (Traverse) .

Air Temperature Sensor- Lower Left

Procedure

Disconnect the electrical connector.
Grasp and pull sensor straight outward from HVAC case.
