Ambient Air Temperature Sensor Replacement (Acadia)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

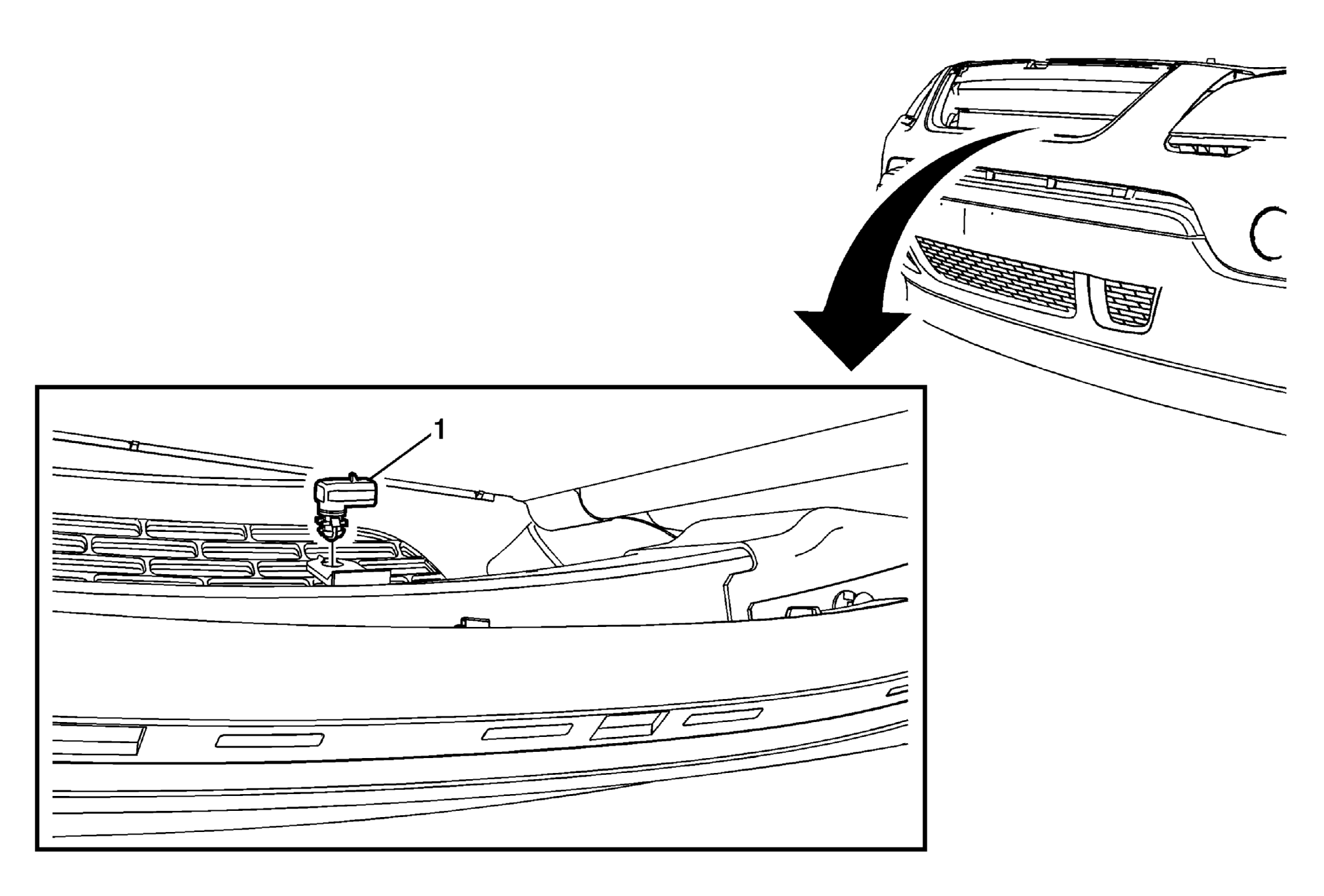

Fig 1: Ambient Air Temperature Sensor (Acadia)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front radiator grill. Refer to Front Grille Replacement (Acadia)
1	Ambient Air Temperature Sensor Procedure Disconnect the ambient air sensor harness connector. Rotate the sensor counter clockwise in order to remove the sensor from the bracket.

Callout

Component Name

Preliminary Procedure
Remove the front radiator grill. Refer to Front Grille Replacement (Acadia)

Ambient Air Temperature Sensor

Procedure

Disconnect the ambient air sensor harness connector.
Rotate the sensor counter clockwise in order to remove the sensor from the bracket.
