Rear Side Door Lower Rear Auxiliary Sealing Strip Replacement
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

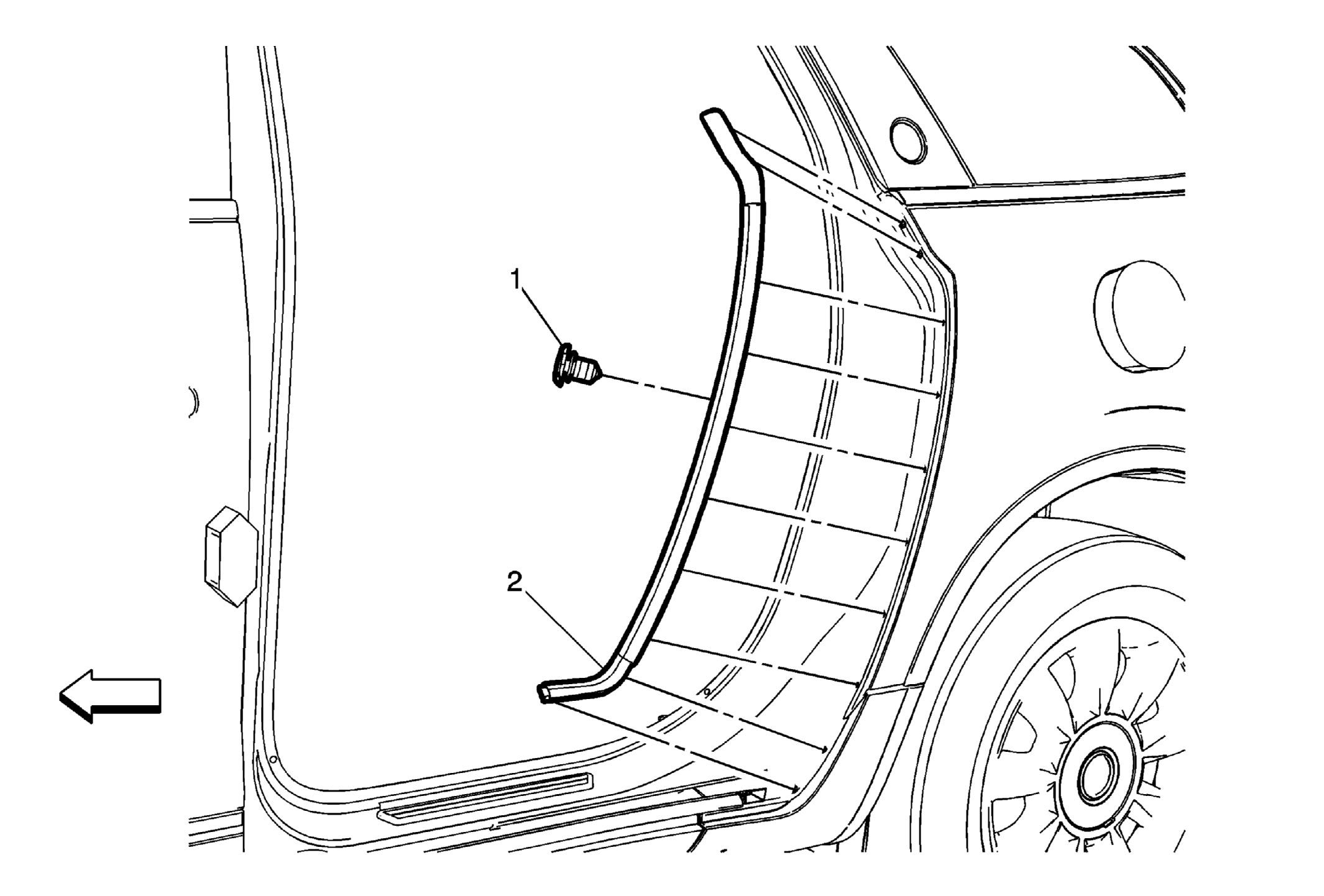

| Callout | Component Name |
|---|---|
| Preliminary Procedure Loosen the front and rear side door lower weatherstrip. Refer to Front or Rear Side Door Lower Weatherstrip Replacement . |
|
| 1 | Rear Side Door Lower Rear Auxiliary Weatherstrip Retainer (Qty: 10) Procedure Place the door in the full open position to service the weatherstrip.
NOTE:
With a suitable trim release tool, release the retainers securing the weatherstrip to the front and rear rocker panel molding. |
| 2 | Rear Side Door Lower Rear Auxiliary Weatherstrip |
