Front Side Door Weatherstrip Replacement
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

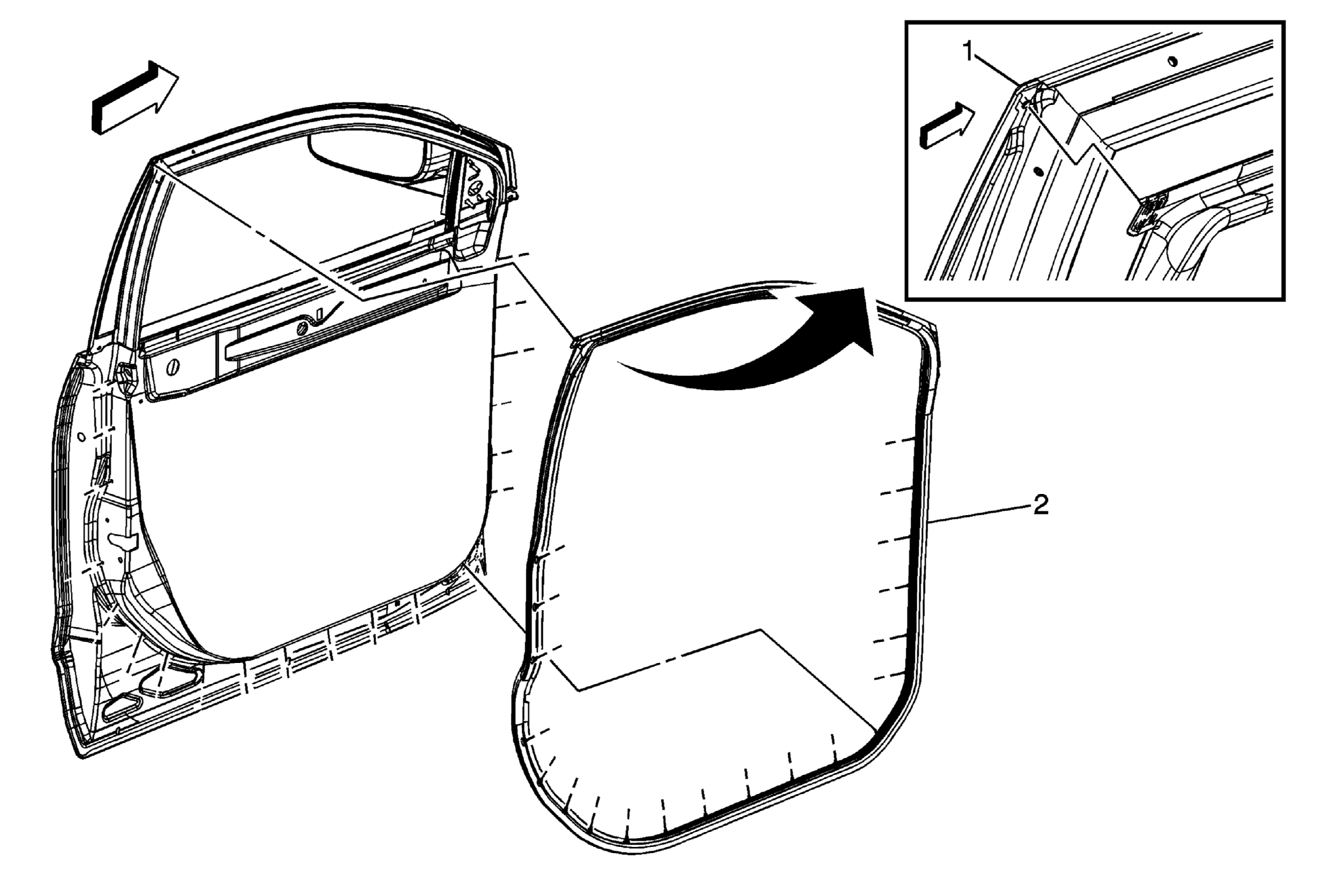

| Callout |
Component Name |
| 1 |
Front Side Door Weatherstrip Cap
NOTE:
Lift upward on the weatherstrip to release from door frame.
|
| 2 |
Front Side Door Weatherstrip
NOTE:
Using a flat-bladed tool, release the weatherstrip retainering clips located around the doors edge.
|
