Front Side Door Upper Hinge and Lower Hinge Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

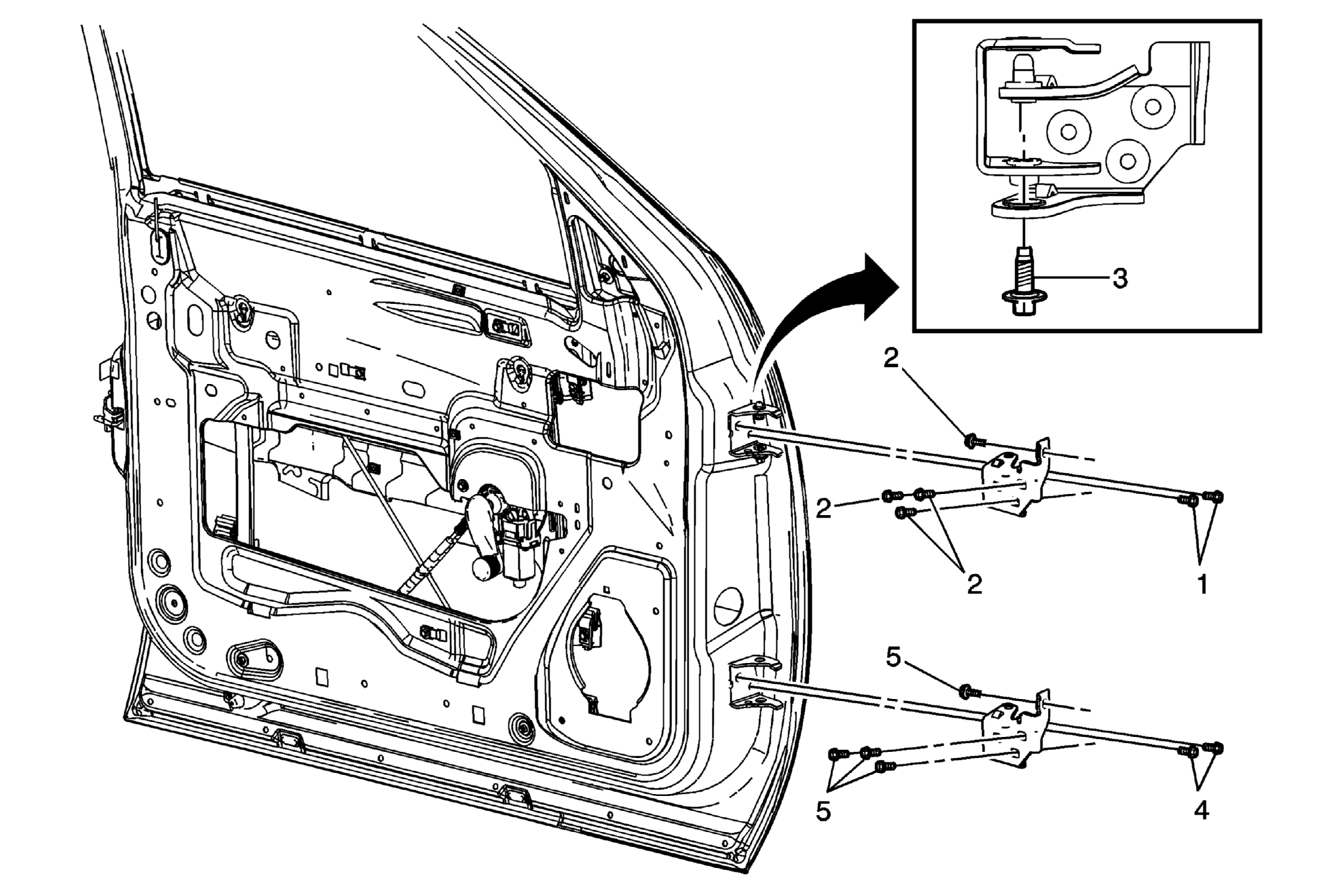

Fig 1: Front Side Door Upper Hinge And Lower Hinge

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedures Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling . Remove the front side door. Refer to Front Side Door Replacement .
1	Front Side Door Hinge Upper Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . NOTE: Replace only one hinge at a time. Tighten 25 N.m (18 lb ft)
2	Front Side Door Hinge Upper Bolt (Qty: 2) Tighten 25 N.m(18 lb ft)
3	Front Side Door Hinge Lower Bolt NOTE: After installation of the replacement upper hinge, from the underside of the hinge, remove the temporary keeper pivot bolt and replace with longer permanent bolt. Tighten 25 N.m (18 lb ft)
4	Front Side Door Hinge Lower Bolt (Qty: 2) Tighten 25 N.m (18 lb ft)
5	Front Side Door Hinge Lower Bolt (Qty: 2) NOTE: Check the door for proper alignment, then adjust as necessary. Tighten 25 N.m (18 lb ft)
