Coolant Recovery Reservoir Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

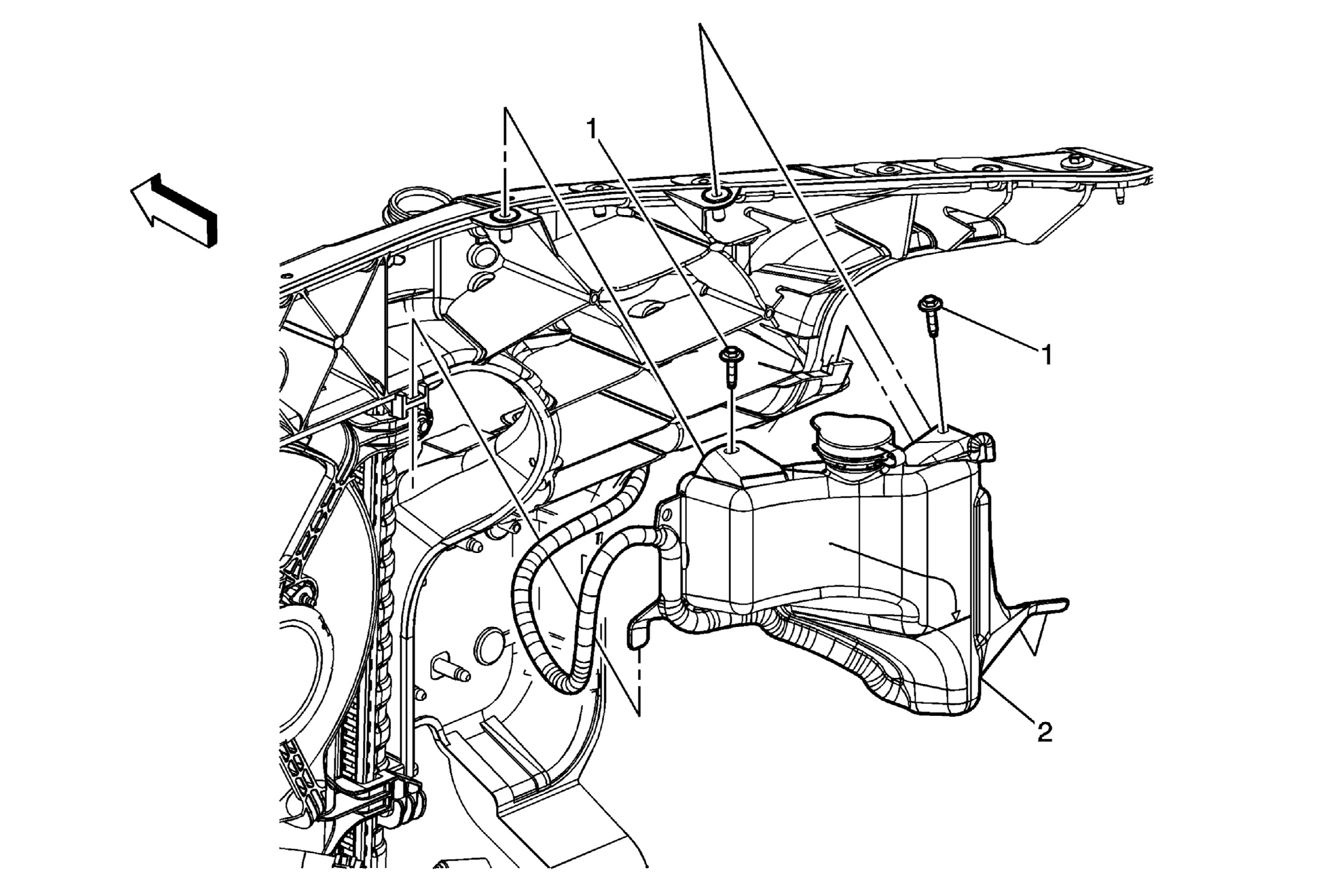

Fig 1: View Of Coolant Recovery Reservoir

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Drain the coolant from the recovery reservoir. Remove the front compartment sight shield if necessary. Refer to Front Compartment Front Sight Shield Replacement (Enclave)Front Compartment Front Sight Shield Replacement (Traverse)Front Compartment Front Sight Shield Replacement (Acadia) .
1	Coolant Recovery Reservoir Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
2	Coolant Recovery Reservoir Procedure Remove the overflow hose from the reservoir.

Callout

Component Name

Preliminary Procedures

Drain the coolant from the recovery reservoir.
Remove the front compartment sight shield if necessary. Refer to Front Compartment Front Sight Shield Replacement (Enclave)Front Compartment Front Sight Shield Replacement (Traverse)Front Compartment Front Sight Shield Replacement (Acadia) .

Coolant Recovery Reservoir Bolt (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
5 N.m (44 lb in)

Coolant Recovery Reservoir
Procedure
Remove the overflow hose from the reservoir.
