Transfer Case Vent Hose Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

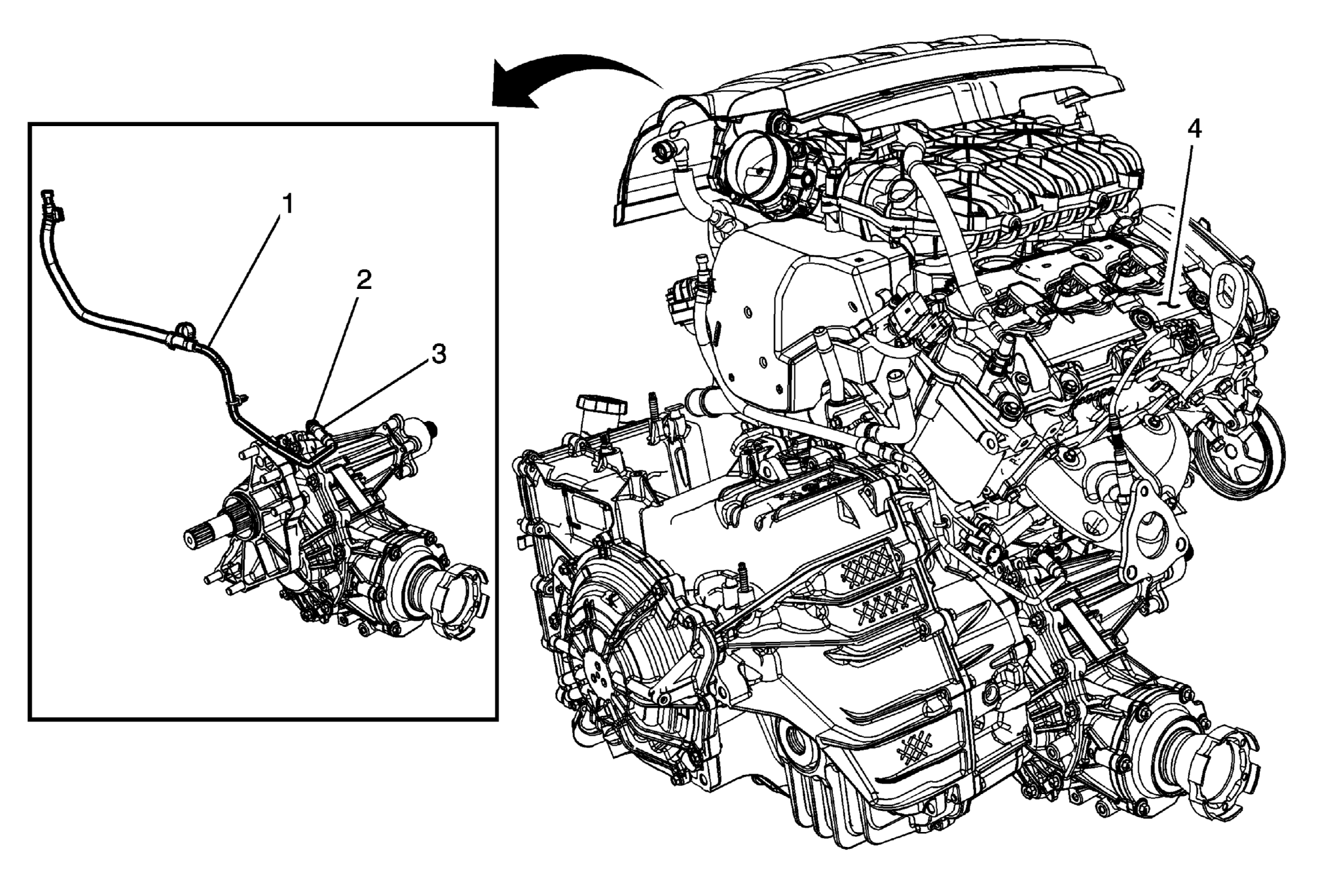

Fig 1: Transfer Case Vent Hose
GM2408239Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Transfer Case Vent Hose
2 Transfer Case Vent Nipple
3 Hose Clamp
4 Engine Assembly

Procedure

  1. Disconnect electrical connectors as necessary.
  2. Transfer components as necessary.
