Installation Procedure

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

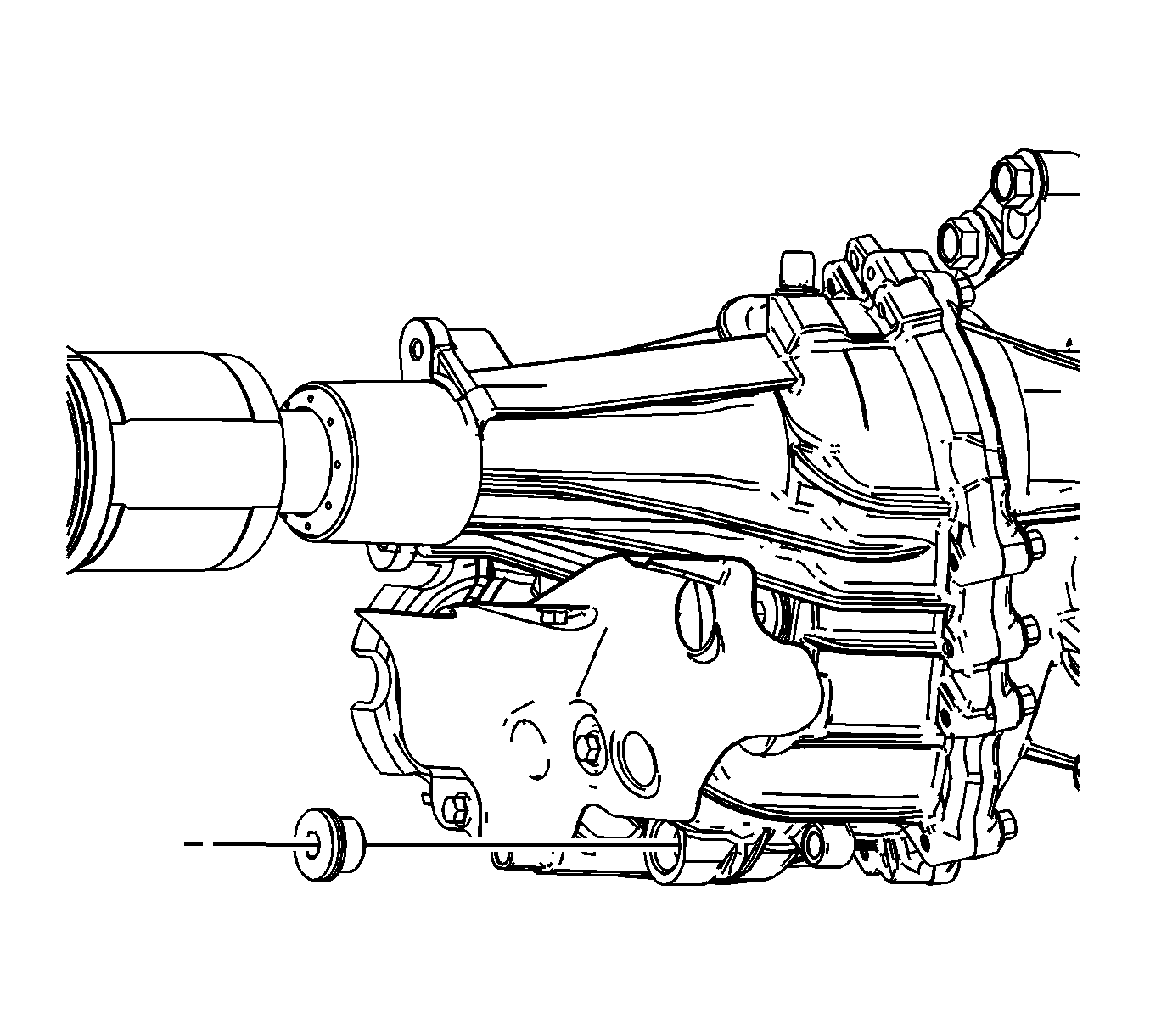

    Fig 1: Identifying Drain Plug
    GM1862827Courtesy of GENERAL MOTORS COMPANY
  1. Clean the drain plug.
    2. CAUTION:

    Refer to Component Fastener Tightening Caution .

  2. Install the drain plug and tighten to 39 N.m (29 lb ft).
    3. Fig 2: Identifying Fill Plug
    GM1862826Courtesy of GENERAL MOTORS COMPANY
  3. Fill the transfer case with lubricant to the bottom of the fill plug, or 1 Liter (34 oz). Refer to Adhesives, Fluids, Lubricants, and Sealers  for lubricant recommendation.
  4. Clean the fill plug.
  5. Install the fill plug and tighten to 39 N.m (29 lb ft).
  6. Lower the vehicle.
