Removal Procedure

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Drain the transfer case fluid. Refer to Transfer Case Fluid Replacement .

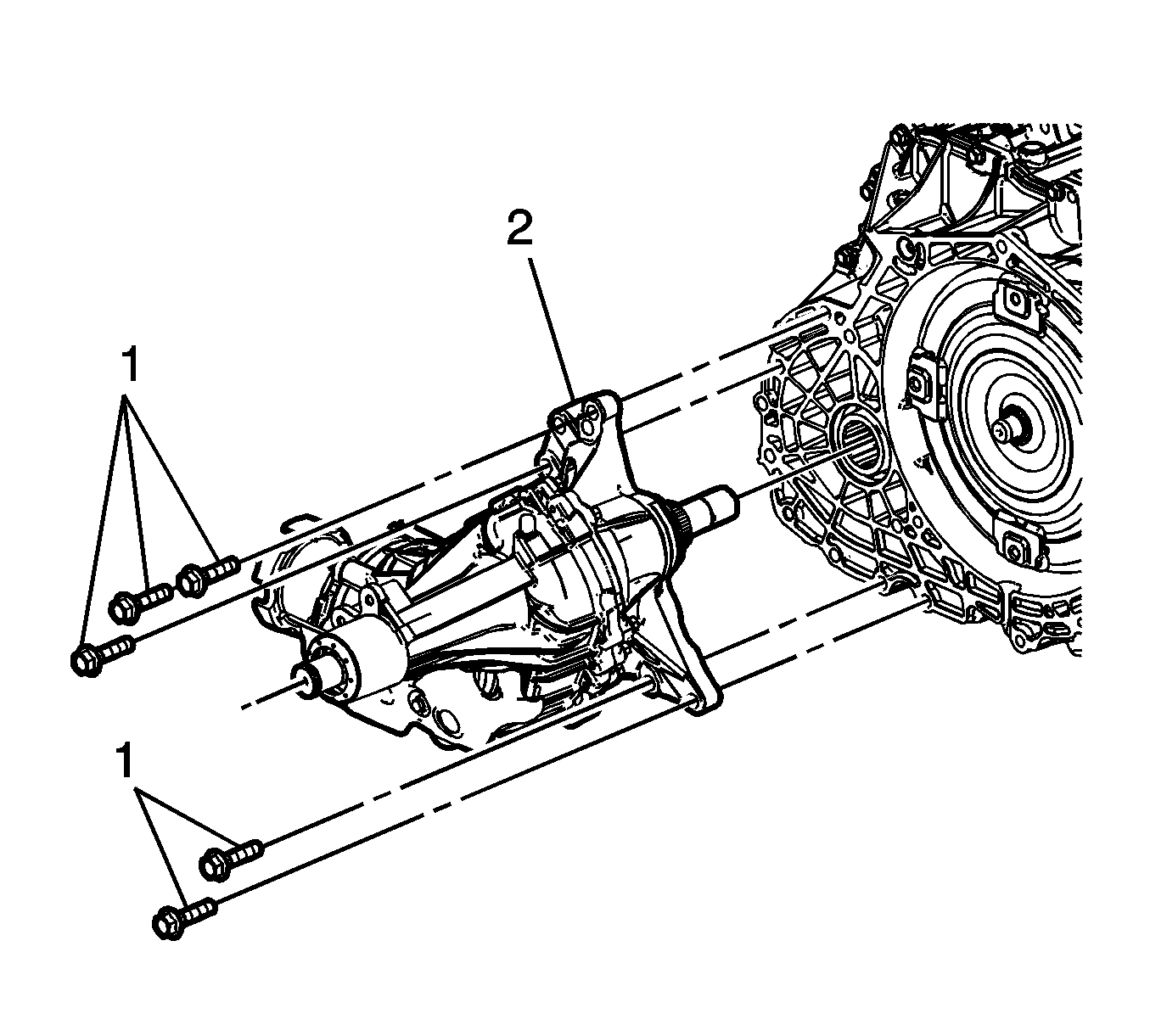

    3. Fig 1: Identifying Transfer Case & Bolts
    GM2039429Courtesy of GENERAL MOTORS COMPANY
  3. Remove the transfer case assembly (2). Refer to Transfer Case Assembly Replacement .
  4. Remove the intermediate shaft snap ring and intermediate drive shaft from the transfer case. Refer to Intermediate Drive Shaft Removal in Transfer Case Disassemble .
  5. Remove the O-ring, half shaft retainer, intermediate shaft bearing retainer and bearing from the intermediate drive shaft. Refer to Intermediate Drive Shaft Disassembly in Transfer Case Disassemble .
