Removal Procedure

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

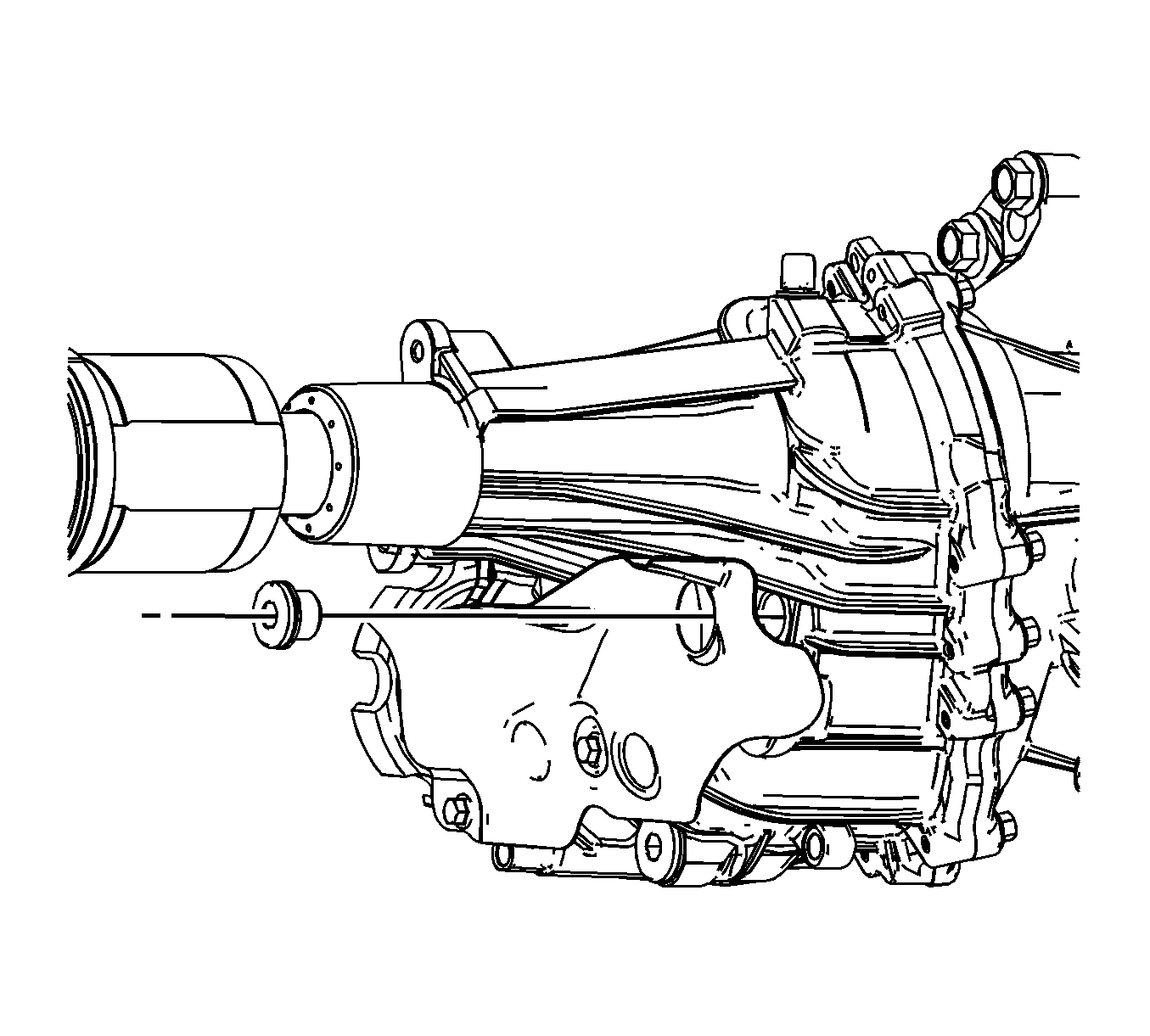

    Fig 1: Identifying Fill Plug
    GM1862826Courtesy of GENERAL MOTORS COMPANY
  1. Remove the fill plug.
