Rear Output Shaft Housing Removal

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

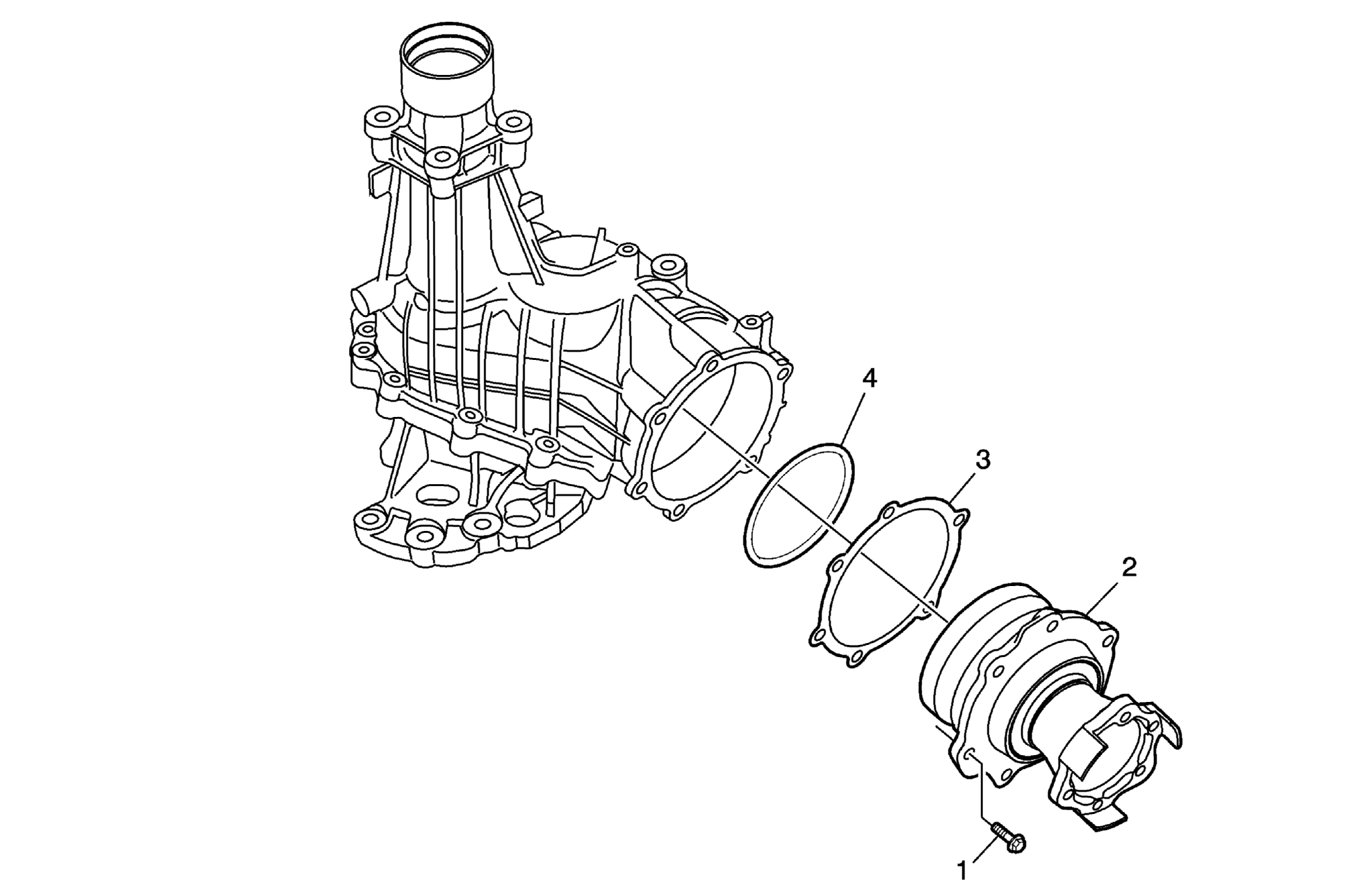

Fig 1: View Of Rear Output Shaft Housing
GM1843285Courtesy of GENERAL MOTORS COMPANY
Rear Output Shaft Housing Removal

Callout Component Name
1 Transfer Case Rear Output Shaft Housing Bolt (Qty: 6)
2 Transfer Case Rear Output Shaft Housing
NOTE:

Locate 2 screwdrivers or prybars to the flange area of the housing to ease removal.
3 Transfer Case Rear Output Shim
4 Transfer Case Rear Output Shaft Housing Seal O-ring
NOTE:

Discard the O-ring after removal.
