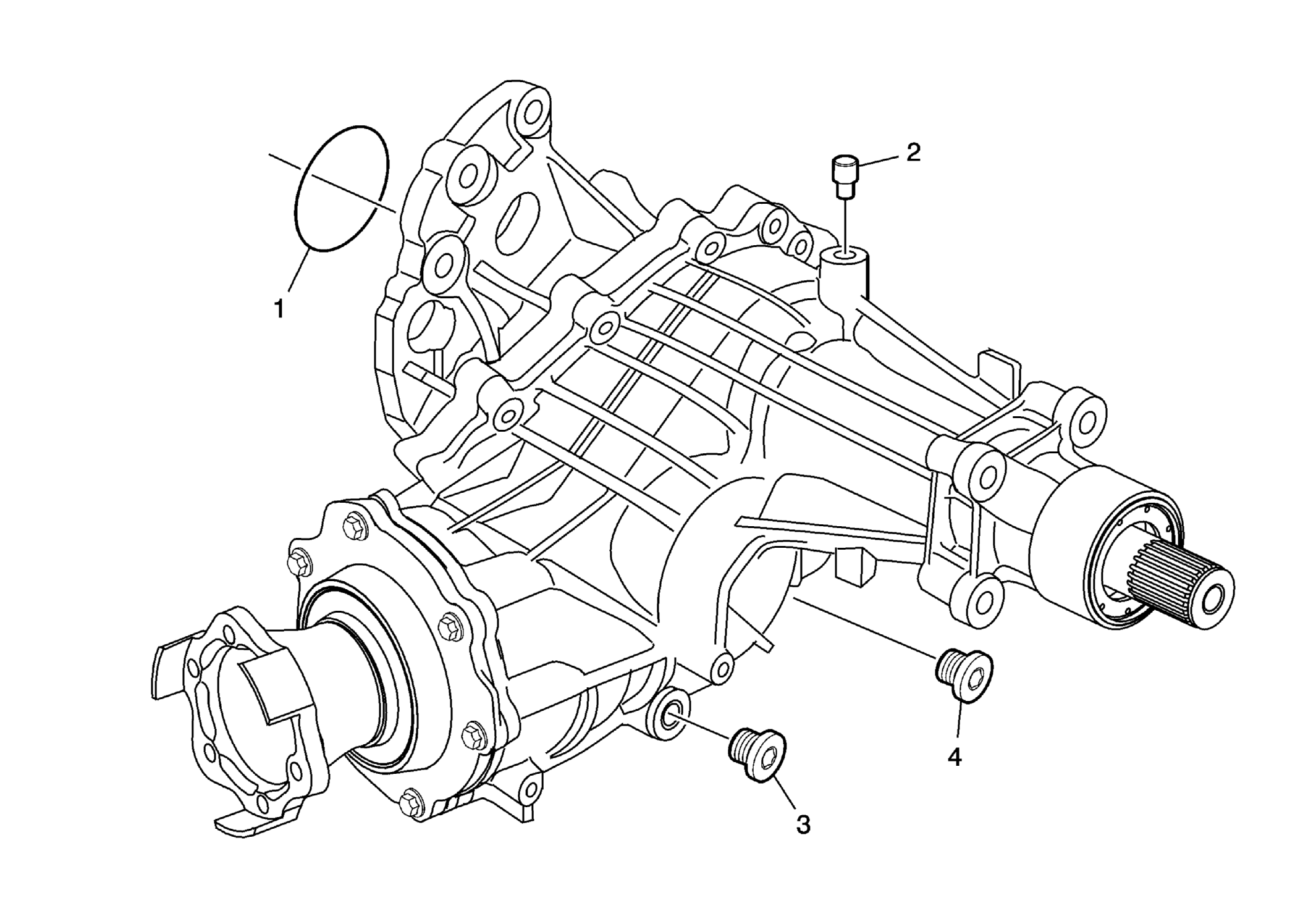

Housing O-ring, Vent Assembly, Drain and Fill Plug Removal
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY Housing O-ring, Vent Assembly, Drain and Fill Plug Removal
| Callout |
Component Name |
| 1 |
Transfer Case O-ring Seal |
| 2 |
Transfer Case Vent Assembly
NOTE:
Remove the vent only if damaged or blocked.
|
| 3 |
Transfer Case Drain Plug |
| 4 |
Transfer Case Fill Plug |
