Right Transfer Case, Input Shaft, and Output Drive Shaft Installation
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
Right Transfer Case, Input Shaft, and Output Drive Shaft Installation

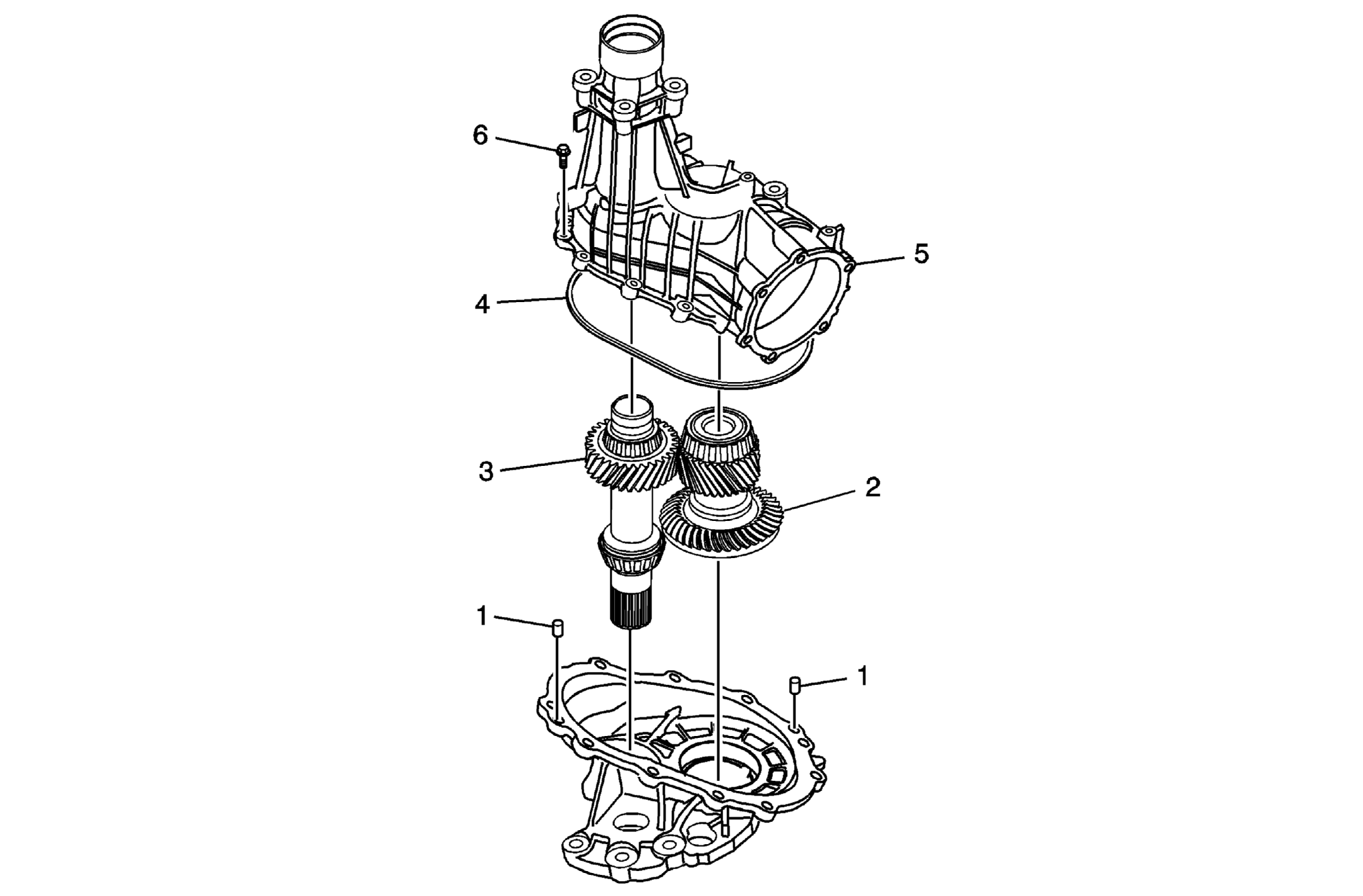

| Callout | Component Name |
|---|---|
| 1 | Transfer Case Half Locating Pin (Qty: 2) |
| 2 | Transfer Case Input Shaft
NOTE:
Install the input and output shafts as a set with the splines engaged. |
| 3 | Transfer Case Rear Output Drive Shaft |
| 4 | Transfer Case Seal to the Transfer Case - Right |
| 5 | Transfer Case - Right |
| 6 | Transfer Case Half Bolt (Qty: 11)
CAUTION:
Refer to Fastener Caution Tighten 29 N.m (21 lb ft) |
