Rear Output Shaft Housing Installation

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

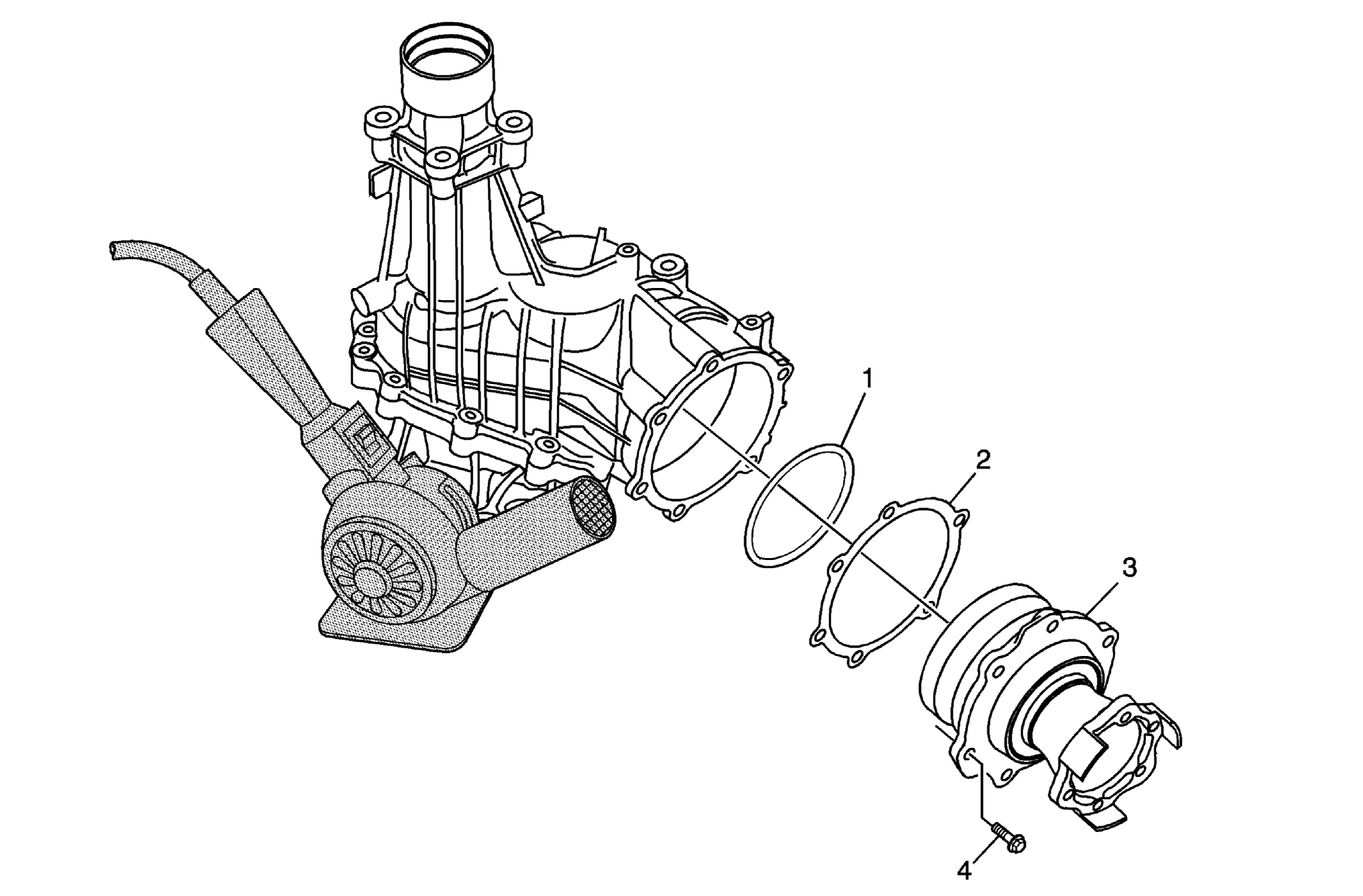

Fig 1: Identifying Rear Output Shaft Housing
GM1843294Courtesy of GENERAL MOTORS COMPANY
Rear Output Shaft Housing Installation

Callout Component Name
1 Transfer Case Rear Output Shaft Housing Seal O-ring
2 Transfer Case Rear Output Shim
3 Transfer Case Rear Output Shaft Housing
CAUTION:

Do not use a drive hammer when the splines are not engaged. Use of a drive hammer when the splines are not engaged will damage the output shaft teeth.

NOTE:
  • Use of a heat gun allows easy alignment of the bolt holes to the housing during assembly.
  • Rotate the pinion gear during assembly to engage the gear teeth.

Special Tools
EL-25070  Heat Gun - 500-750F
For equivalent regional tools, refer to Special Tools .
4 Transfer Case Rear Output Shaft Housing Bolt (Qty: 6)
CAUTION:

Refer to Fastener Caution .


Tighten
29 N.m (21 lb ft)
