Intermediate Drive Shaft Installation

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

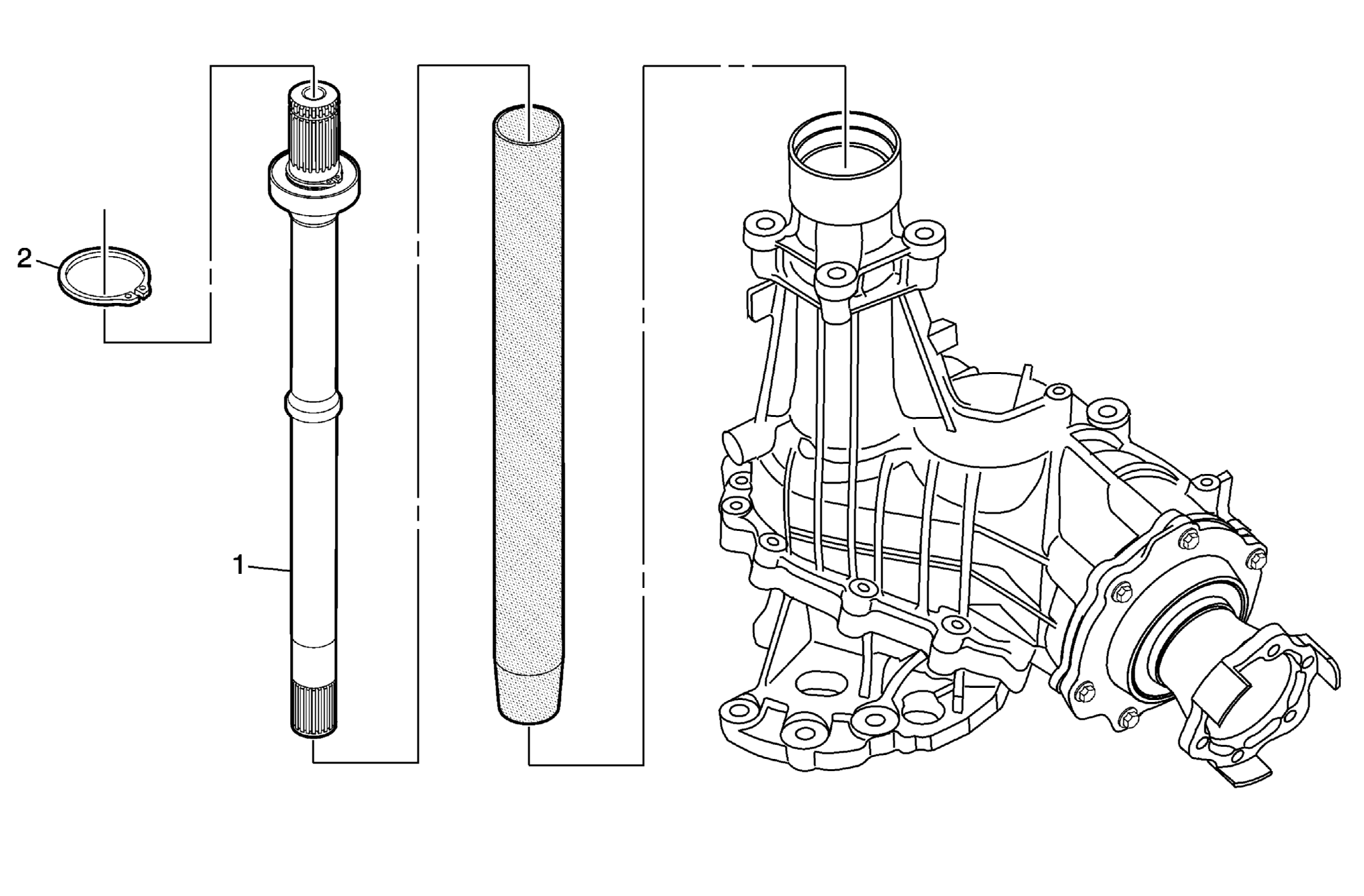

Fig 1: View Of Intermediate Drive Shaft
GM2099739Courtesy of GENERAL MOTORS COMPANY
Intermediate Drive Shaft Installation

Callout Component Name
1 Front Wheel Drive Intermediate Shaft
CAUTION:

DT-48094 must be used over the intermediate shaft prior to installation in order to protect the intermediate shaft seal from damage.


Special Tools
DT-48094  Inner Drive Shaft Seal Protector
For equivalent regional tools, refer to Special Tools .
2 Front Wheel Drive Retainer
