Input Shaft Seal Replacement - Right

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

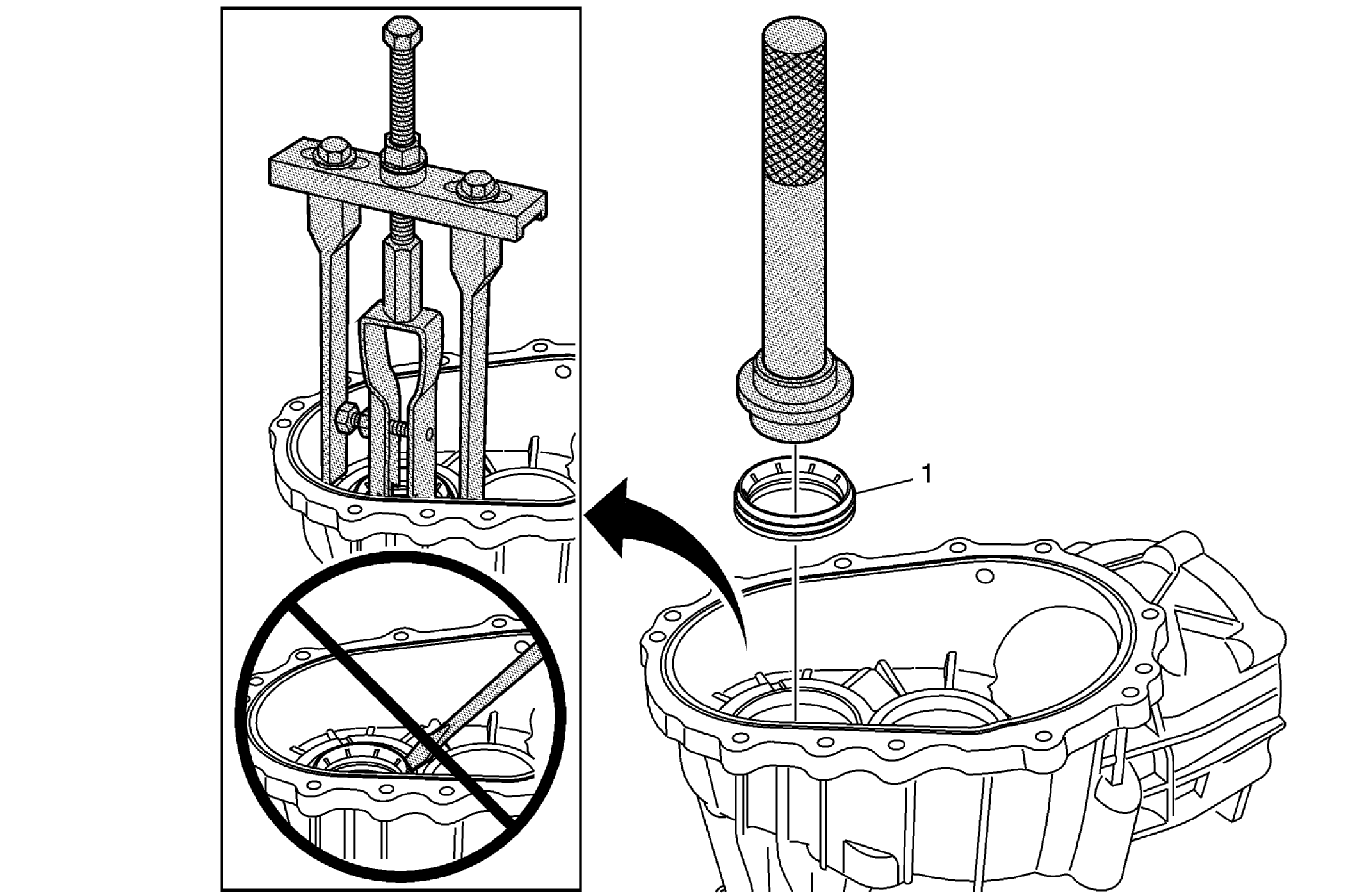

Fig 1: Identifying Input Shaft Seal - Right

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Transfer Case Input Shaft Seal - Right CAUTION: Do not use a screwdriver or punch to remove the seal. Using a screwdriver or punch to remove the seal may damage the aluminum housing sealing surface. Special Tools DT-48074 Input and Output Shaft Seal Installer J 8092 Driver Handle J 26941 Bushing and Bearing Remover - 3-4 in J 45124 Removal Bridge For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Transfer Case Input Shaft Seal - Right

CAUTION:

Do not use a screwdriver or punch to remove the seal. Using a screwdriver or punch to remove the seal may damage the aluminum housing sealing surface.

Special Tools

DT-48074 Input and Output Shaft Seal Installer
J 8092 Driver Handle
J 26941 Bushing and Bearing Remover - 3-4 in
J 45124 Removal Bridge

For equivalent regional tools, refer to Special Tools .
