Frame Brace Replacement
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

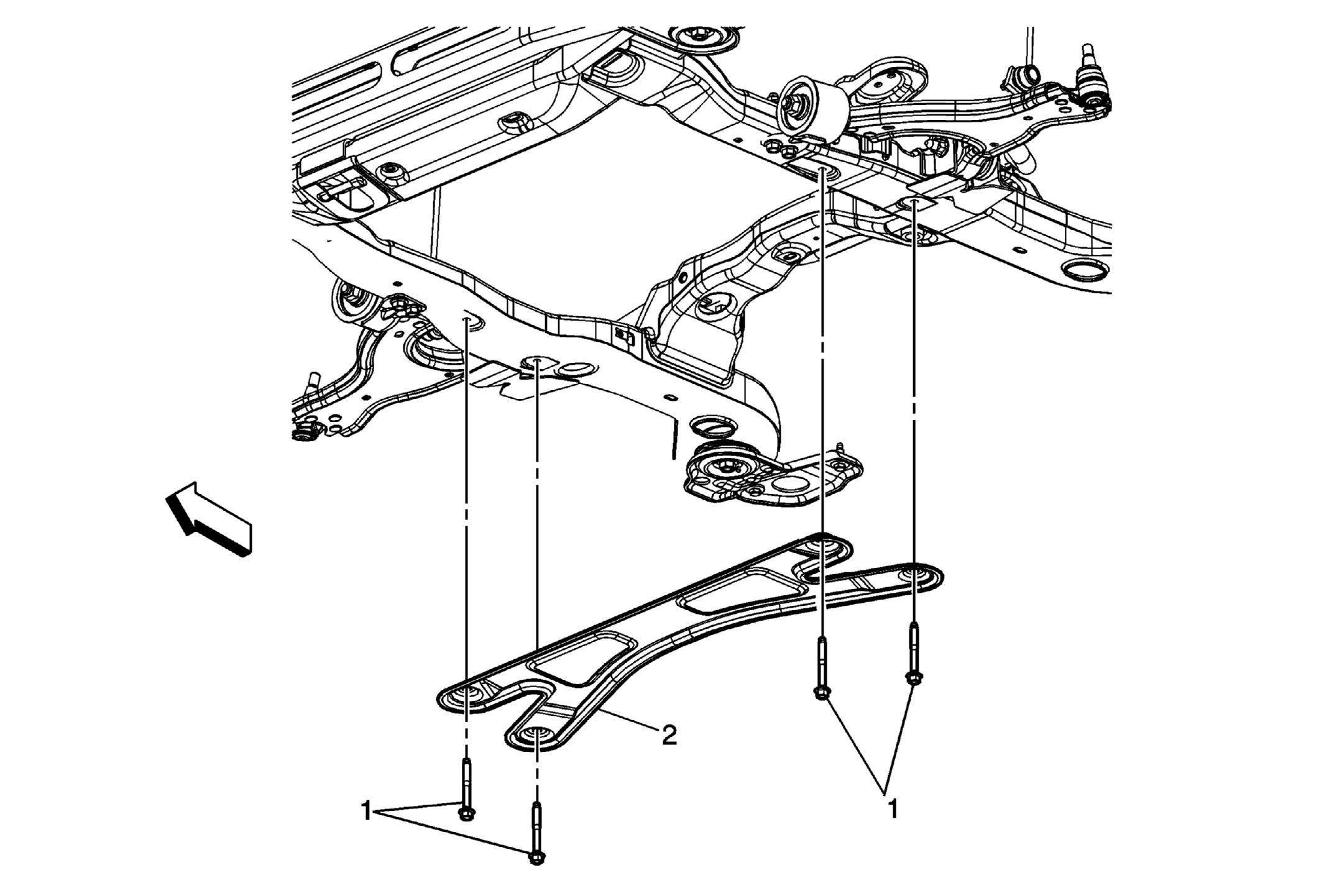

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Frame Brace Bolt (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 60 N.m (44 lb ft) |
| 2 | Frame Brace |
