Removal Procedure
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
- Remove the three way catalytic converter to muffler pipe nuts (1).

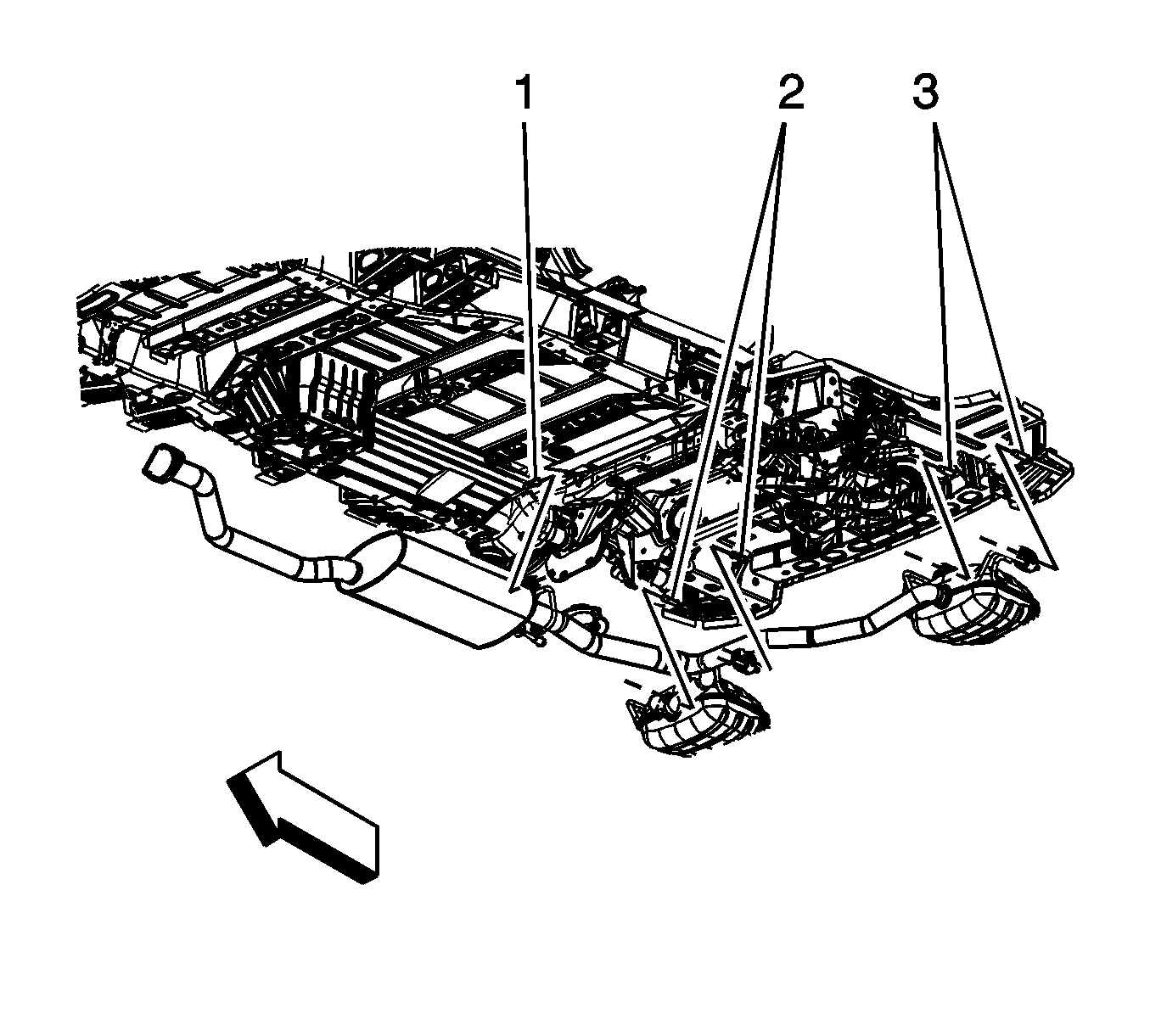

- With the aid of an assistant, separate the rubber insulators from the exhaust underbody hangers (1, 2, and 3).
- With the aid of an assistant, remove the muffler assembly from exhaust flexible pipe and the vehicle.
