Removal Procedure
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Refer to Exhaust Service Warning .
WARNING:
Refer to Protective Goggles and Glove Warning .
- Remove the catalytic converter. Refer to Catalytic Converter Replacement - Right Side .
- Remove the exhaust manifold heat shield. Refer to Exhaust Manifold Heat Shield Replacement - Right Side .

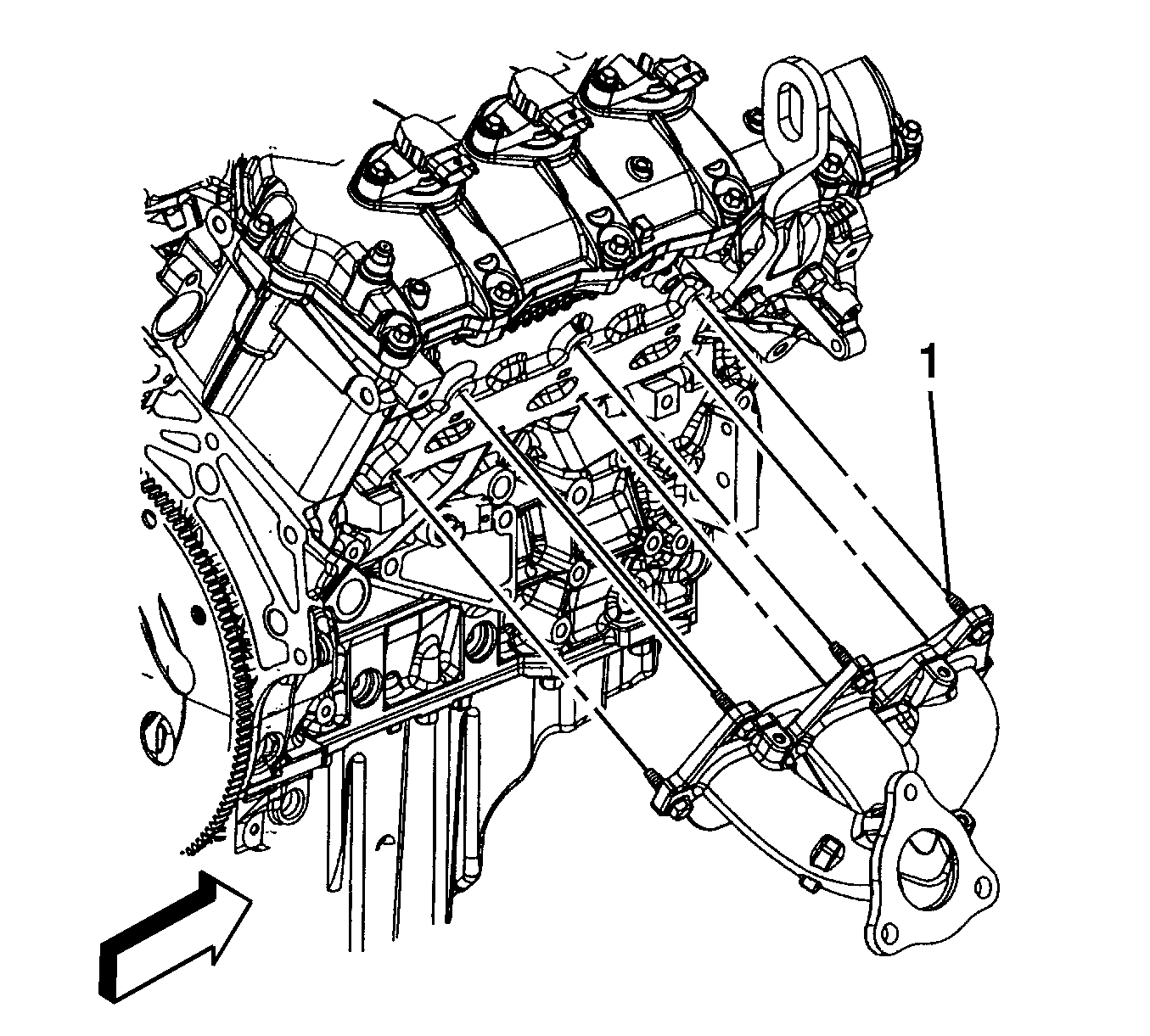

- Remove the exhaust manifold bolts (1).
- Remove the exhaust manifold and gasket out from vehicle. Discard the gasket.
NOTE:
Do not reuse the gasket.
