Removal Procedure

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

Refer to Protective Goggles and Glove Warning .

WARNING:

Refer to Exhaust Service Warning .

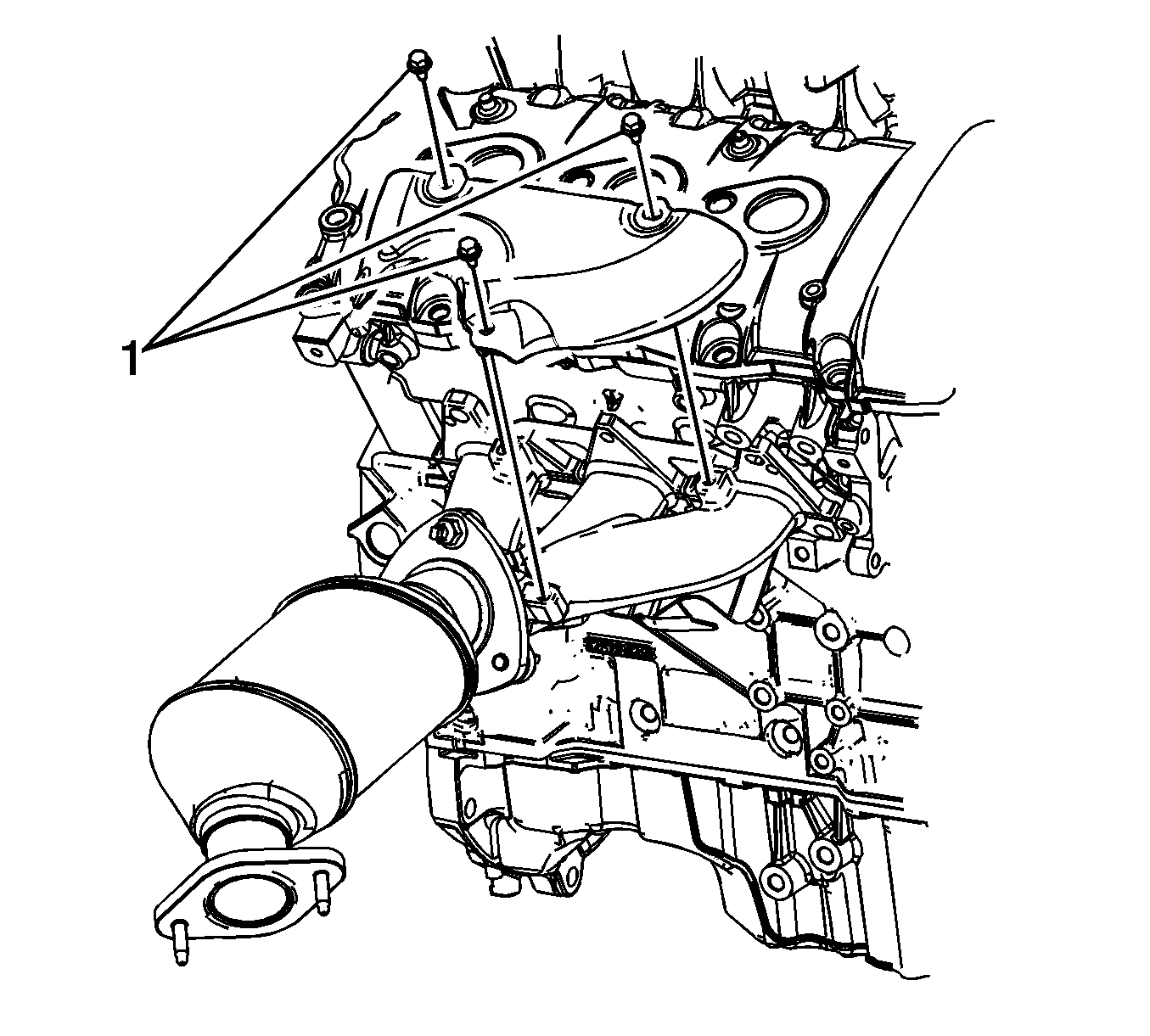

    Fig 1: Identifying Exhaust Manifold Heat Shield Bolts - Right Side
    GM1861575Courtesy of GENERAL MOTORS COMPANY
  1. Remove the heated oxygen sensor (HO2S). Refer to Heated Oxygen Sensor Replacement - Bank 1 Sensor 1 .
  2. Remove the exhaust flexible pipe. Refer to Exhaust Flexible Pipe Replacement .
  3. Remove the exhaust manifold heat shield bolts (1).
  4. Remove the exhaust manifold heat shield.
