Installation Procedure

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

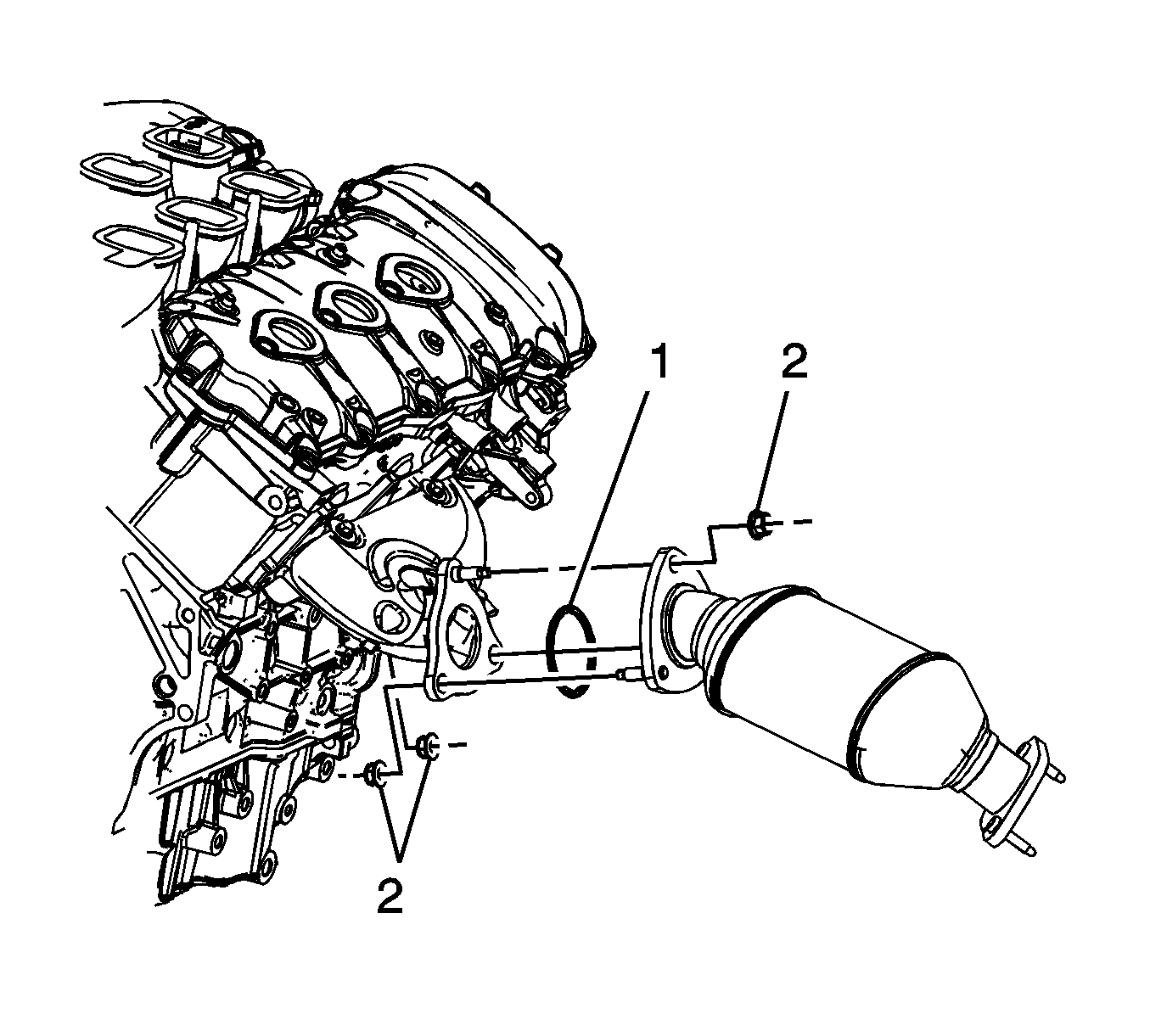

    Fig 1: Identifying Catalytic Converter To Exhaust Manifold Nuts
    GM1861341Courtesy of GENERAL MOTORS COMPANY
  1. Install a NEW catalytic converter to exhaust manifold seal (1) onto the catalytic converter.
  2. Install the catalytic converter to the exhaust manifold.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the catalytic converter to exhaust manifold nuts (2).

    Tighten

    Tighten the nuts to 50 N.m (37 lb ft).

  4. If equipped with all wheel drive (AWD), install the transfer case. Refer to Transfer Case Assembly Replacement .
  5. Install the exhaust flexible pipe. Refer to Exhaust Flexible Pipe Replacement .
