F6UA, F8UA, F14UA, F15UA, F20UA, F21UA, F30UA, F36UA, F42UA, F44UA, F46UA, F47UA and F50UA

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

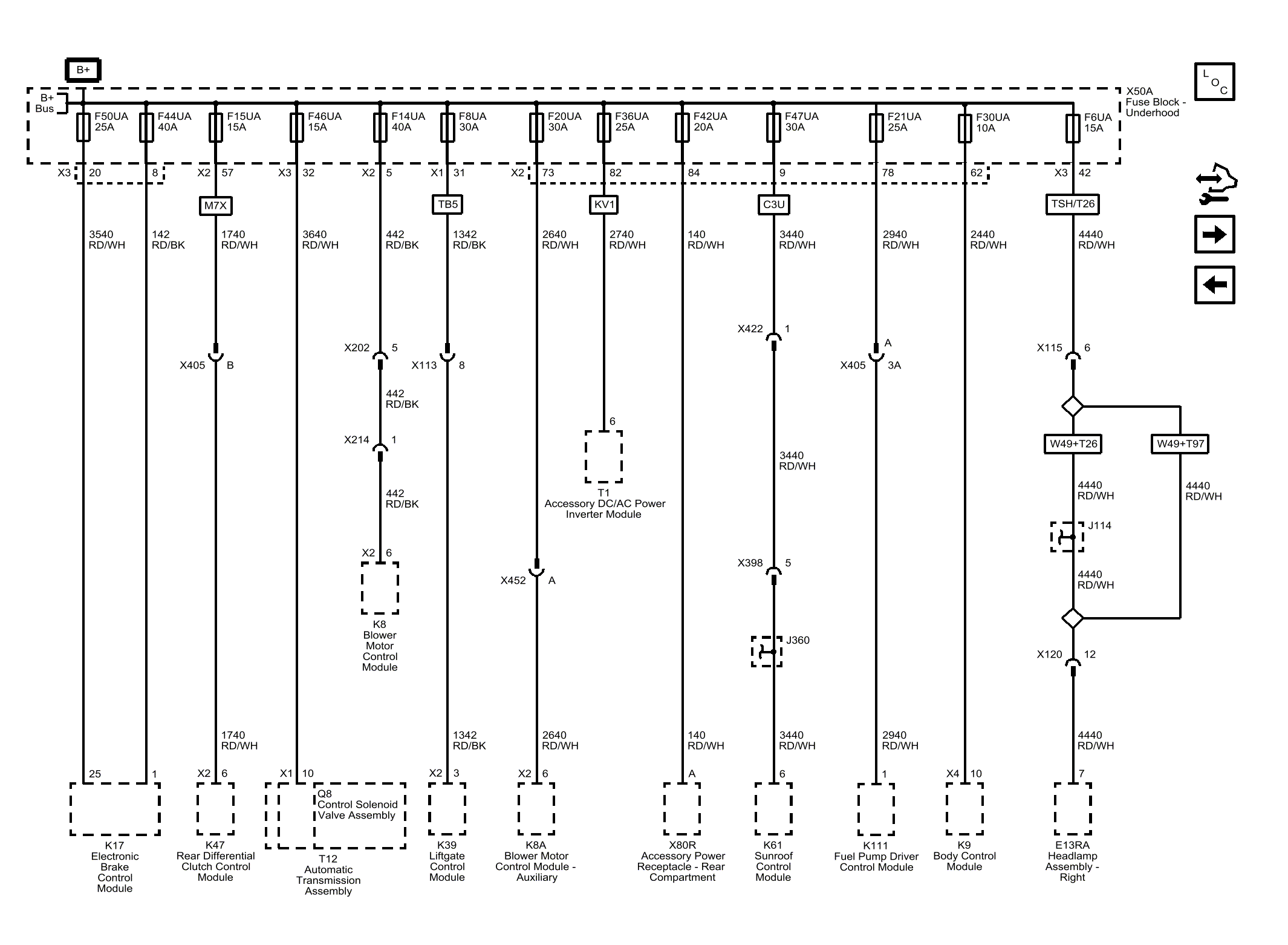

Fig 1: F6UA, F8UA, F14UA, F15UA, F20UA, F21UA, F30UA, F36UA, F42UA, F44UA, F46UA, F47UA and F50UA
GM4074018Courtesy of GENERAL MOTORS COMPANY
