F2DA, F3DA, F4DA, F5DA, F6DA, F27DA, F28DA and F30DA

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

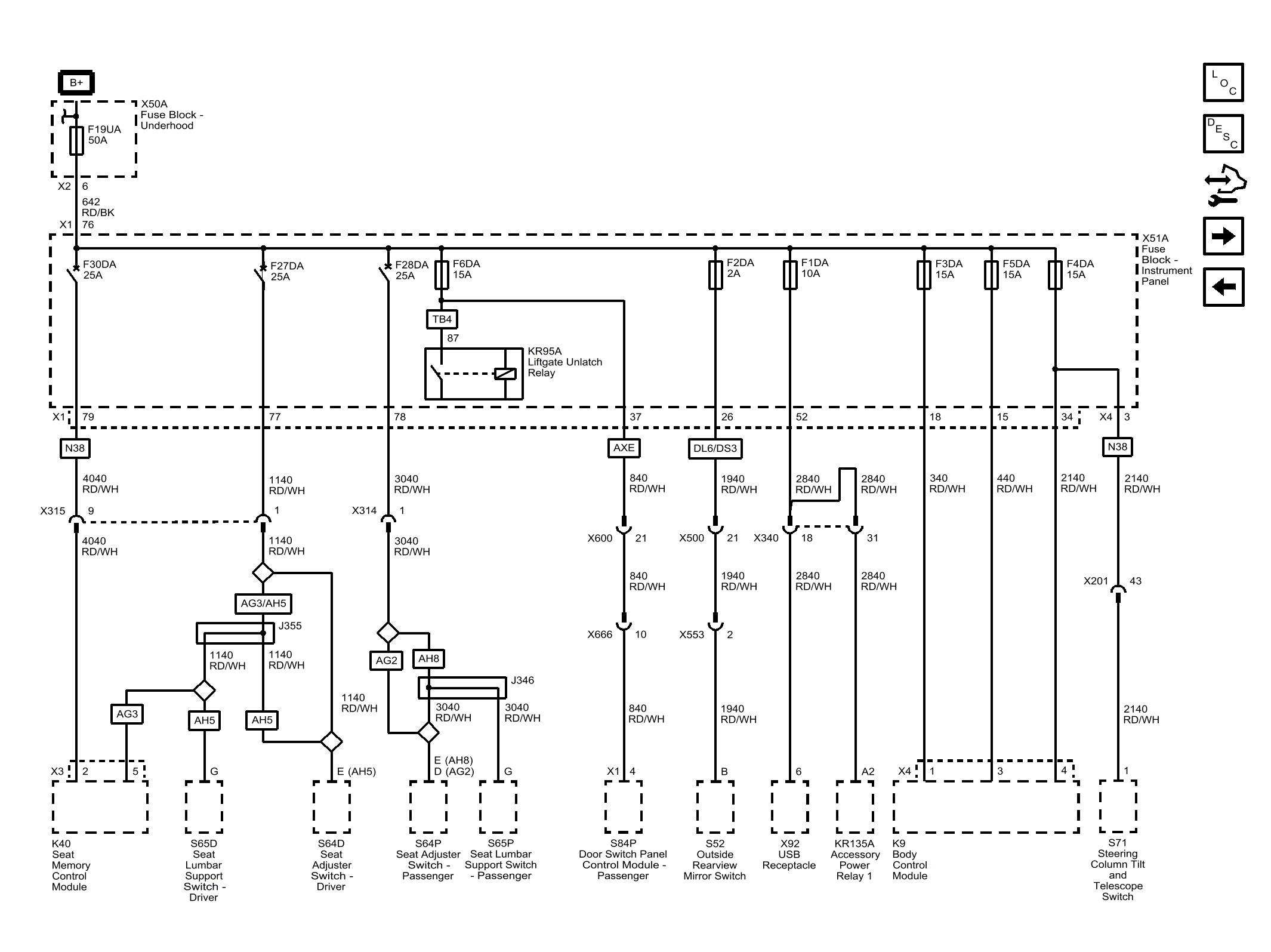

Fig 1: F2DA, F3DA, F4DA, F5DA, F6DA, F27DA, F28DA and F30DA
GM4074014Courtesy of GENERAL MOTORS COMPANY
