F21DA, F24DA, F25DA and F29DA

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

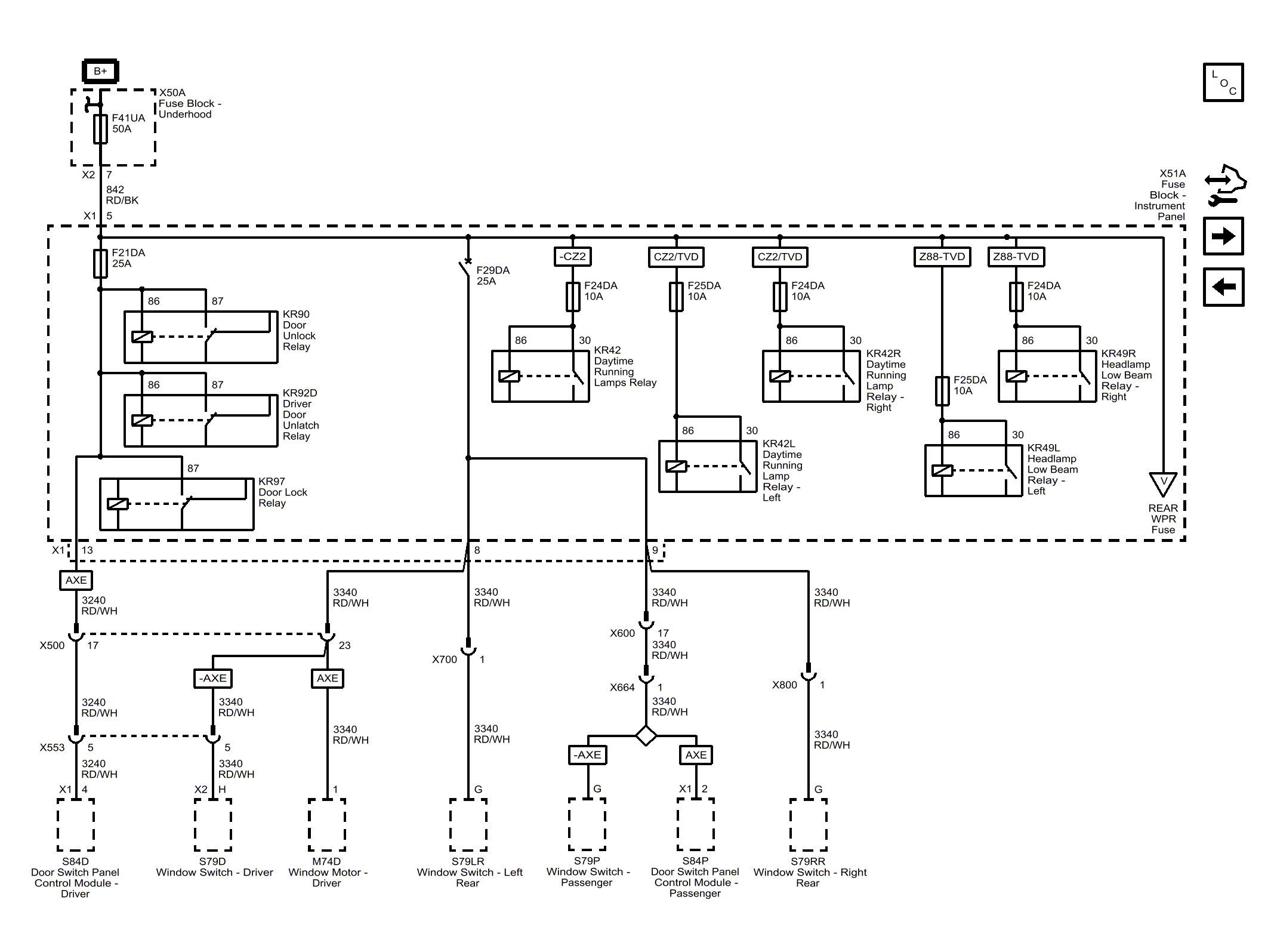

Fig 1: F21DA, F24DA, F25DA and F29DA
GM4074015Courtesy of GENERAL MOTORS COMPANY
