Installation Procedure

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the transmission with the transmission jack and position the transmission to the engine.
    2. Fig 1: Identifying Transmission Bolts
    GM1831024Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the transmission bolts (2, 3-4).

    Tighten

    Tighten bolt (2) to 75 N.m (55 lb ft).

    Tighten

    Tighten bolts (3) and (4) to 58 N.m (43 lb ft).

  3. Install the flywheel inspection cover (1).
  4. Install the flywheel inspection cover bolts (2, 3).

    Tighten

    Tighten the bolt to 75 N.m (55 lb ft).

  5. Remove the transmission jack.
    6. Fig 2: View Of Torque Converter To Flywheel Bolts
    GM1852420Courtesy of GENERAL MOTORS COMPANY
  6. Install the 4 torque converter to flywheel bolts (1).

    Tighten

    Tighten the bolts to 62 N.m (46 lb ft).

  7. Install the starter. Refer to Starter Replacement .
  8. Install the left transmission mount bracket to the transmission. Refer to Transmission Mount Bracket Replacement - Left Side .

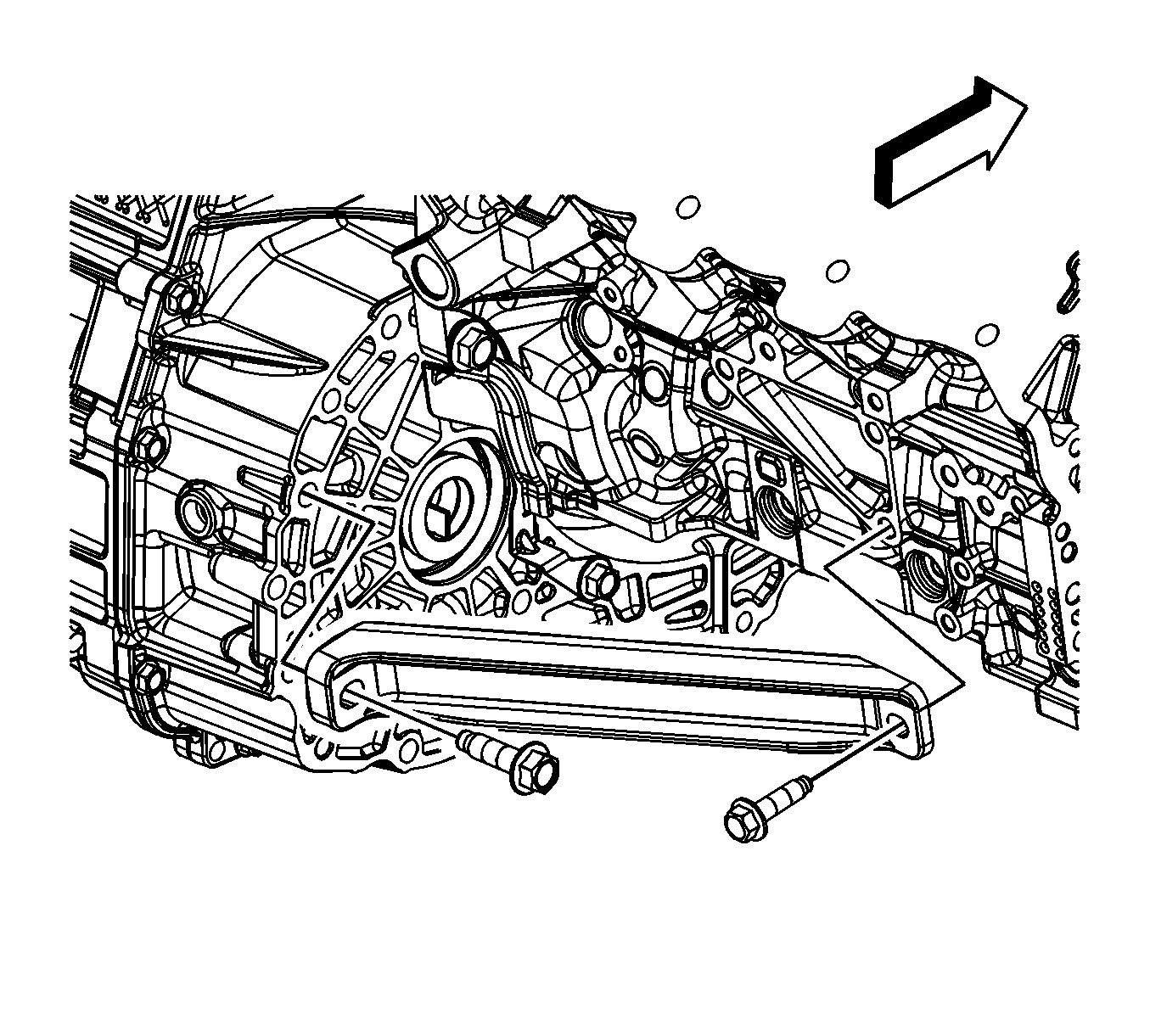

    9. Fig 3: Identifying Transmission Brace Bolts
    GM1831023Courtesy of GENERAL MOTORS COMPANY
  9. Install the transmission brace.
  10. Install the transmission brace bolts.

    Tighten

    Tighten the bolt/stud to 50 N.m (37 lb ft).

  11. Install the intermediate drive shaft. Refer to Front Wheel Drive Intermediate Shaft Replacement .
  12. Install the left wheel drive shaft to the transmission. Refer to Front Wheel Drive Shaft Replacement .
  13. Install the frame. Refer to Drivetrain and Front Suspension Frame Replacement .
  14. Lower the vehicle.
  15. Remove the engine support fixture.
    16. Fig 4: Identifying Upper Transmission To Engine Bolts
    GM1831026Courtesy of GENERAL MOTORS COMPANY
  16. Install the upper transmission to engine bolt (1, 2).

    Tighten

    Tighten the bolts (1 and 2) to 58 N.m (43 lb ft).

    17. Fig 5: Identifying Oil Cooler Hoses & Retainer Nuts
    GM1831036Courtesy of GENERAL MOTORS COMPANY
  17. Install the transmission fluid cooler outlet pipe (4) and seal to the transmission.
  18. Install the transmission fluid cooler outlet pipe nut (3).

    Tighten

    Tighten the nut to 22 N.m (16 lb ft).

  19. Install the oil cooler outlet pipe retainer and nut (5) to the transmission control valve body cover.

    Tighten

    Tighten the nut to 12 N.m (106 lb in).

  20. Install the transmission fluid cooler inlet pipe (1) and seal to the transmission.
  21. Install the transmission fluid cooler inlet pipe nut (2).

    Tighten

    Tighten the nut to 22 N.m (16 lb ft).

  22. Install the transmission fluid cooler inlet pipe retainer to the transmission control valve body cover.
    23. Fig 6: View Of Transmission Range Selector Lever Cable Terminal & Lever
    GM2001149Courtesy of GENERAL MOTORS COMPANY
  23. Install the transmission range selector lever cable (1) to the cable bracket (2).
  24. Connect the transmission range selector lever cable terminal (3) to the transmission manual shift lever (4).
    25. Fig 7: Identifying Wire Harness Retainer & TCM Electrical Connector
    GM1831034Courtesy of GENERAL MOTORS COMPANY
  25. Connect the control valve body TCM electrical connector (1).
  26. Install the wire harness retainer (2) to the control valve body cover stud.

    Tighten

    Tighten the nut to 12 N.m (106 lb in).

  27. Adjust the automatic transmission range selector lever cable. Refer to Range Selector Lever Cable Adjustment .
  28. Verify the proper fluid level of the transmission. Refer to Transmission Fluid Level and Condition Check .
  29. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
  30. If a NEW TCM has been installed into the vehicle, the NEW module needs to be reprogrammed. Refer to Service Programming System (SPS) .
    31. NOTE:

    The Reset Transmission Adapts procedure must be performed when one of the following repairs have been made to the vehicle. Failure to perform the procedure after one of the following repairs may result in poor transmission performance, as well as transmission DTCs being set:

    • Transmission internal service/overhaul
    • Valve body repair or replacement
    • Control solenoid valve assembly replacement
    • TCM software/calibration update
    • Any service in response to a shift quality concern
  31. Perform the Reset Transmission Adapts. Refer to Reset Transmission Adapts .
  32. Road test the vehicle.
