Removal Procedure
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
- Apply the parking brake.
- Remove the floor console left extension panel. Refer to Front Floor Console Extension Panel Replacement - Left Side (Traverse) .

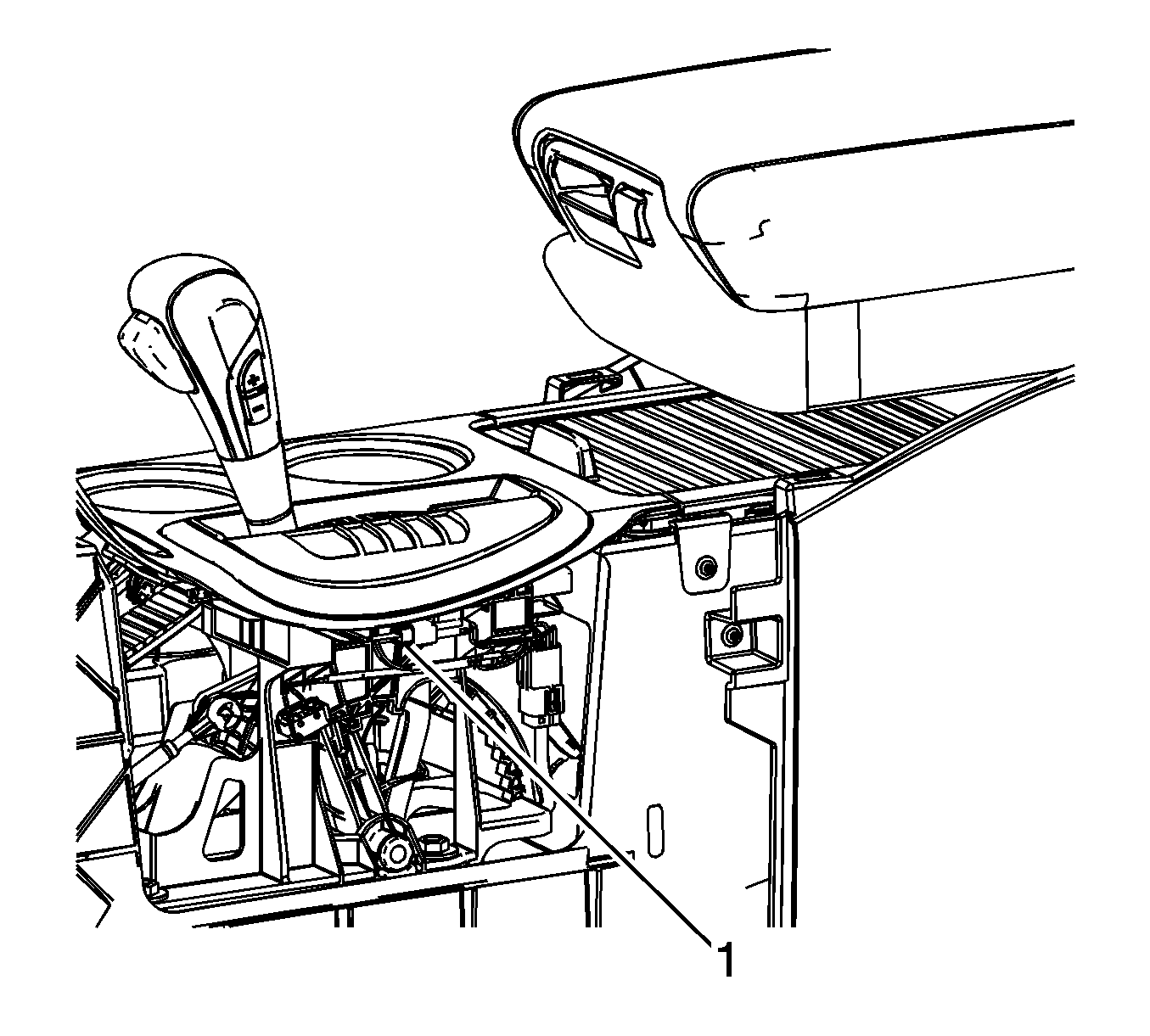

- Disconnect the transmission tap up/tap down switch electrical connector (1).
- Rotate the key to the RUN position, however do NOT start the vehicle.
- Move the transmission shift control lever rearward.

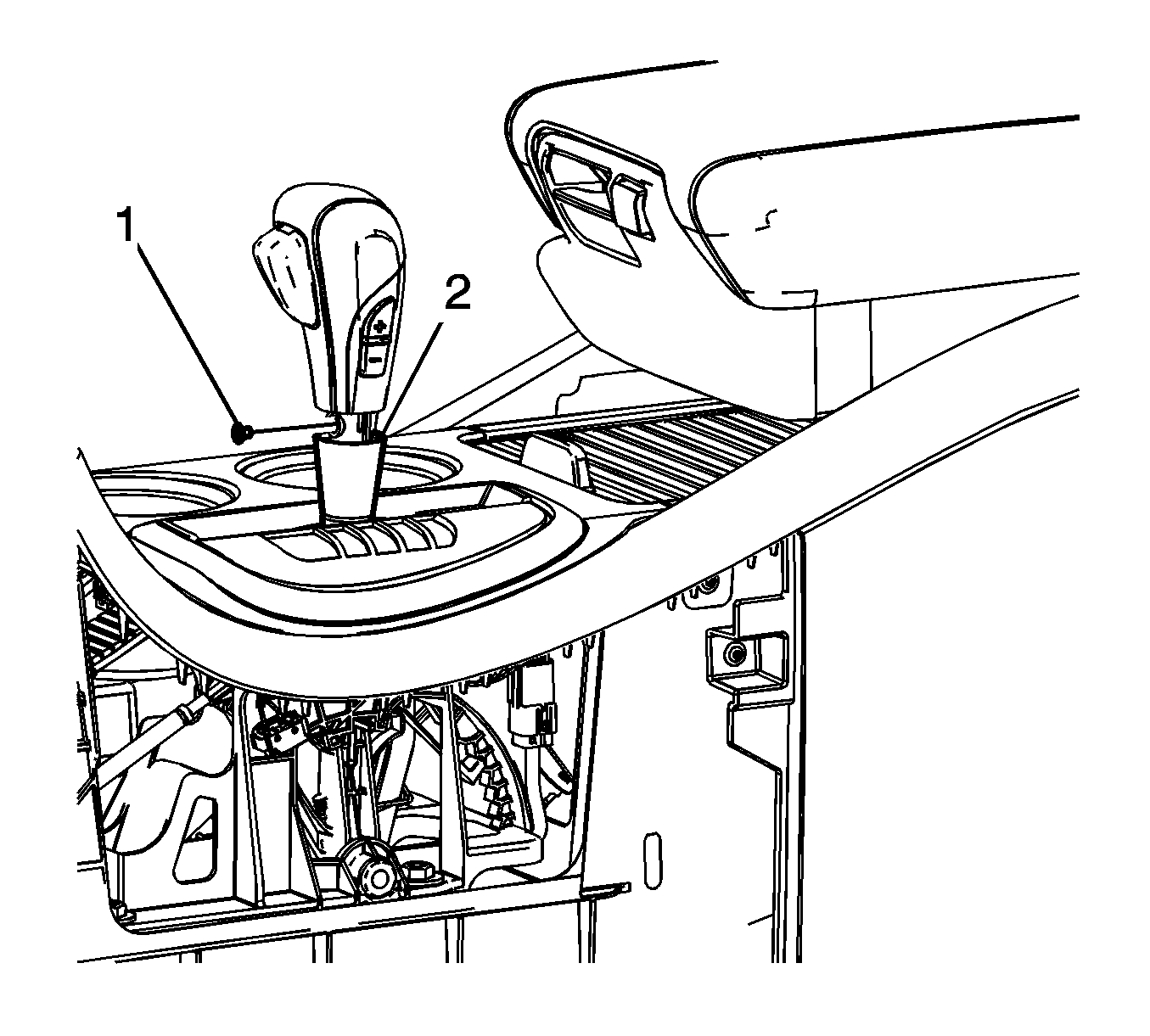

- For vehicles with push-to-release style solenoid, carefully insert a small flat-bladed tool between the trim ring (2) and the shift knob. Apply careful downward pressure to the shift knob trim ring to separate the trim ring from the shift knob. The trim ring will drop down approximately 13.0 mm (0.5 in) exposing the shift knob retaining screw.
- For vehicles with pull-to-release style solenoid, carefully apply downward pressure to the shift knob trim ring to separate the trim ring from the shift knob. The trim ring will drop down approximately 13.0 mm (0.5 in) exposing the shift knob retaining screw.
- Remove the shift control knob screw (1) from the shift control knob.

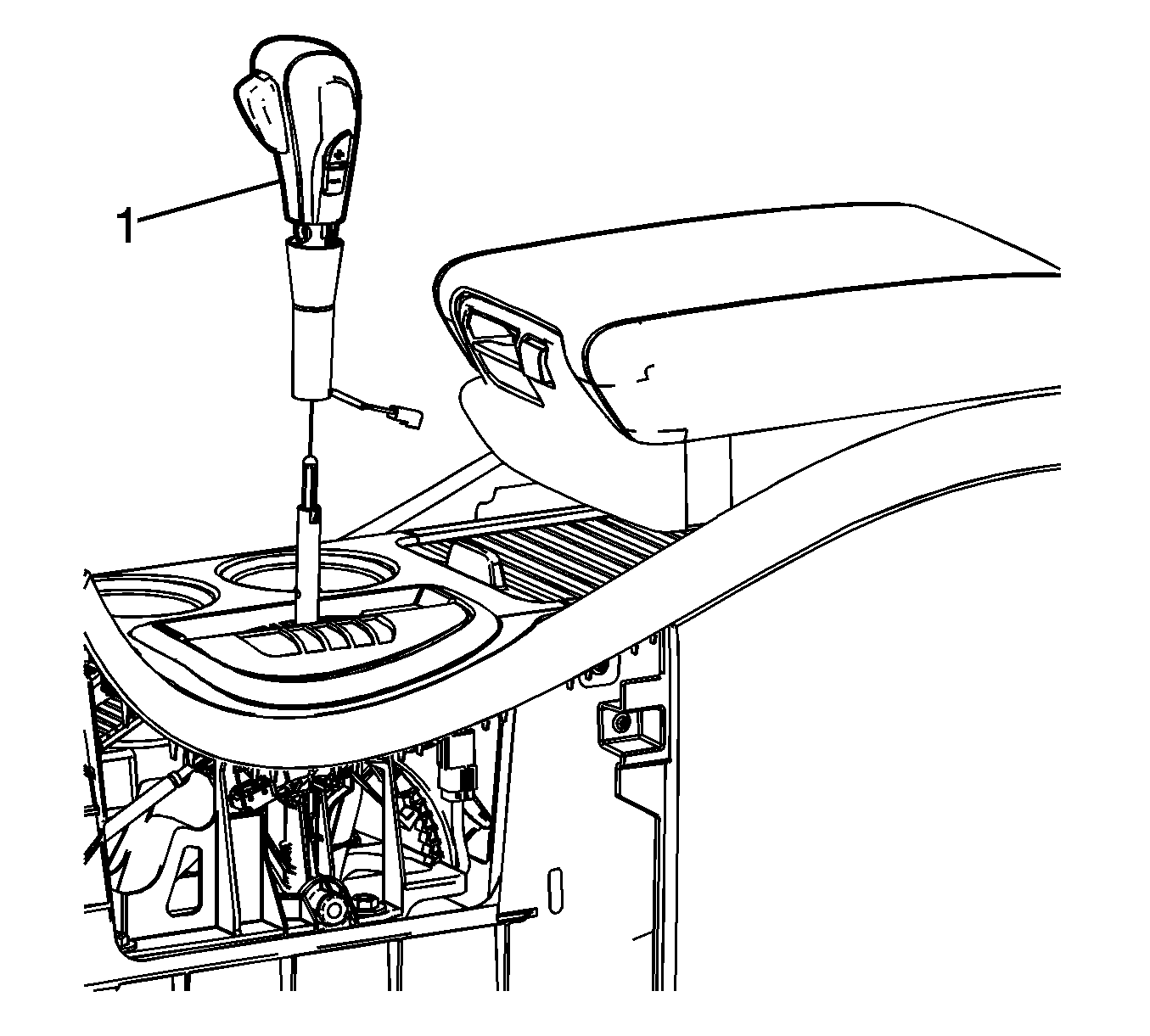

- Remove the shift control knob (1) from the shift control lever.
NOTE:
Carefully guide the transmission tap up/tap down switch electrical harness and connector past the shift control indicator while removing the shift control knob.
