Installation Procedure
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
- For vehicles with push-to-release style solenoid, apply lubricant GM P/N 88861426 (Canadian P/N 88861442) to the tip of the shift control lever. Otherwise, proceed to step 2.

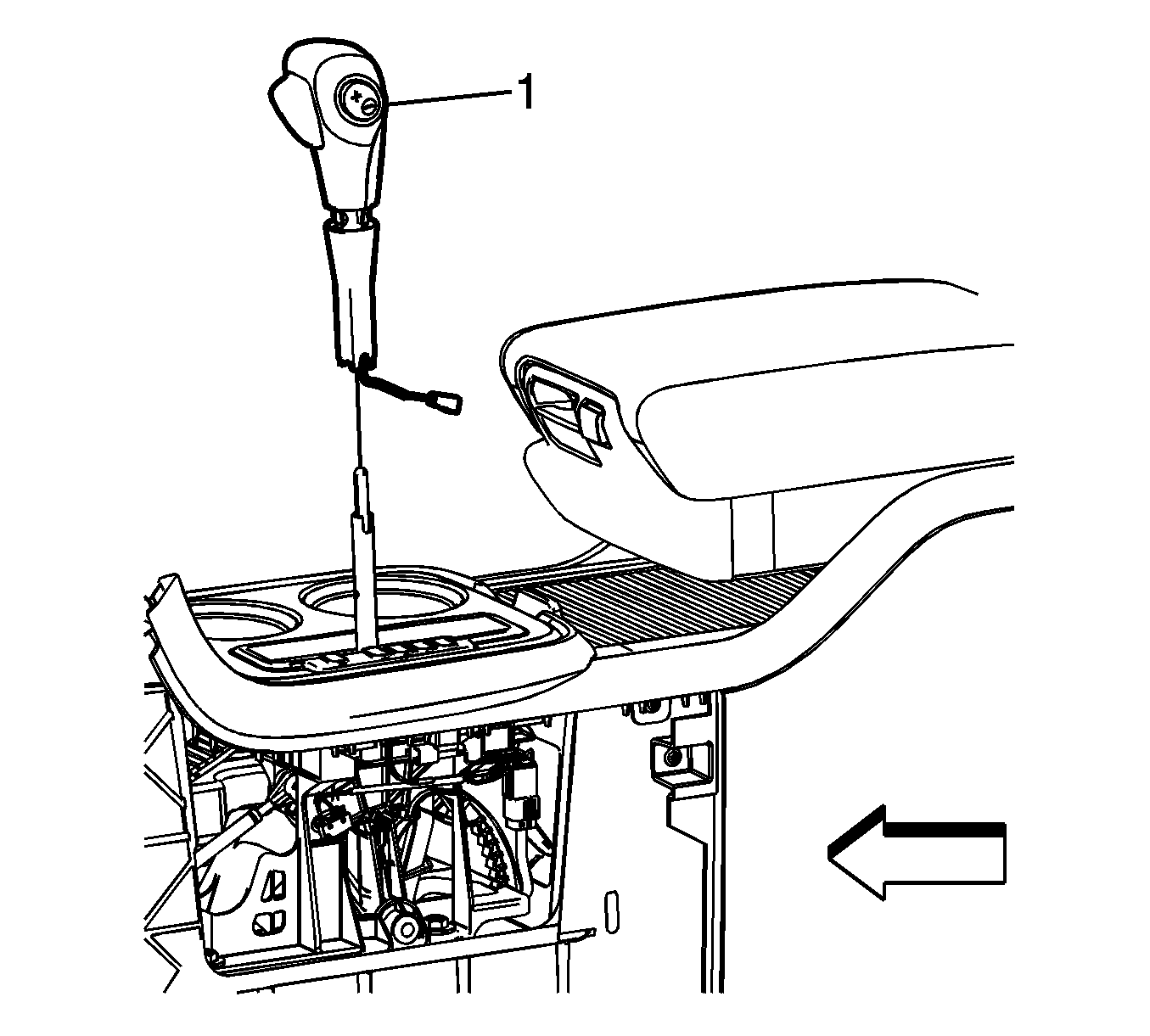

- Install the shift control knob (1) to the shift control lever.

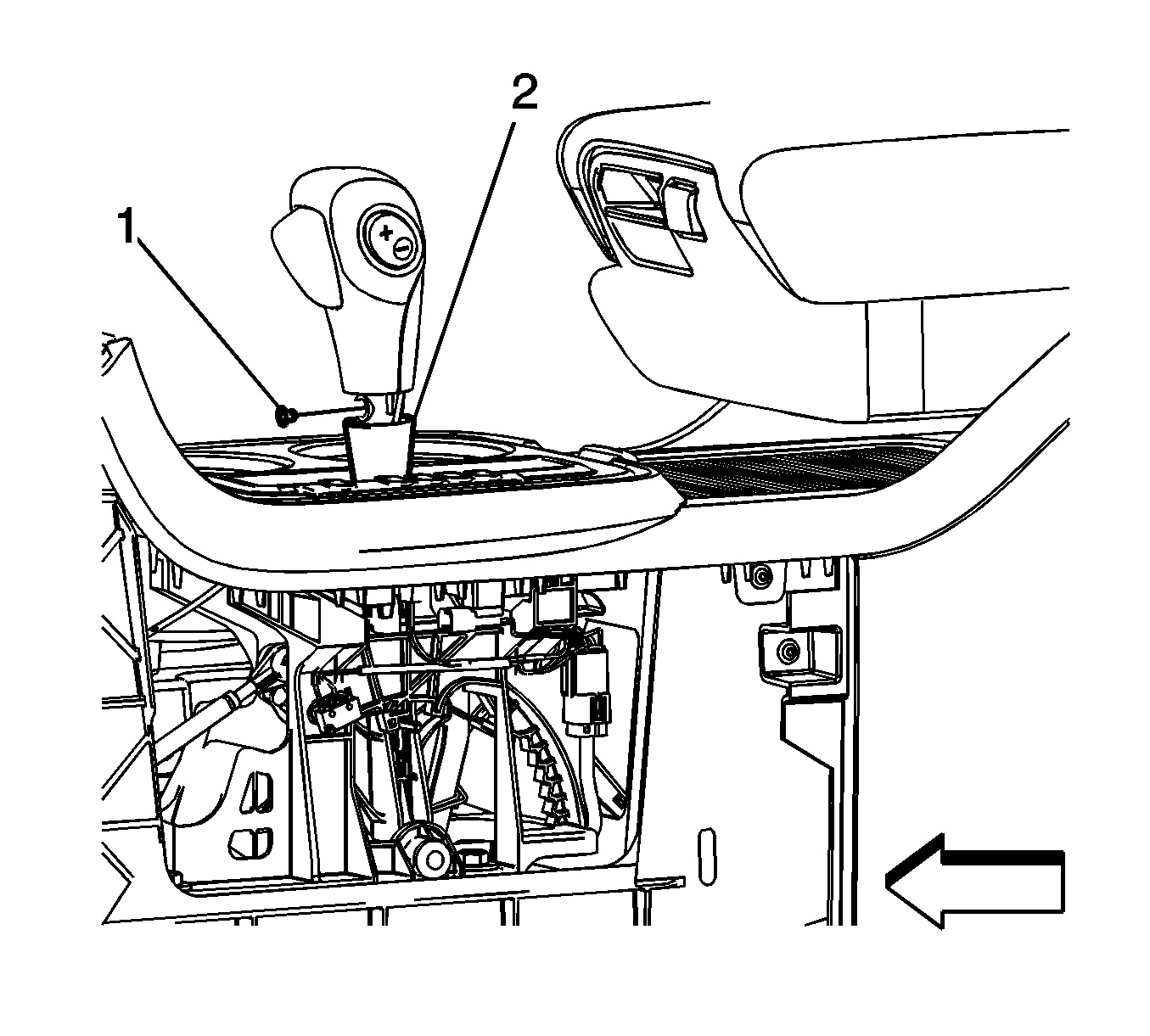

- Install the control knob screw (1) and tighten to 4 N.m (35 lb in).
- Lift the shift control knob trim ring (2) up to the shift control knob until a click sound is heard indicating the trim ring is secured to the shift knob.
- Place the shift control lever in the PARK position.
- Rotate the key to the off position.

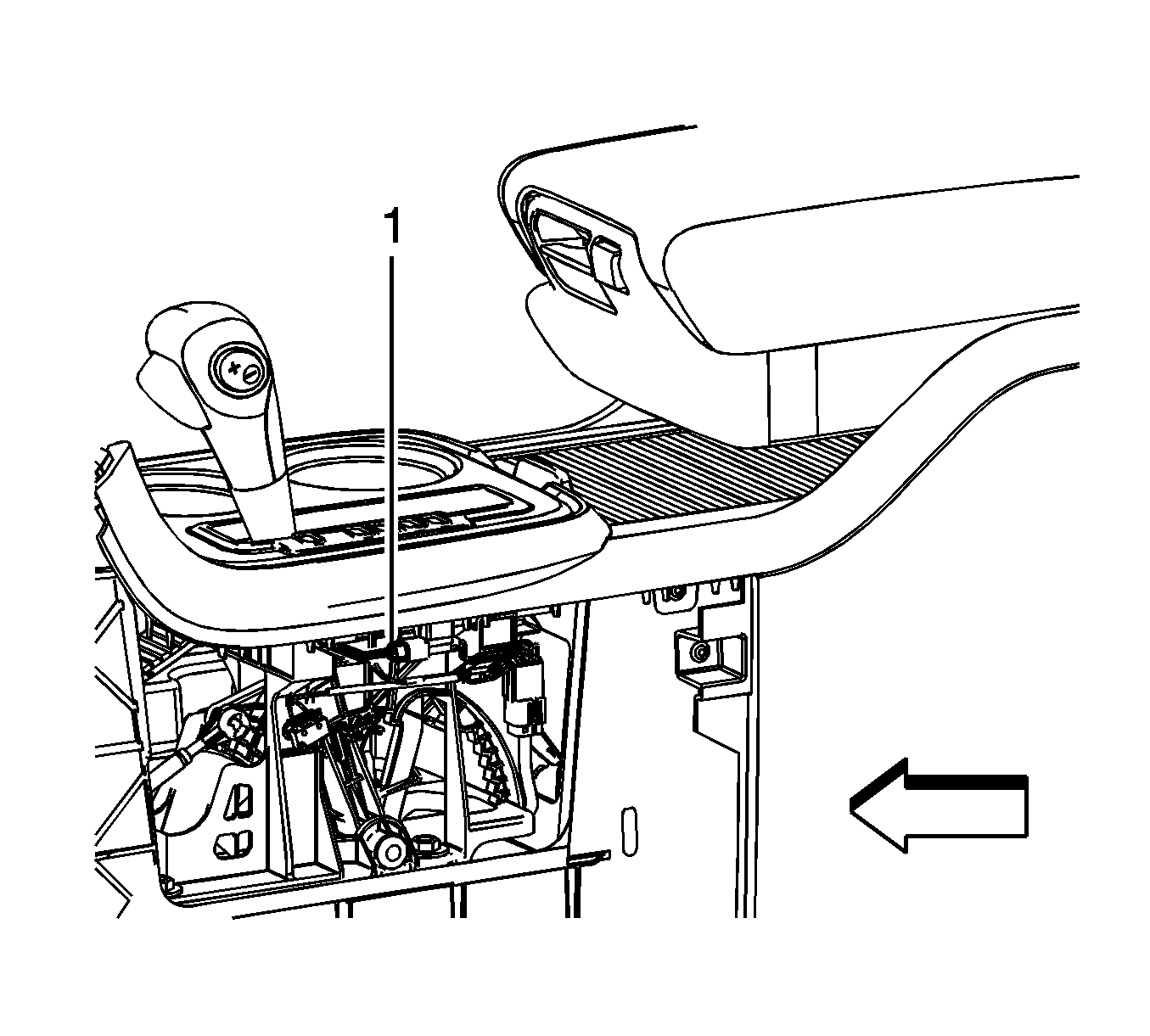

- Connect the transmission tap up/tap down switch electrical connector (1).
- Check for proper operation of the shift control through all gear ranges.
- Install the floor console left extension panel. Refer to Front Floor Console Extension Panel Replacement - Left Side (Acadia) .
- Release the parking brake.
NOTE:
Carefully guide the transmission tap up/tap down switch electrical harness and connector past the shift control indicator while installing the shift control knob.
CAUTION:
Refer to Fastener Caution .
