Range Selector Lever Cable Bracket Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

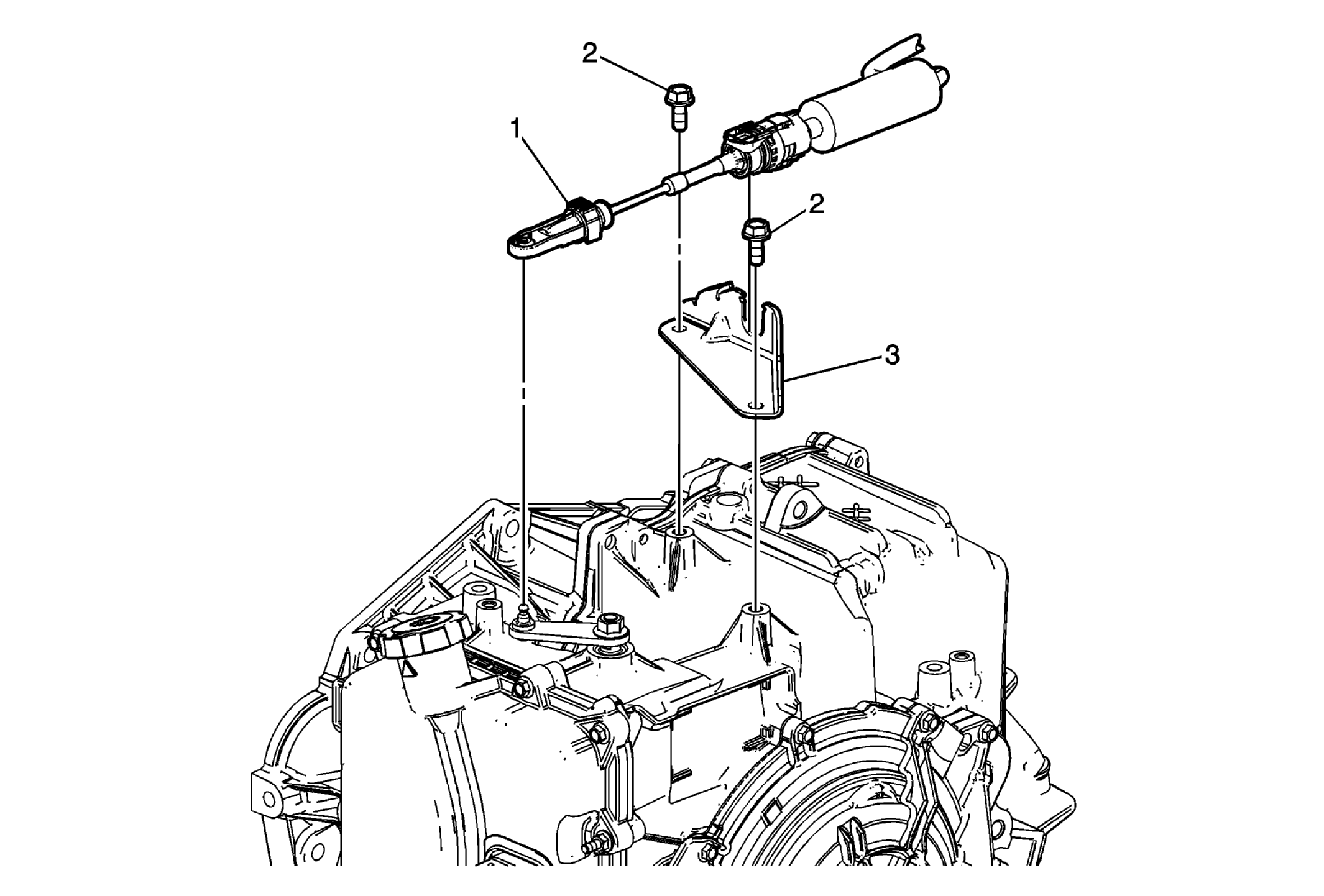

Fig 1: View Of Range Selector Lever Cable & Bracket
GM2001152Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Set the park brake and chock the wheels.
  2. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
1 Transmission Range Selector Lever Cable
TIP:  For additional information on disconnecting the range selector lever cable from the bracket or lever, refer to Range Selector Lever Cable Replacement .
2 Transmission Range Selector Lever Cable Bracket Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
25 N.m (18 lb ft)
3 Transmission Range Selector Lever Cable Bracket
Procedure
Adjust the range selector cable. Refer to Range Selector Lever Cable Adjustment .
