Automatic Transmission Control Indicator Replacement (Acadia)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

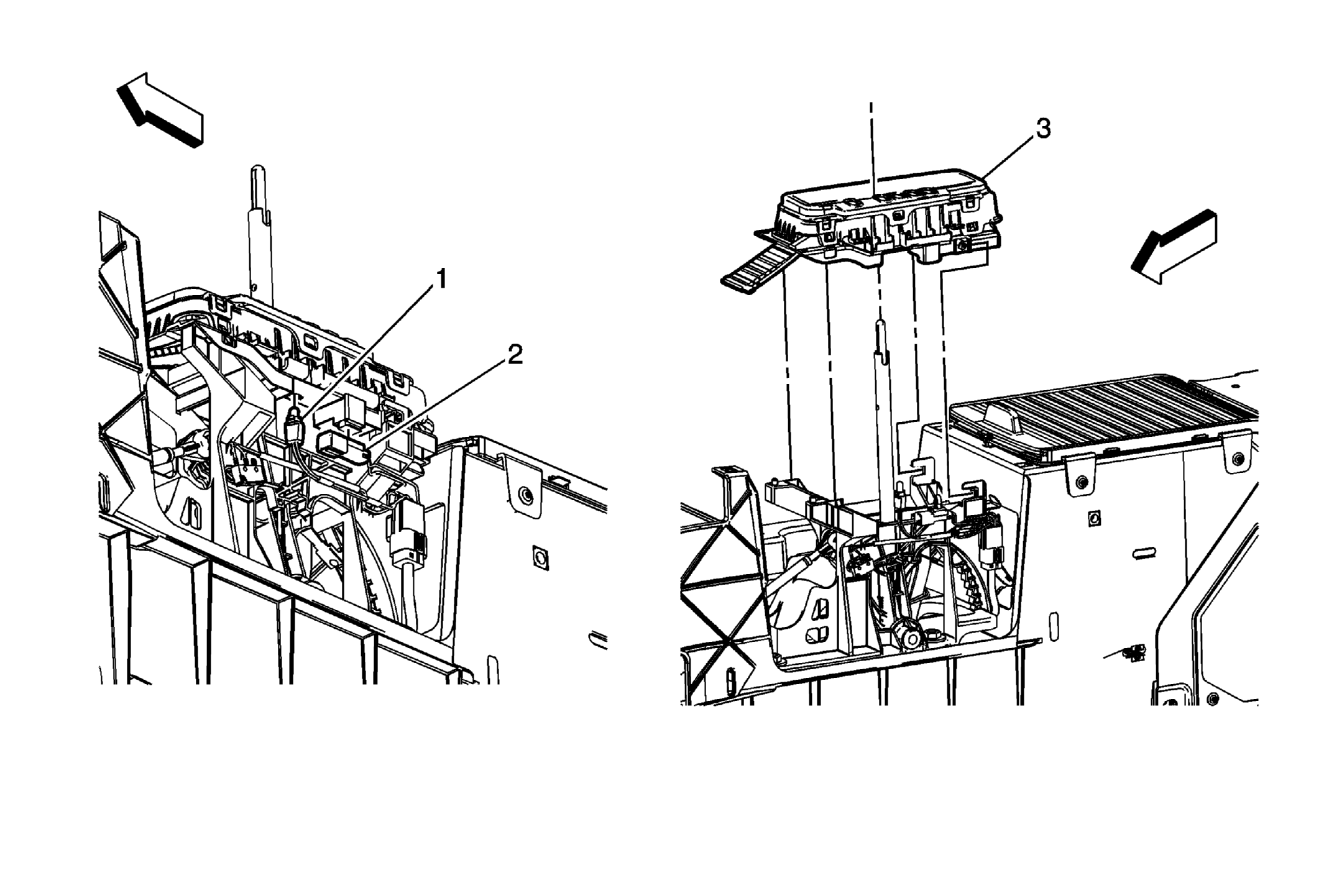

Fig 1: View Of Automatic Transmission Control Indicator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the console trim plate. Refer to Front Floor Console Cover Replacement . Remove the shift knob. Refer to Transmission Control Lever Knob Replacement (Acadia) .
1	Automatic Transmission Shift Control Indicator Lamp TIP: Rotate the lamp socket one eighth turn counterclockwise to remove or clockwise to install.
2	Automatic Transmission Tap Up/Tap Down Switch Electrical Harness Connector. TIP: Slide the harness connector forward off of the retainer.
3	Automatic Transmission Shift Control Indicator TIP: Release the front two shift indicator retaining tabs then lift and remove the indicator from the rear two retaining tabs.
