Rear Side Door Upper Garnish Molding Replacement (Enclave)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

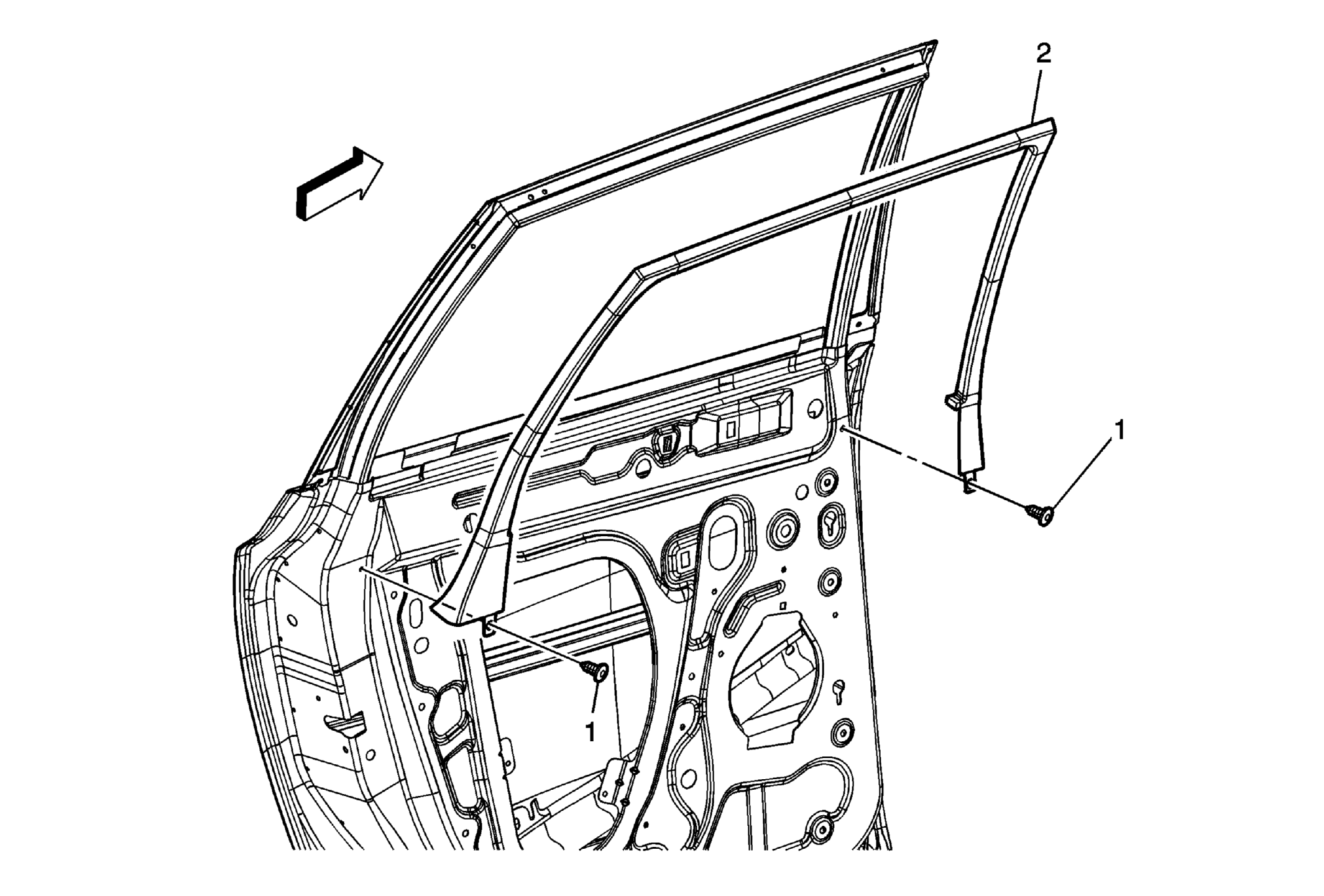

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear side door trim panel. Refer to Rear Side Door Trim Panel Replacement (Enclave) . |
|
| 1 | Rear Side Door Upper Garnish Molding Retainer (Qty: 2) TIP: Use a door trim panel removal tool or equivalent to aid in the removal of the retainer. |
| 2 | Rear Side Door Upper Garnish Molding TIP: Pull outward starting at the front and moving slowly rearward to remove the molding. |
