Liftgate Inside Pull Handle Replacement
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

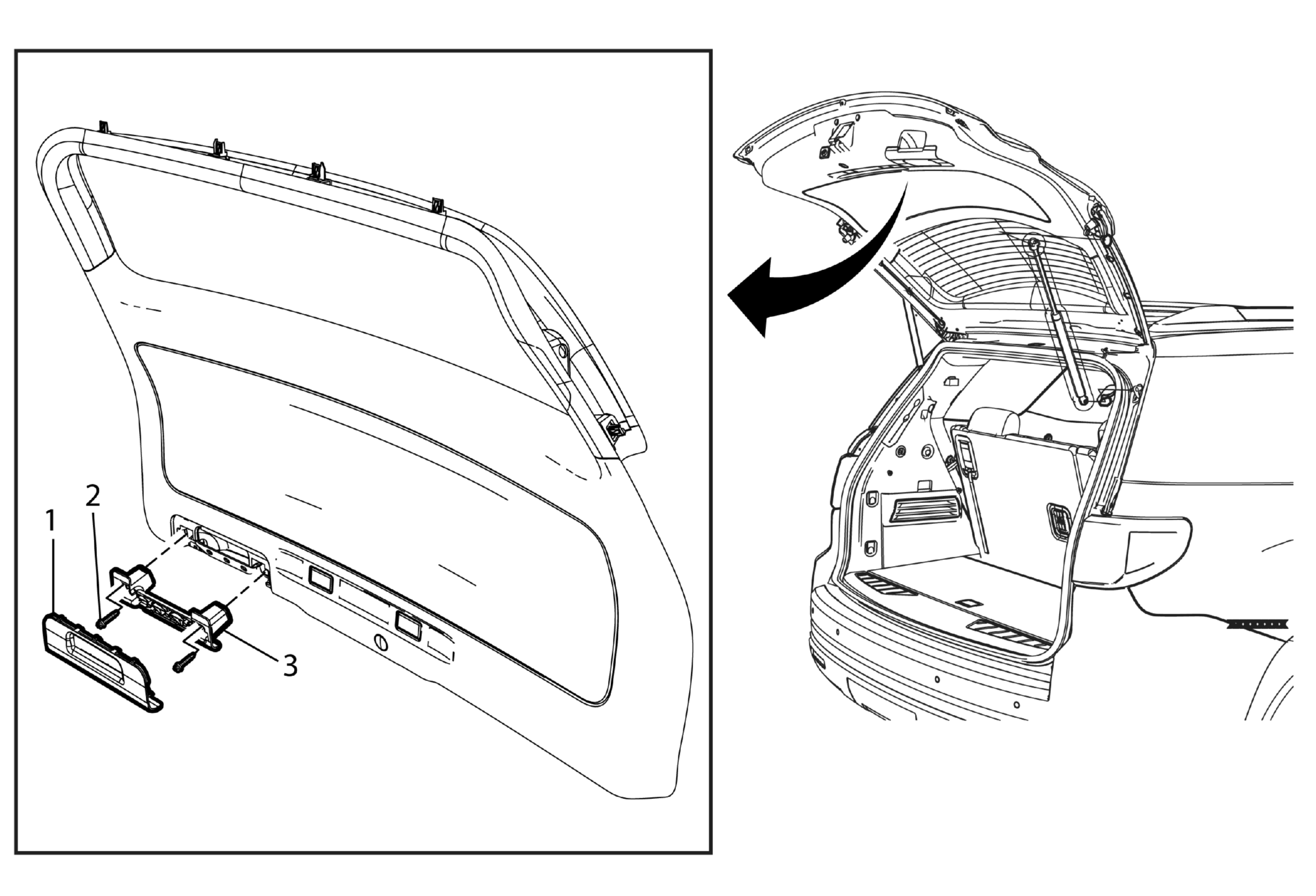

| Callout | Component Name |
|---|---|
| 1 | Liftgate Inside Pull Handle Cover |
| 2 | Liftgate Inside Pull Handle Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 3 | Liftgate Inside Pull Handle |
