Front Side Door Sill Trim Plate Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

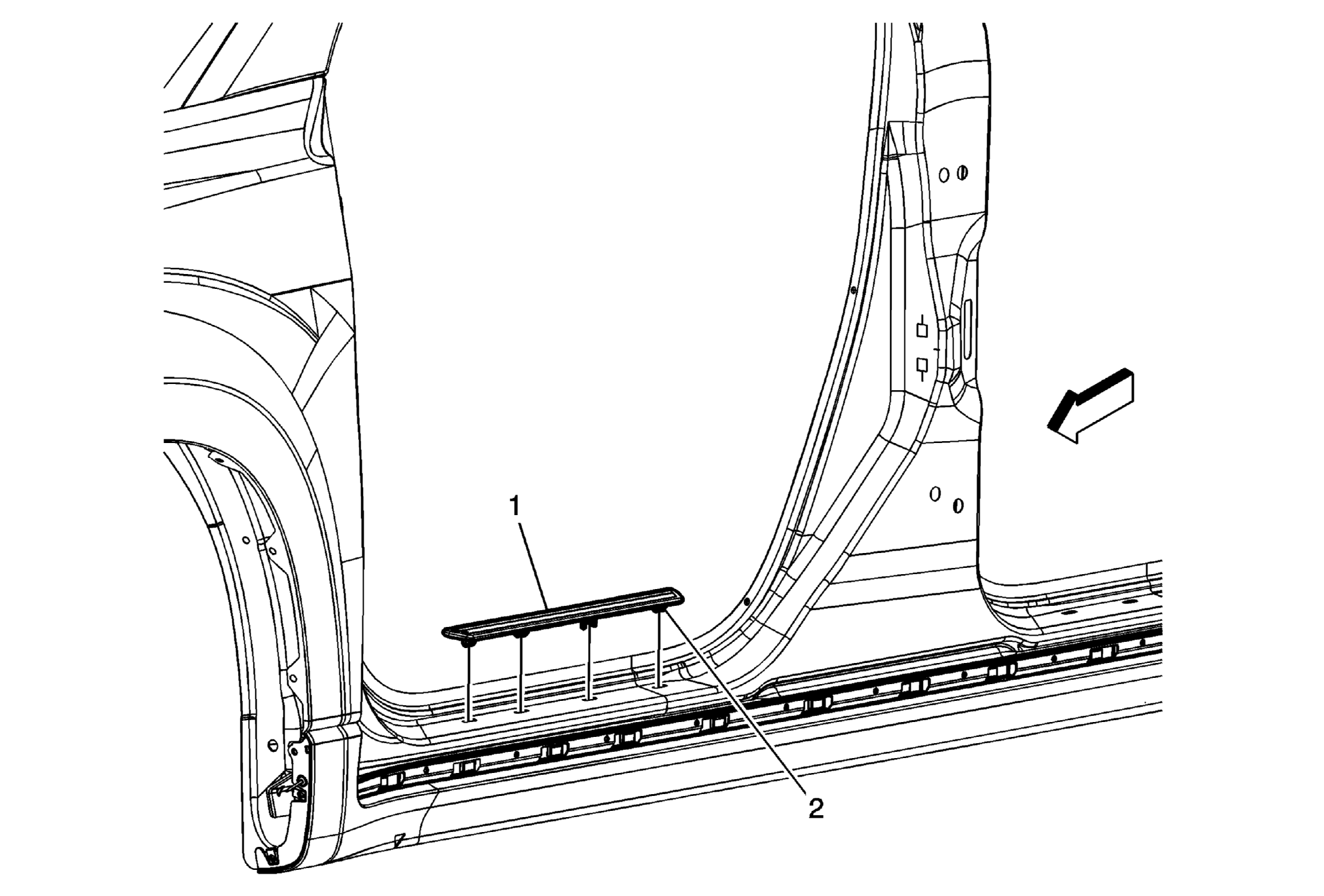

Fig 1: Front Side Door Sill Plate

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Side Door Sill Plate Assembly
2	Front Side Door Sill Plate Assembly Clip (Qty: 4) Procedure Use a flat-bladed plastic trim tool in order to release the clips and remove the sill plate. Disconnect lighting, if equipped.

Callout

Component Name

Front Side Door Sill Plate Assembly

Front Side Door Sill Plate Assembly Clip (Qty: 4)

Procedure

Use a flat-bladed plastic trim tool in order to release the clips and remove the sill plate.
Disconnect lighting, if equipped.
