Rear Seat Recliner Outer Finish Cover Replacement - Outboard (40%)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

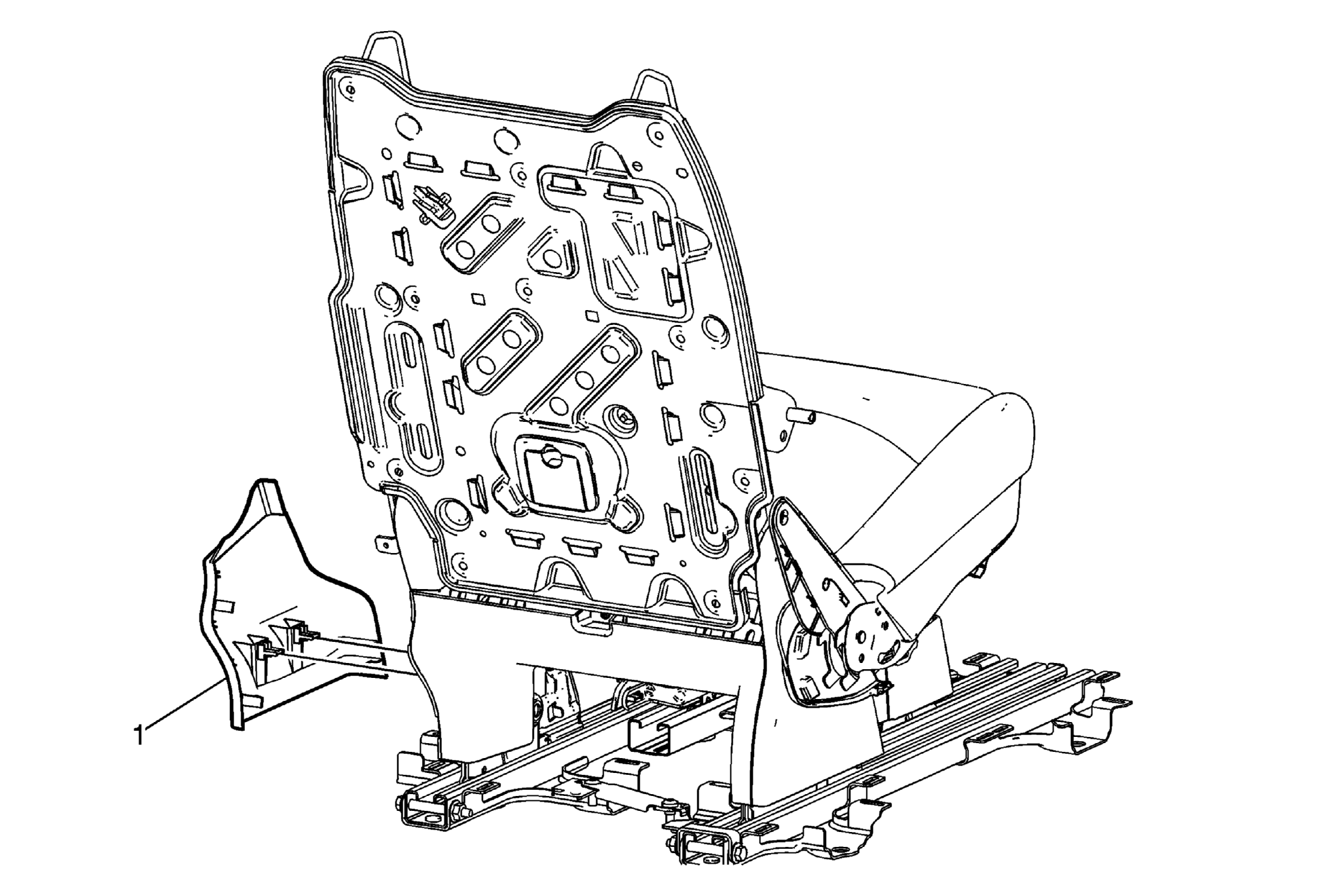

Fig 1: Rear Seat Recliner Outer Finish Cover - Outboard (With 40 Percent Seat)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Seat Recliner Outer Finish Cover Procedure Move the seat forward to the Smart Slide® E-Z entry position. Remove the rear seat recliner outer finish cover by pulling outward to disengage the retainers.
