Rear Seat Latch Release Strap Bezel Replacement - Outer
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

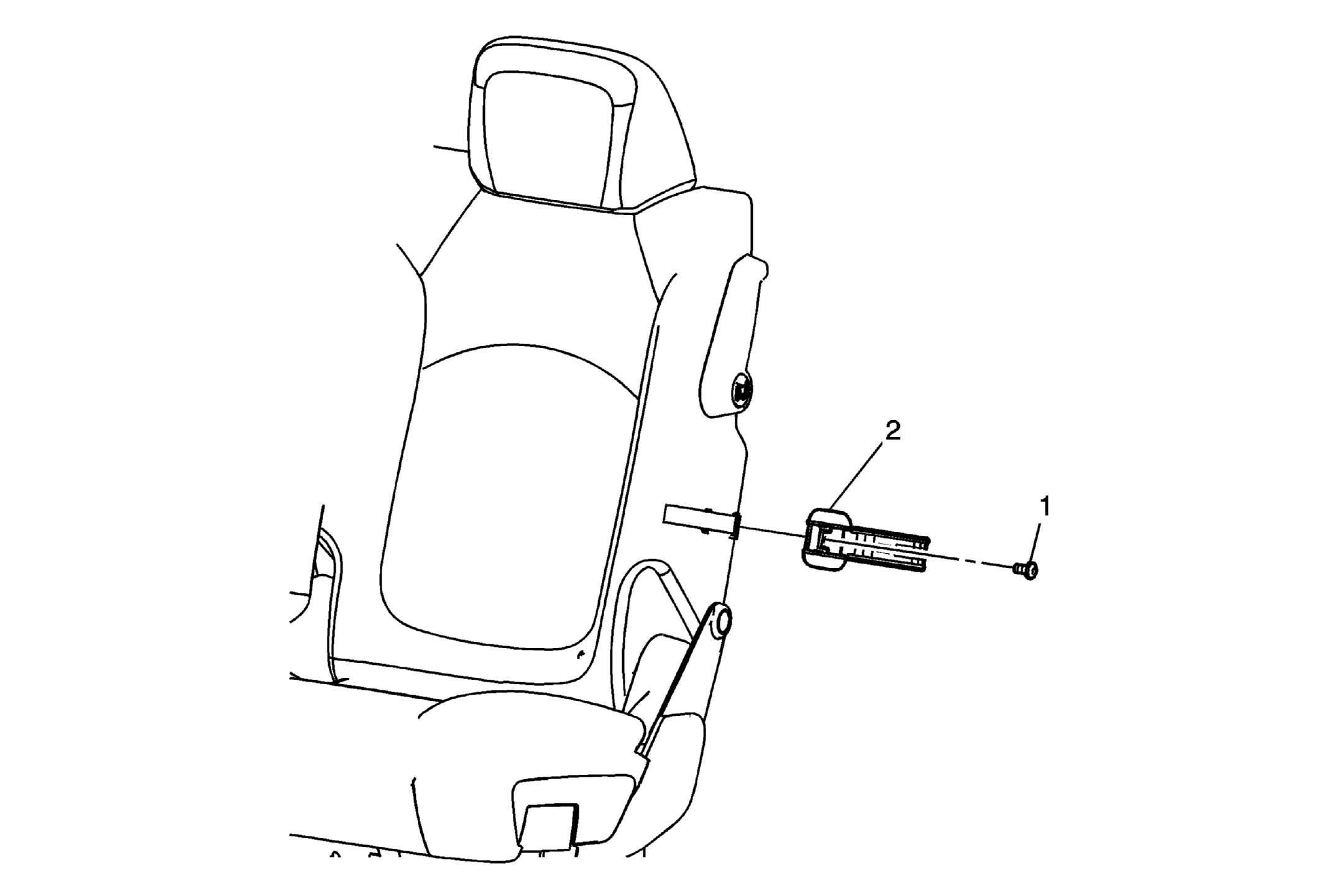

| Callout | Component Name |
|---|---|
| 1 | Rear Seat Latch Release Strap Bezel Screw
CAUTION:
Refer to Fastener Caution . TIP: Open the cover of the bezel to access the screws. Tighten 5 N.m (44 lb in) |
| 2 | Rear Seat Back Latch Release Strap Bezel TIP: Use a flat-bladed tool to spread the inner retainer tangs outward to release the bezel from the seat. |
