Rear Seat Latch Release Handle Replacement (40%)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

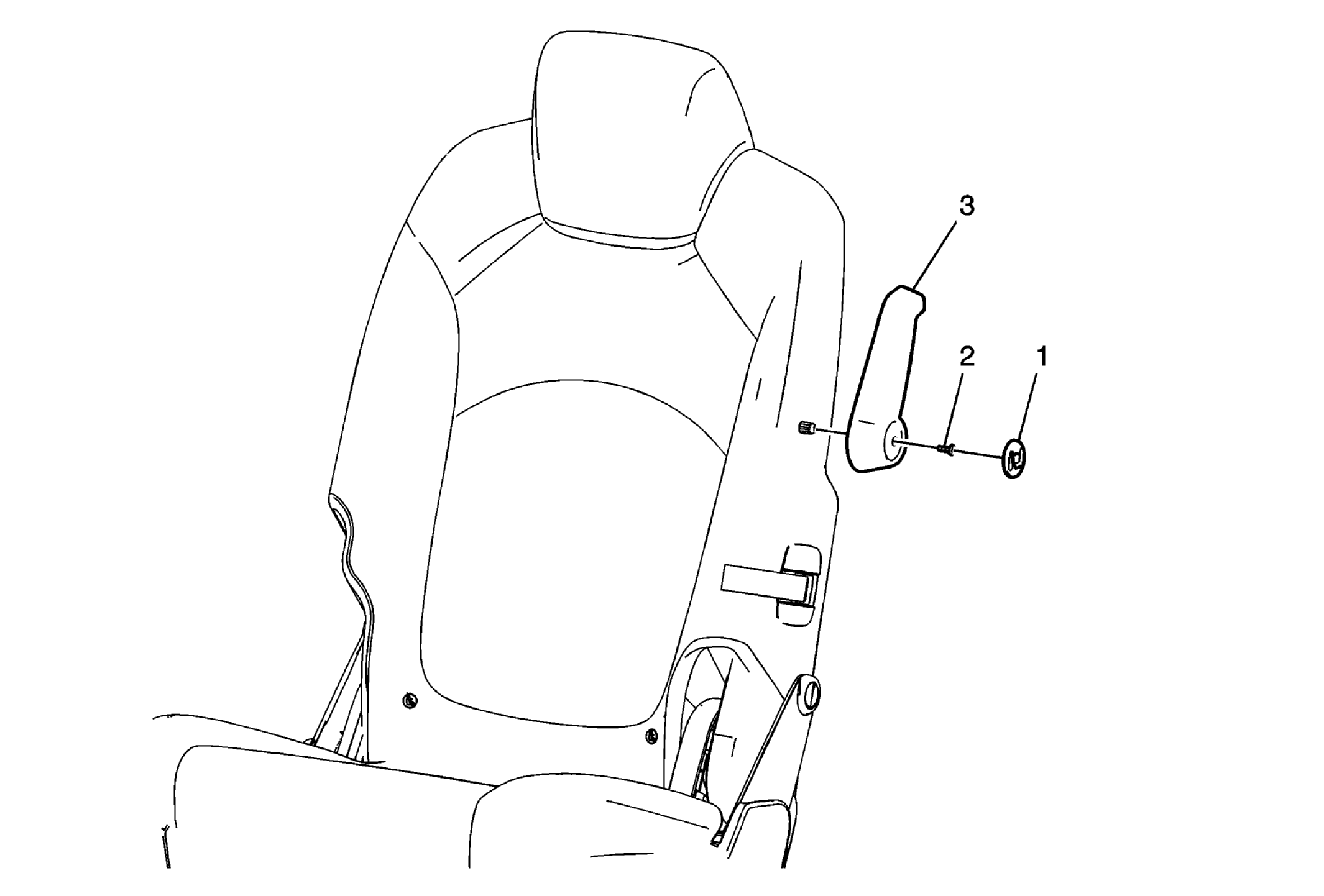

Fig 1: Rear Seat Latch Release Handle (With 40 Percent Seat)
GM1850523Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Seat Recliner Handle Bolt Cap
2 Rear Seat Screw
CAUTION:

Refer to Fastener Caution .


Tighten
4 N.m (35 lb in)
3 Rear Seat Latch Release Handle
