Rear Seat Frame Front Finish Cover Replacement - Upper (40%)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

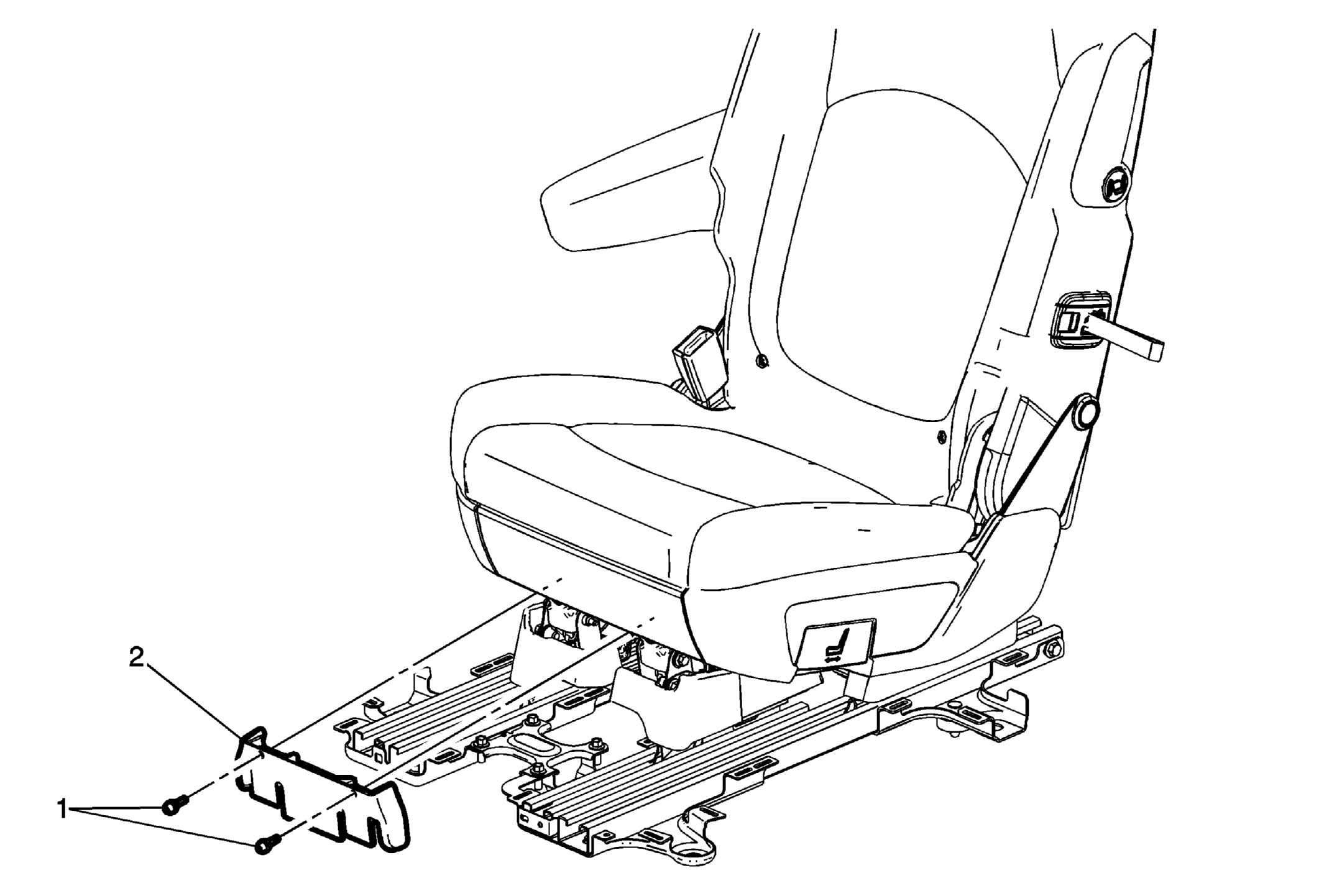

| Callout | Component Name |
|---|---|
| 1 | Rear Seat Frame Front Finish Cover Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 5 N.m (44 lb in) |
| 2 | Rear Seat Frame Front Finish Cover Procedure Spread the sides of the cover outward to disengage the cover from the seat cushion frame. |
