Rear Seat Frame Front Finish Cover Replacement - Lower (40%)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

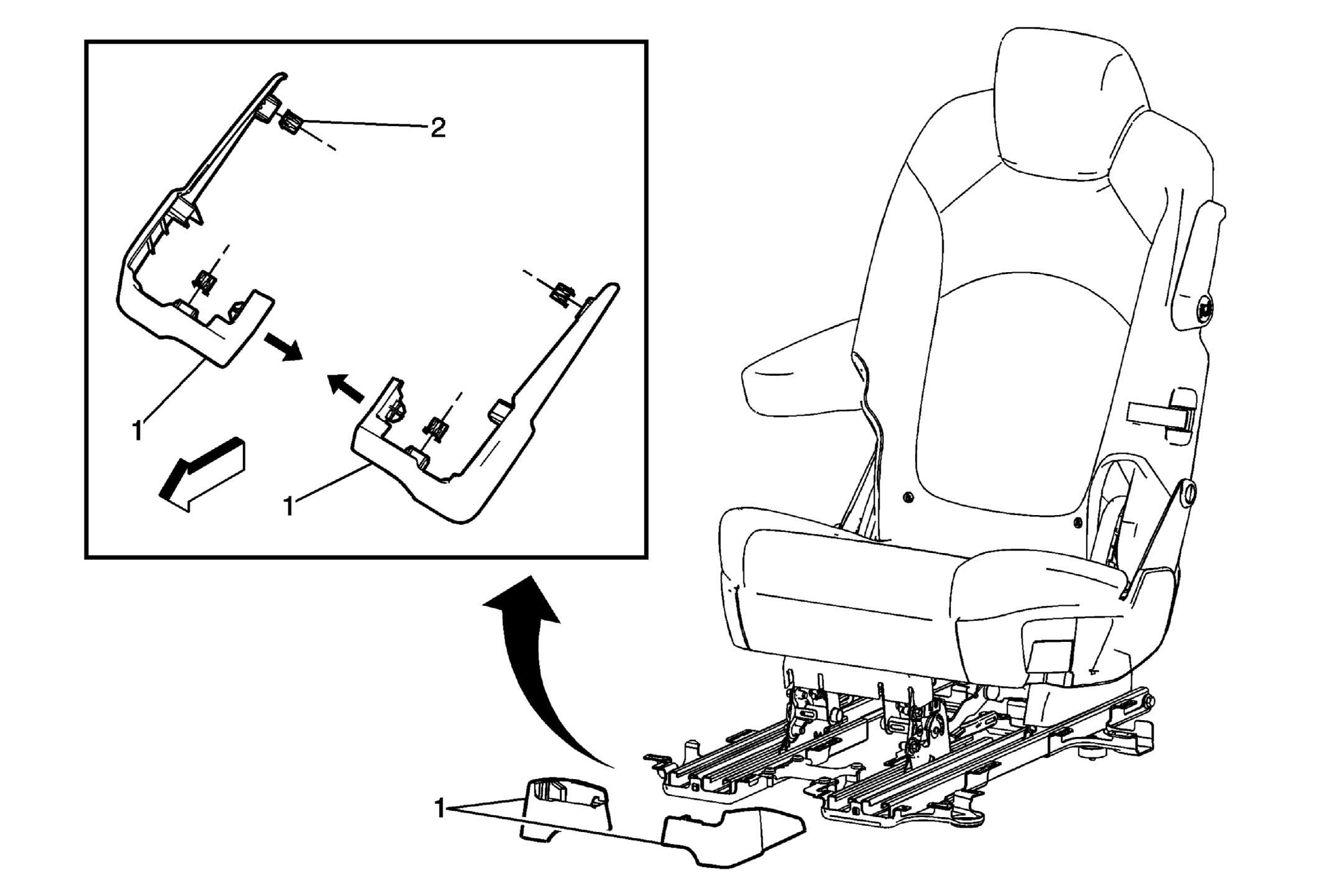

Fig 1: Identifying Rear Seat Frame Front Finish Cover - Lower (With 40 Percent Seat)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Seat Frame Front Finish Cover (Qty: 2) Procedure Pull outward at the rear edge of the cover to disengage the rear retainer clip. Pull the front inner corner of the cover inward to disengage the cover from the seat cushion frame. Pull forward to disengage the remaining retainer clip from the front edge of the cover.
2	Retainer Clip (Qty: 6)

Callout

Component Name

Rear Seat Frame Front Finish Cover (Qty: 2)

Procedure

Pull outward at the rear edge of the cover to disengage the rear retainer clip.
Pull the front inner corner of the cover inward to disengage the cover from the seat cushion frame.
Pull forward to disengage the remaining retainer clip from the front edge of the cover.

Retainer Clip (Qty: 6)
