Rear Seat Cushion Trim Panel Assembly Replacement - Inboard (40%)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

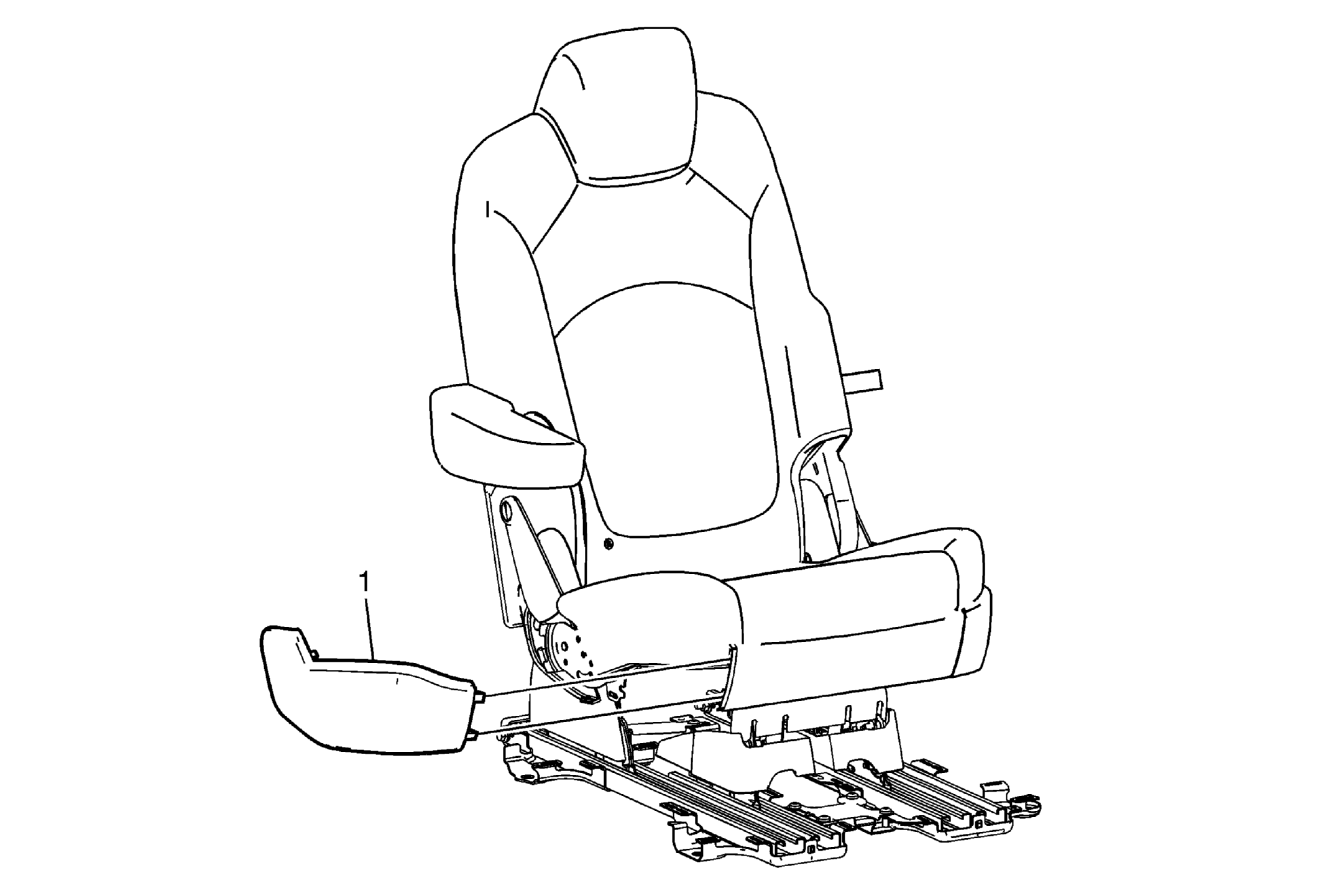

Fig 1: Rear Seat Cushion Trim Panel Assembly - Inboard (With 40 Percent Seat)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Seat Cushion Trim Panel Assembly Procedure Remove the trim panel by pulling the front edge outward and then sliding the trim panel rearward to release from the seat.
