Rear Seat Cushion Front Cover Replacement (40%)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

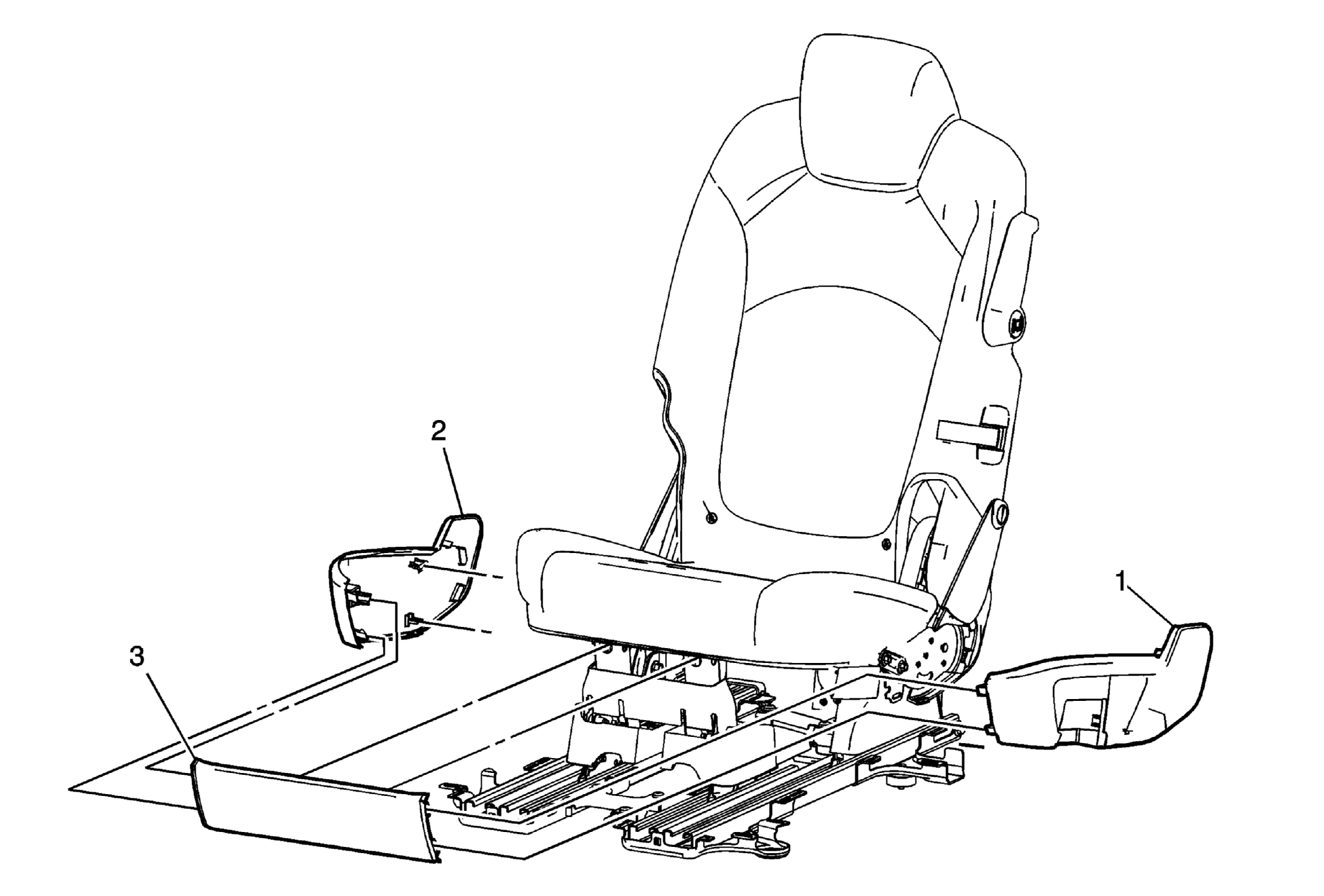

Fig 1: Rear Seat Cushion Front Cover (With 40 Percent Seat)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Seat Cushion Trim Panel Assembly Procedure Release the tabs and the front and rear of the panel and pull outward to disengage the retainer clips.
2	Rear Seat Cushion Trim Panel Assembly Procedure Release the tabs and the front and rear of the panel and pull outward to disengage the retainer clips.
3	Rear Seat Cushion Front Cover Procedure Pull forward and use a flat bladed tool to help disengage the retainer clips from the seat cushion frame.
