Rear Seat Belt Opening Bezel Replacement (60%)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

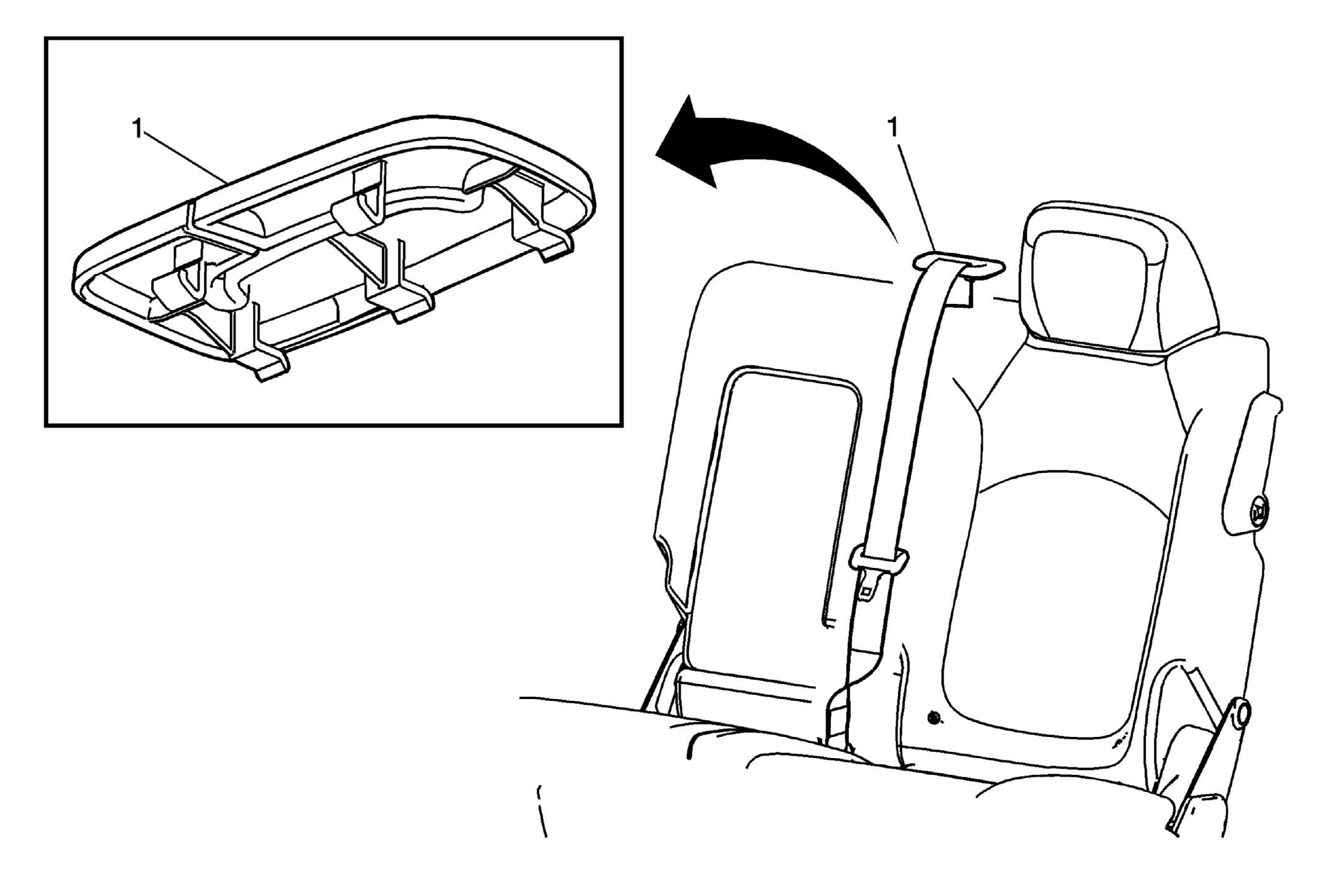

| Callout |
Component Name |
| 1 |
Rear Seat Guide Shoulder Belt Opening Bezel Procedure
- Use a small flat bladed tool to disengage the front retainers.
- Slide the bezel forward to disengage from the seat back cushion.
- Slide the seat belt through the opening in the bezel.
|
