Rear Seat Back Cushion Latch Release Handle Replacement (60%)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

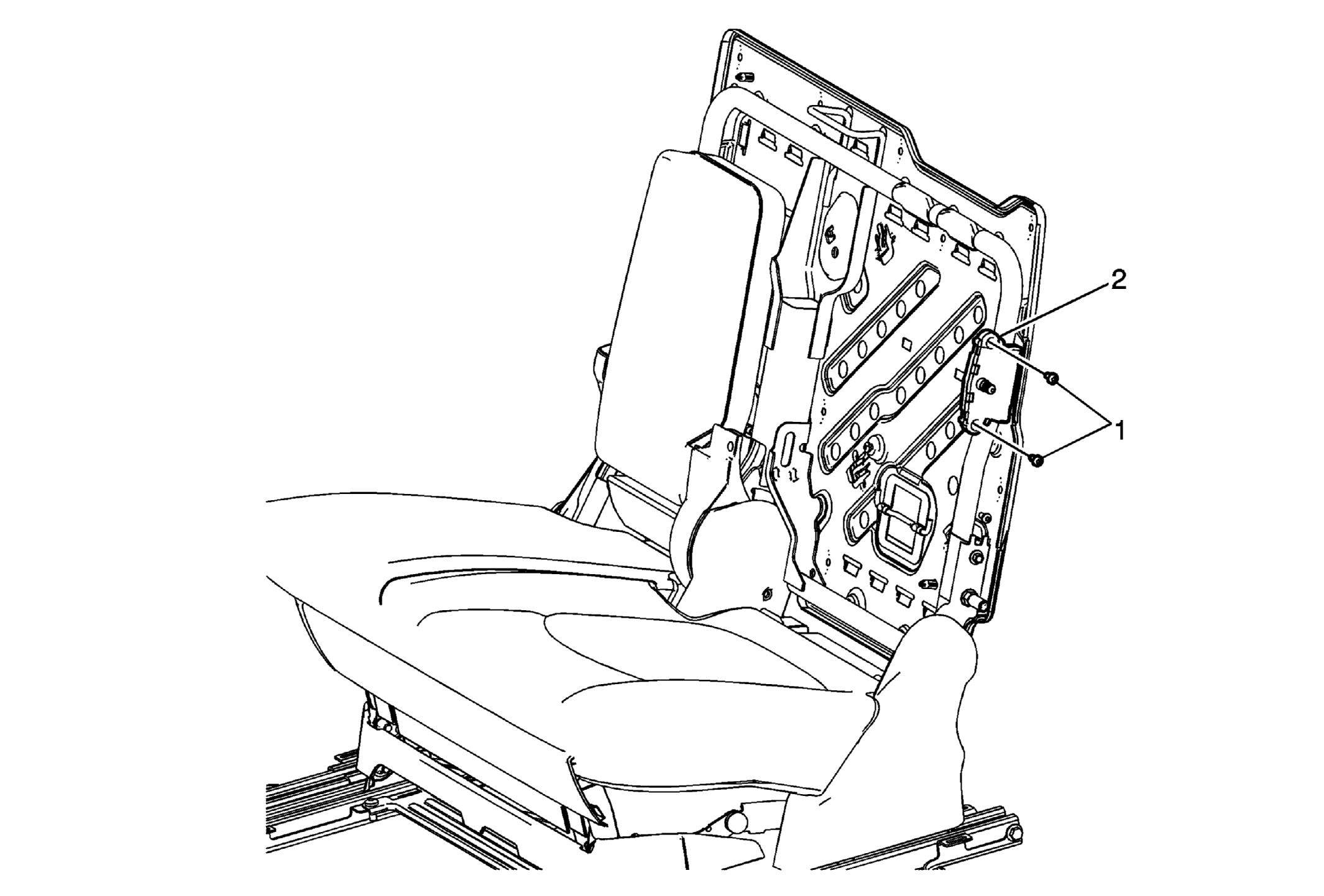

Fig 1: Rear Seat Back Cushion Latch Release Handle (With 60 Percent Seat)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear seat. Refer to Rear Seat Removal and Installation (60%) . Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (60%) .
1	Rear Seat Back Cushion Latch Release Handle Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
2	Rear Seat Back Cushion Latch Release Handle Assembly Procedure Disconnect the cable and note the cable routing for installation. The cable must be routed under the rear seat back stowage latch housing. The white area of the cable must fit into the seat back frame hooks.

Callout

Component Name

Preliminary Procedures

Remove the rear seat. Refer to Rear Seat Removal and Installation (60%) .
Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (60%) .

Rear Seat Back Cushion Latch Release Handle Screw (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
5 N.m (44 lb in)

Rear Seat Back Cushion Latch Release Handle Assembly

Procedure

Disconnect the cable and note the cable routing for installation.
The cable must be routed under the rear seat back stowage latch housing.
The white area of the cable must fit into the seat back frame hooks.
