Removal Procedure

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Seat Back Cushion Cover
    GM2546579Courtesy of GENERAL MOTORS COMPANY
  1. Pull the seat back cushion cover and pad back (1) with your thumb to locate and gain access to the clip tower.
    2. Fig 2: Seat Back Frame Clip
    GM2546581Courtesy of GENERAL MOTORS COMPANY
  2. Using a flat bladed tool (1) from one side of the seat, slide the tool inward and horizontally on the seat back frame until the clip is caught.
    3. Fig 3: Prying Seat Back Frame Clip
    GM2546588Courtesy of GENERAL MOTORS COMPANY
  3. Push the flat bladed tool (1) inward prying the clip out of the seat frame back, while gently pulling rearward at the top of the panel.

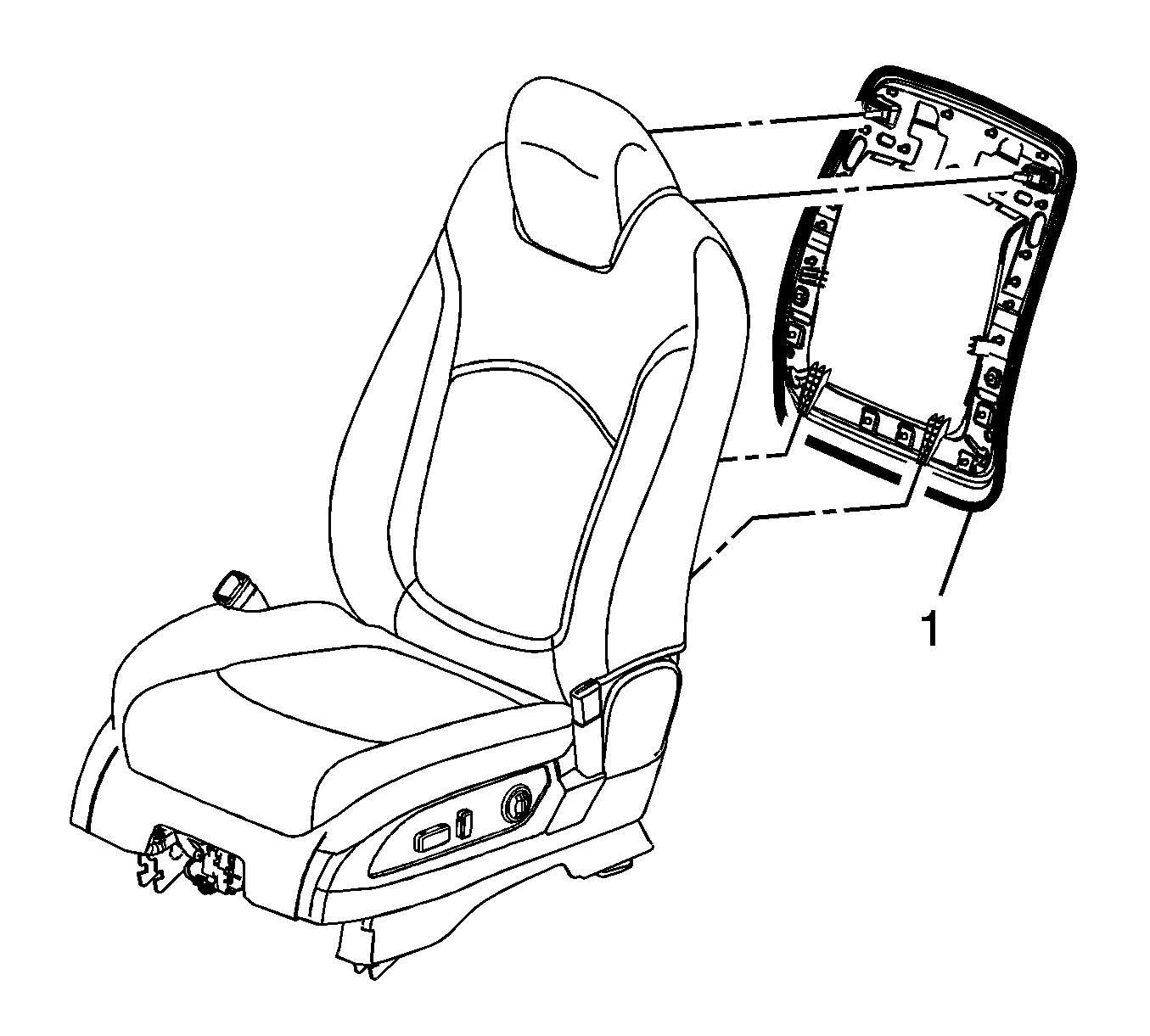

    4. Fig 4: Identifying Front Seat Back Cushion Finish Panel
    GM1828448Courtesy of GENERAL MOTORS COMPANY
  4. Release the other clip retainer on the opposite side.
  5. Lift the panel (1) upward to remove it from the seat.
